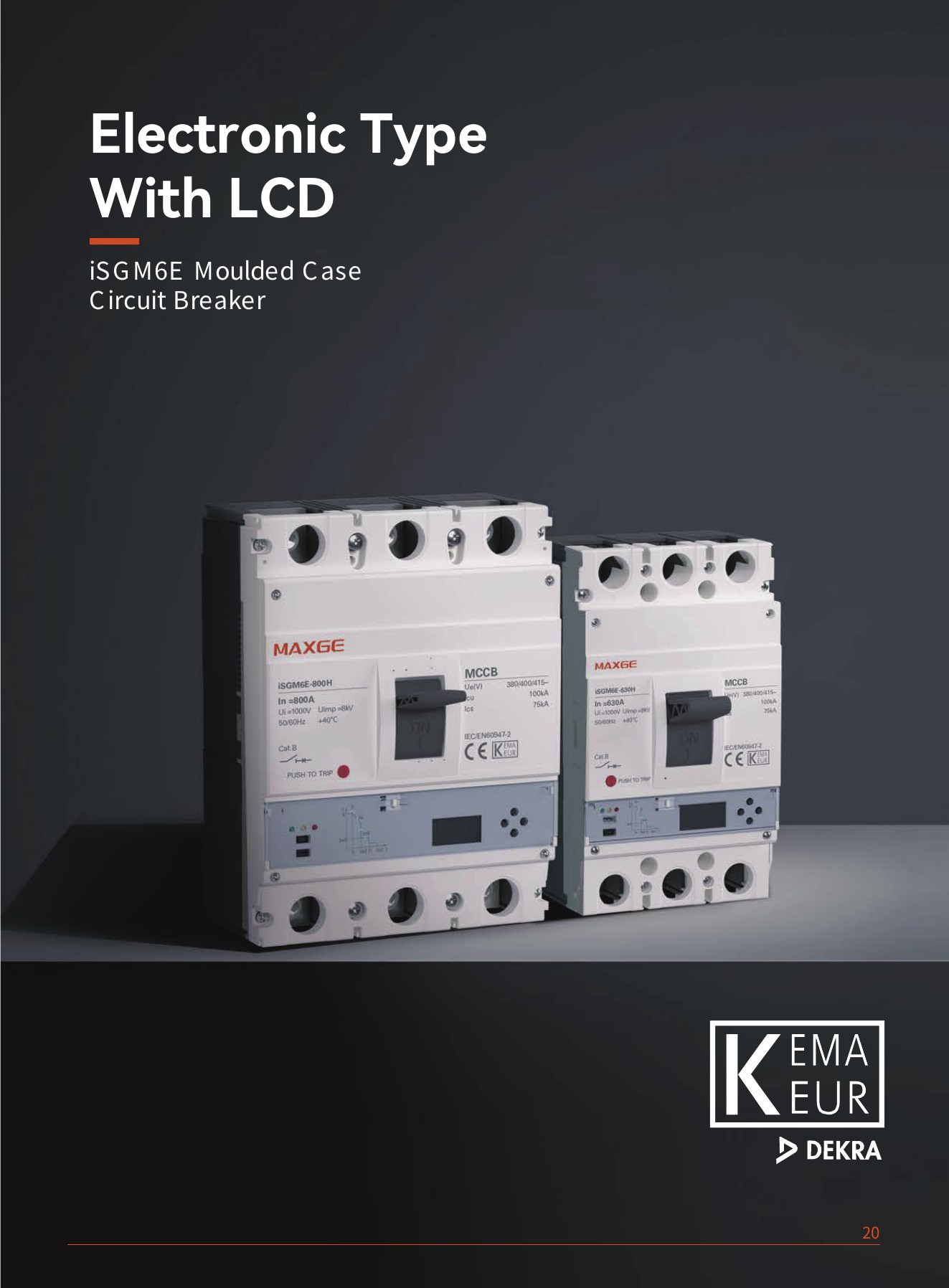

# iSGM6E-250 <!-- source-page:1 --> Electronic Type With LCD iSGM6E Moulded Case Circuit Breaker 20 <!-- source-page:2 --> Ratings And Specifications Frame Size Model Number of poles Rated current(A) In Standard Reference temperature Rated operational voltage Rated impluse withstand 8 (Icw) Breaking capacity level breaking capacity Icu(kA) breaking capacity Ics(kA) lcu=Ics(kA) Mechanical Endurance Electrical Endurance Accessories 21 M L 25 25 Electronic Type With LCD 250 iSGM6E-250 A 50 7000 Alarm switch(SD) Shunt tirp(MX) AC Motor Mechanism H 65 50 50 <!-- source-page:3 --> Product Dimension Drawing iSGM6E iSGM6E Frame Size Length Width Height Length Width Height 23 Overload Operation TEST DC12V BACK OK USB In=1600A iSGM6E Dimensions mm(L×W×H) Electronic Type With LCD Overload Operation TEST DC12V BACK OK USB In=1600A 250 <!-- source-page:4 --> Setting Parameters Electronic Type With LCD Frame Size iSGM6E-250A Rated current In(A) 125 250 160 200 Ir(A) Long Delay Current Setting 50-125A in steps of 1A 63-160A in steps of 1A 80-200A in steps of 1A 100-250A in steps of 1A tr(S) Long Delay Time 12-150sec in steps of 1 sec+OFF Isd(A) Short Circuit Protection Of Low Level Faults 100-1500A in steps of 1A 126-1920A in steps of 1A 160-2400A in steps of 1A 200-3000A in steps of 1A tsd (S) short time 0.06-1sec in steps of 0.01 sec+OFF Ii(A) Short Circuit Protection Of High level Faults 200-1750A in steps of 1A 252-2240A in steps of 1A 320-2800A in steps of 1A + OFF 400-3500A in steps of 1A + OFF + OFF + OFF Ip(A) Pre Trip Alarm Setting Multiple 35-125A in steps of 1A 44.1-160A in steps of 1A 56-200A in steps of 1A 70-250A in steps of 1A For 4p Ig(A) Ground Fault Pickup Current 25-125A in steps of 1A 32-160A in steps of 1A 40-200A in steps of 1A + OFF 50-250A in steps of 1A + OFF + OFF + OFF For 4p tg(S) Ground Fault Pickup Time 0.4-1sec in steps of 0.1sec <!-- source-page:5 --> MCCB With Spreader Link Dimensions Front connection Note:All dimensions are in mm SGM6/6s/6sm/6E-250A 3 POLES & 4 POLES 142 100.5 139 107 73 42 35 42 42 42 66.5 35 35 35 35 35 6* 9 8* 9 26 165 22 9 24 6.5 24 6.5 165 22 9 126 126 144 144 41 5 35 35 35 SGM6/6s/6sm-250A(H ) 3 POLES & 4 POLES 35 35 35 42 42 35 139 142 110 79,4 35 35 42 42 107 73 26 6* 9 8* 9 246,5 246,5 165 144 126 165 229 229 41 35 35 35 5
