# EPBR-40L Series

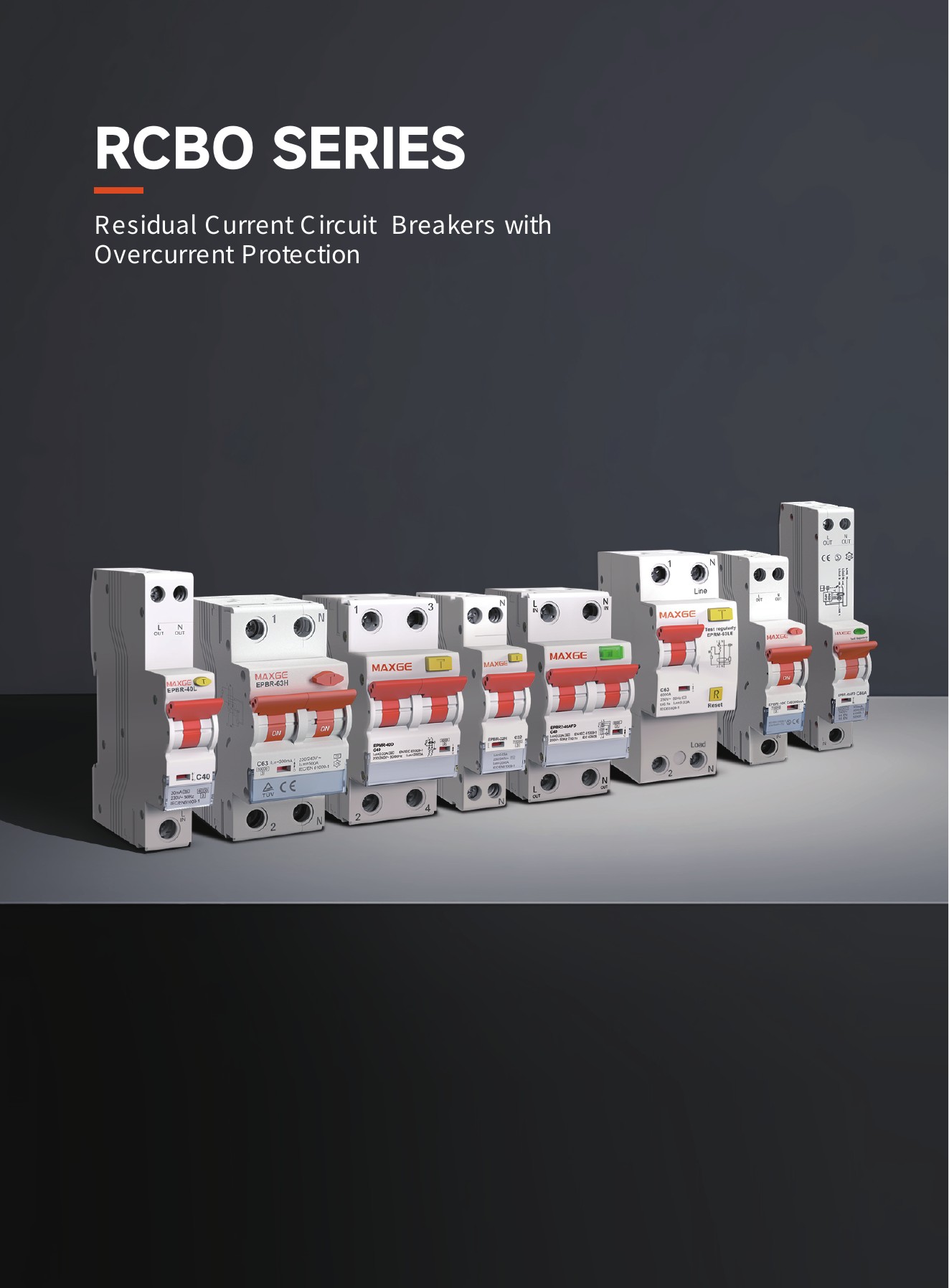

RCBO SERIES Residual Current Circuit Breakers with Overcurrent Protection

Products Overview of Residual Current Protective Devices

Product name

Product range

Product picture

Standard

Number of poles

Rated current(A) In

Rated voltage(V)

Rated residual current(mA)

Rated conditional short-circuit current(kA)

Tripping curve

Residual current operating characteristic

Catalogue page NO.

RCBO

EPBR-40L

IEC/EN 61009-1

1P+N

Electrical characteristics

6~40

AC 230/240

10,30,100,300

B,C

AC,A

22-24

EPBR-40L Series Residual Current Circuit Breakers with Overcurrent Protection Standard EN/IEC61009-1 Rated conditional short-circuit current(kA) 6 Rated current(A),ln 6,10,13,16,20,25,32,40 Number of poles 1P+N(Switched Neutral) Rated sensitivity currents(mA),IΔn 10,30,100,300 Tripping curve B,C Rated residual non-operating current 0.5XIΔn Rated impulse withstand voltage Uimp(kV) 4 Rated voltage(V) AC 230/240 Ambient temperature (°C) -25~+40,Max.95%humidity Residual current off time ≤0.1s Ground fault Electronic Type of trip Thermal-magnetic Over current Electrical endurance 4000 Mechanical endurance 10000 Terminal capacity 10mm2 flexible / 16mm2 rigid Protection degree IP20 Installation 35mm DIN rail Certification

EPBR-40L

EPBR-40L Series Residual Current Circuit Breakers with Overcurrent Protection Type AC Packing unit Type A Rated current(A) IΔn B curve C curve B curve C curve EPBR-40L/C6/10 EPBR-40L/C6/10-A EPBR-40L/B6/10 EPBR-40L/B6/10-A 6 10 EPBR-40L/C10/10 EPBR-40L/C10/10-A EPBR-40L/B10/10 EPBR-40L/B10/10-A 13 EPBR-40L/C13/10 EPBR-40L/C13/10-A EPBR-40L/B13/10 EPBR-40L/B13/10-A 16 EPBR-40L/C16/10 EPBR-40L/C16/10-A EPBR-40L/B16/10 EPBR-40L/B16/10-A 10mA 20 EPBR-40L/C20/10 EPBR-40L/C20/10-A EPBR-40L/B20/10 EPBR-40L/B20/10-A 25 EPBR-40L/C25/10 EPBR-40L/C25/10-A EPBR-40L/B25/10 EPBR-40L/B25/10-A 32 EPBR-40L/C32/10 EPBR-40L/C32/10-A EPBR-40L/B32/10 EPBR-40L/B32/10-A EPBR-40L/C40/10 EPBR-40L/C40/10-A EPBR-40L/B40/10 EPBR-40L/B40/10-A 40 EPBR-40L/C6/30 EPBR-40L/C6/30-A EPBR-40L/B6/30 EPBR-40L/B6/30-A 6 EPBR-40L/C10/30 EPBR-40L/C10/30-A EPBR-40L/B10/30 EPBR-40L/B10/30-A 10 EPBR-40L/C13/30 EPBR-40L/C13/30-A EPBR-40L/B13/30 EPBR-40L/B13/30-A 13 EPBR-40L/C16/30 EPBR-40L/C16/30-A EPBR-40L/B16/30 EPBR-40L/B16/30-A 16 30mA EPBR-40L/C20/30 EPBR-40L/C20/30-A EPBR-40L/B20/30 EPBR-40L/B20/30-A 20 Type AC EPBR-40L/C25/30 EPBR-40L/C25/30-A EPBR-40L/B25/30 EPBR-40L/B25/30-A 25 EPBR-40L/C32/30 EPBR-40L/C32/30-A EPBR-40L/B32/30 EPBR-40L/B32/30-A 32 EPBR-40L/C40/30 EPBR-40L/C40/30-A EPBR-40L/B40/30 EPBR-40L/B40/30-A 40 1 EPBR-40L/C6/100 EPBR-40L/C6/100-A EPBR-40L/B6/100 EPBR-40L/B6/100-A 6 EPBR-40L/C10/100 EPBR-40L/C10/100-A EPBR-40L/B10/100 EPBR-40L/B10/100-A 10 EPBR-40L/C13/100 EPBR-40L/C13/100-A EPBR-40L/B13/100 EPBR-40L/B13/100-A 13 EPBR-40L/C16/100 EPBR-40L/C16/100-A EPBR-40L/B16/100 EPBR-40L/B16/100-A 16 100mA EPBR-40L/C20/100 EPBR-40L/C20/100-A EPBR-40L/B20/100 EPBR-40L/B20/100-A 20 EPBR-40L/C25/100 EPBR-40L/C25/100-A EPBR-40L/B25/100 EPBR-40L/B25/100-A 25 EPBR-40L/C32/100 EPBR-40L/C32/100-A EPBR-40L/B32/100 EPBR-40L/B32/100-A 32 EPBR-40L/C40/100 EPBR-40L/C40/100-A EPBR-40L/B40/100 EPBR-40L/B40/100-A 40 EPBR-40L/C6/300 EPBR-40L/C6/300-A EPBR-40L/B6/300 EPBR-40L/B6/300-A 6 Type A EPBR-40L/C10/300 EPBR-40L/C10/300-A EPBR-40L/B10/300 EPBR-40L/B10/300-A 10 EPBR-40L/C13/300 EPBR-40L/C13/300-A EPBR-40L/B13/300 EPBR-40L/B13/300-A 13 EPBR-40L/C16/300 EPBR-40L/C16/300-A EPBR-40L/B16/300 EPBR-40L/B16/300-A 16 300mA EPBR-40L/C20/300 EPBR-40L/C20/300-A EPBR-40L/B20/300 EPBR-40L/B20/300-A 20 EPBR-40L/C25/300 EPBR-40L/C25/300-A EPBR-40L/B25/300 EPBR-40L/B25/300-A 25 EPBR-40L/C32/300 EPBR-40L/C32/300-A EPBR-40L/B32/300 EPBR-40L/B32/300-A 32 EPBR-40L/C40/300 EPBR-40L/C40/300-A EPBR-40L/B40/300 EPBR-40L/B40/300-A 40

EPBR-40L Series Residual Current Circuit Breakers with Overcurrent Protection Curves

Breaking time of residual current Max.breaking time In(A) IΔn(A) IΔn 2 IΔn 5 IΔn 5-500A 6-40 0.01,0.03,0.1,0.3 0.1s 0.08s 0.04s 0.04s Wiring (The suitable conductors should be used for connection,see table below for relative parameters) Cross section area s(mm2) Tightening torque(N.m) Rated current In (A) 1 6 1.5 10 1.5 13 2.5 16-20 6 25 32 40 Types Both RCCBs and RCBOs are devided into types depending on the operating function: Type AC : For which tripping is ensured for residual sinusoidal alternating currents, whether suddenly applied or slowly rising. Type A : For which tripping is ensued for residual sinusoidal alternating currents and residual pulsating direct currents, whether suddenly applied or slowly rising. Tripping sensitivity data RCD with a rated residual current of maximum 30mA are used for personnel,material and fire protection, as well as for protection against direct contact. RCD with a rated residual current of maximum 300mA are used as preventative fire protection in case of insulation faults. RCD with a rated residual current of 100mA co-ordinated with the earth system according to the formula IΔn<50/R, to provide protection again indirect contacts. Overall and mounting dimensions

M5 2.0 M4 1.2 4 10

EPBR-40L
