# SGB2 Series

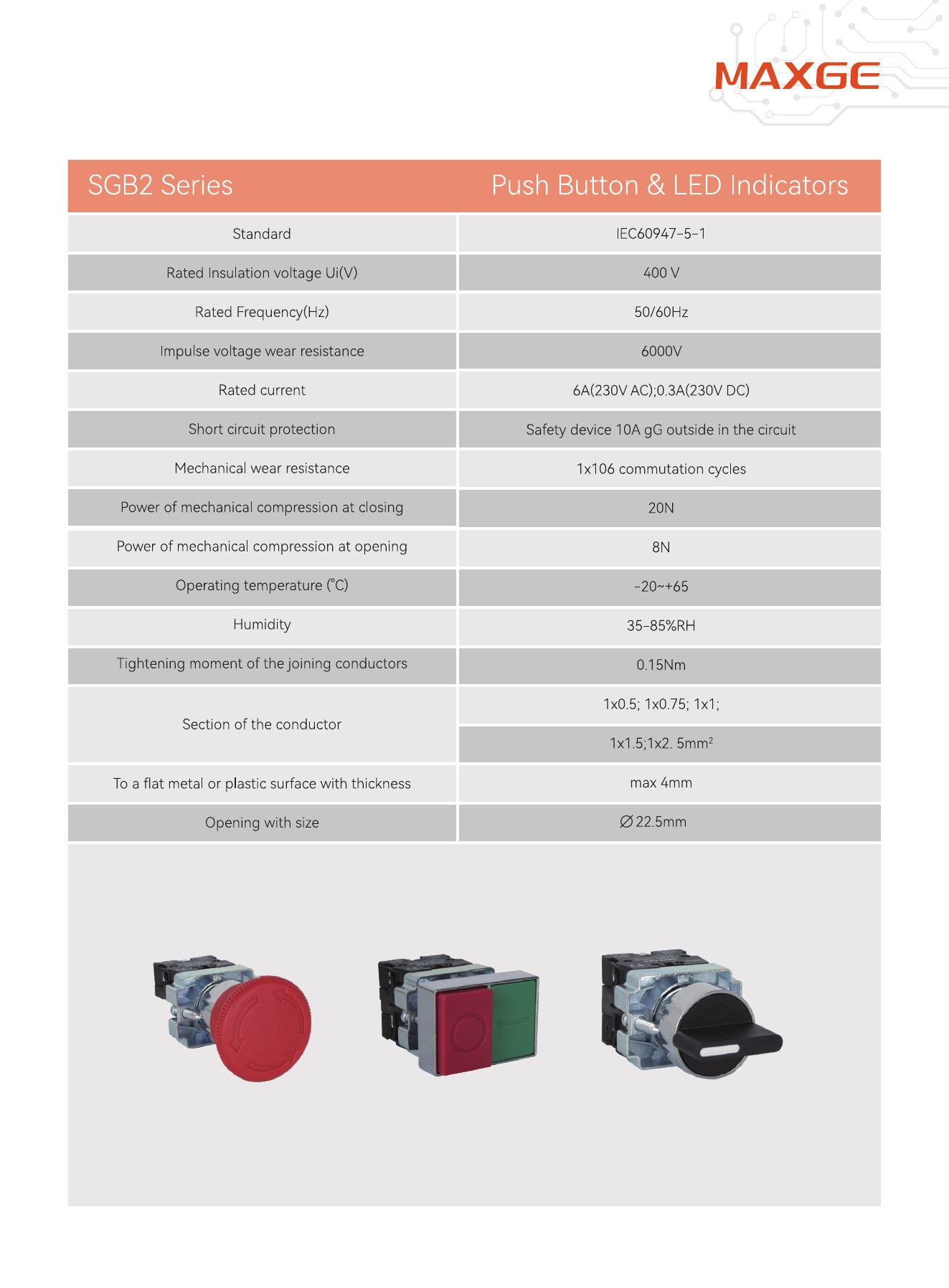

MAXGE SGB2 Series Push Button & LED Indicators Standard IEC60947-5-1 Rated Insulation voltage Ui(V) 400V Rated Frequency(Hz) 50/60Hz Impulse voltage wear resistance 6000V Rated current 6A(230VAC)；0.3A(230VDC) Short circuit protection Safety device 10A gG outside in the circuit Mechanical wear resistance 1x106 commutation cycles Power of mechanical compression at closing 20N Power of mechanical compression at opening 8N Operating temperature (C) -20~+65 Humidity 35-85%RH Tightening moment of the joining conductors 0.15Nm 1x0.5；1x0.75；1x1； Section of the conductor 1x1.5；1x2.5mm² To a flat metal or plastic surface with thickness max 4mm Opening with size 22.5mm

MAXGE SGB2 Series Push Button Picture Outline Color Type of contacts Model 1NO SGB2-EA11 1NO SGB2-EA21 1NO SGB2-EA31 1NO SGB2-EA51 1NO SGB2-EA61 oNel 1NC SGB2-EA42 1NO SGB2-BA11 1NO SGB2-BA21 12 1NO SGB2-BA31 C White 1NO SGB2-BA51 Black 1NO SGB2-BA61 Green 1NC SGB2-BA42 Yellow 1NO SGB2-EP11 Blue 1NO SGB2-EP21 Red 1NO SGB2-EP31 1NO SGB2-EP51 1NO SGB2-EP61 ToNel 1NC SGB2-EP42 1NO SGB2-BP11 15 1NO SGB2-BP21 1NO SGB2-BP31 1NO SGB2-BP51 1NO SGB2-BP61 1NC SGB2-BP42 Picture Outline N° of position Type of contacts Model VVVVVVVVVVVVVVVVVVVV 1NO SGB2-ED21 2° 1NO+1NC SGB2-ED25 iNO 1NO SGB2-ED41 1NO+1NC SGB2-ED45 6Ne SGB2-ED33 SGB2-ED53 3° 2NO 27 SGB2-ED73 SGB2-ED83 1NO SGB2-EG21 1NO+1NC SGB2-EG25 8 OI 2° 1NO 1NO+1NC SGB2-EG G45 23 27 SGB2-EG33 3° 2NO SGB2-EG53 1NO SGB2-BD21 1NO+1NC SGB2-BD25 2 5 2° 1NO SGB2-BD41 1NO+1NC SGB2-BD45 SGB2-BD33 SGB2-BD53 2NO 27 3° SGB2-BD73 SGB2-BD83 1NO SGB2-BG21 2° 1NO+1NC SGB2-BG25 1NO SGB2-BG41 1NO+1NC SGB2-BG45 SGB2-BG33 23 27 3° 2NO SGB2-BG53

MAXGE SGB2 Series Push Button Picture Outline Description Type of contacts Model SGB2-ES442 Red spring reverse 1NC SGB2-ES542 "Mushroom " type SGB2-ES642 32 Green&Red double 1NO+1NC SGB2-EL8325 SGB2-EL9325 button L 15 61 White color SGB2-EW3161 Green color 1NO SGB2-EW3361 Yellow color SGB2-EW3561 Blue color SGB2-EW3661 19 61 Red color 1NC SGB2-EW3462 SGB2-BS442 Red spring reverse 1NC SGB2-BS542 "Mushroom " type SGB2-BS642 32 Green&Red double SGB2-BL8325 1NO+1NC button SGB2-BL9325 61 White color SGB2-BW3161 Green color 1NO SGB2-BW3361 Yellow color SGB2-BW3561 Blue color SGB2-BW3661 19 61 Red color 1NC SGB2-BW3462 Picture Outline Color Nof positions & Model Type of contacts SGB2-EK2765 中30.76 21.97 SGB2-EK2365 2position SGB2-EK2565 1NO+1NC S SGB2-EK2665 SGB2-EK2465 SGB2-EK3765 3position SGB2-EK3365 66.5x66.5 SGB2-EK3565 o White 1NO+1NC SGB2-EK3665 Black SGB2-EK3465 Green Yellow SGB2-BK2765 中30.76 Blue SGB2-BK2365 21.97 2°position 1NO+1NC SGB2-BK2565 SGB2-BK2665 SGB2-BK2465 SGB2-BK3765 3°position SGB2-BK3365 SGB2-BK3565 66.5x66.5 1NO+1NC SGB2-BK3665 SGB2-BK3465

MAXGE SGB2 &SGD22 Series LED indicators Picture Outline Color Description Model 中28 ○ White 8 A Black LED SGB2-EV61 SGB2-EV63 Green 220/240VAC SGB2-EV65 Yellow 50/60Hz 40+ Blue SGB2-EV66 SGB2-EV64 Red O Picture Outline Color Description Model 12VAC/DC SGD22-22D-W-22 24VAC/DC SGD22-22D-W-23 LED White 48VAC/DC SGD22-22D-W-25 110VAC/DC SGD22-22D-W-26 230VAC SGD22-22D-W-31 400VAC SGD22-22D-W-32 12VAC/DC SGD22-22D-G-22 24VAC/DC SGD22-22D-G-23 48VAC/DC SGD22-22D-G-25 LED Green 110VAC/DC SGD22-22D-G-26 230VAC/DC SGD22-22D-G-31 30 400VAC/DC SGD22-22D-G-32 12VAC/DC SGD22-22D-Y-22 24VAC/DC SGD22-22D-Y-23 LED Yellow 48VAC/DC SGD22-22D-Y-25 110VAC/DC SGD22-22D-Y-26 230VAC SGD22-22D-Y-31 400VAC SGD22-22D-Y-32 20 12VAC/DC SGD22-22D-B-22 24VAC/DC SGD22-22D-B-23 LED Blue 48VAC/DC SGD22-22D-B-25 110VAC/DC SGD22-22D-B-26 230VAC SGD22-22D-B-31 400VAC SGD22-22D-B-32 12VAC/DC SGD22-22D-R-22 24VAC/DC SGD22-22D-R-23 48VAC/DC SGD22-22D-R-25 LED Red 110VAC/DC SGD22-22D-R-26 230VAC SGD22-22D-R-31 400VAC SGD22-22D-R-32 30 色 12VAC/DC SGD22-22SM-R-22 24VAC/DC SGD22-22SM-R-23 48VAC/DC SGD22-22SM-R-25 (0))) LED Red 110VAC/DC SGD22-22SM-R-26 230VAC SGD22-22SM-R-31 400VAC SGD22-22SM-R-32 20

MAXGE Accessories Picture Type of contacts Description Model 1NO Base for SGB2 SGB2-NO 1NC Base for SGB2 SGB2-NC Picture Contact auxiliary Description Model 25x11 Brand frame for SGB2 LA800E-P08 25x18 Brand frame for SGB2 LA800E-P12 Picture Contact auxiliary Description Model oE EM 060 Alarm circle LA800E-P16 Picture Contact auxiliary Description Model o White LA800E-LW230 Green LA800E-LG230 220/240VAC Yellow LA800E-LY230 Blue LA800E-LB230 Red LA800E-LR230 o White LA800E-LW24 Green LA800E-LG24 Yellow LA800E-LY24 24VAC/DC Blue LA800E-LB24 Red LA800E-LR24
