# EPBOV

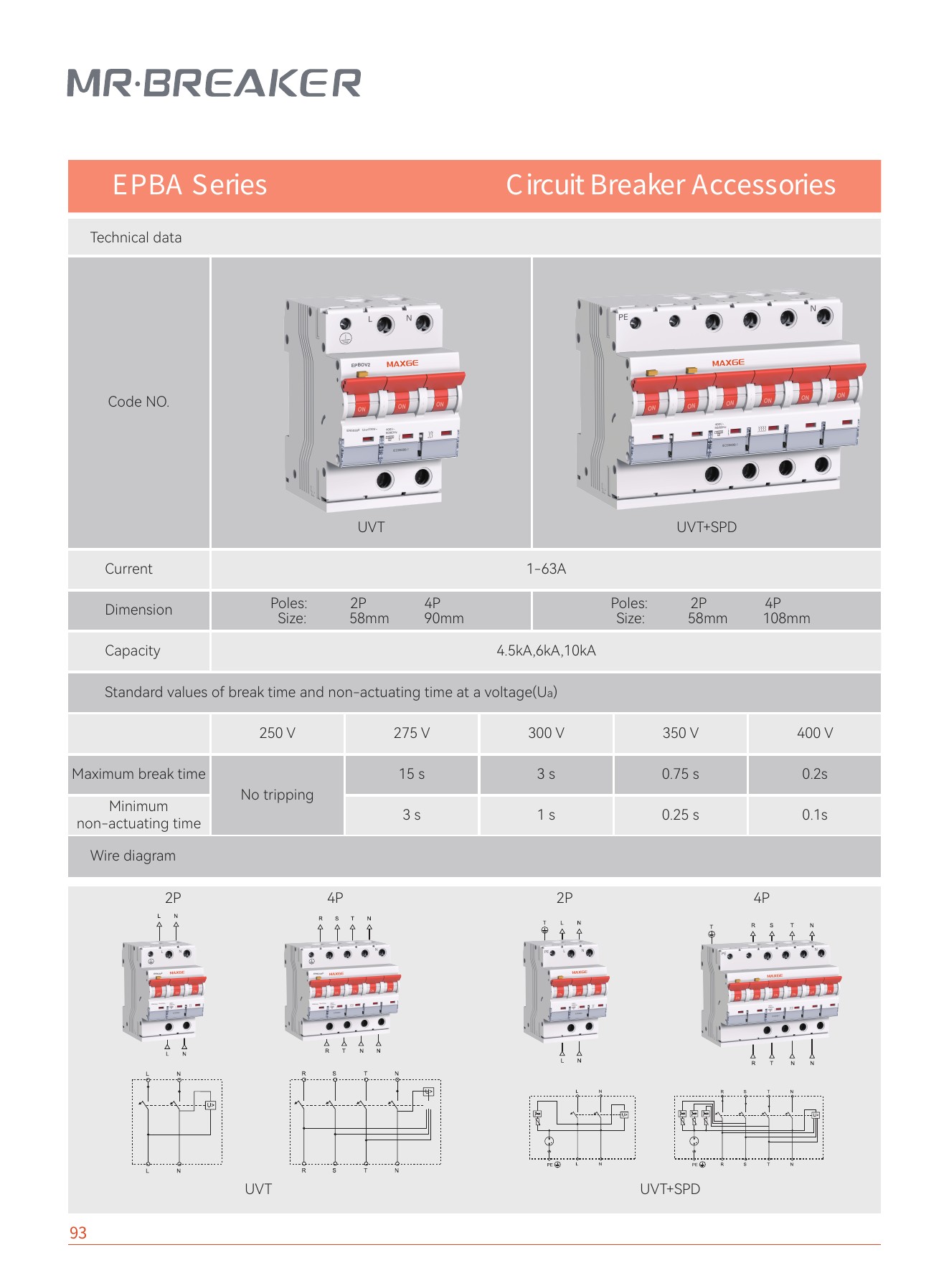

EPBA Series Circuit Breaker Accessories

2P 4P 2P 4P

EPBOV2 ON ON ON EN50550 Un=230V~

EPBOV4C ON ON ON ON ON ON ON ON ON ON ON ON ON ON EN50550 Un=230V~

UVT UVT+SPD

| Technical data |  |  |  |  |  |  |
| --- | --- | --- | --- | --- | --- | --- |
| Code NO. | EPBOV2 ON ON ON EN50550 Un=230V~ UVT |  |  | ON ON ON ON ON ON UVT+SPD |  |  |
| Current | 1-63A |  |  |  |  |  |
| Dimension | Poles: 2P 4P Size: 58mm 90mm |  |  | Poles: 2P 4P Size: 58mm 108mm |  |  |
| Capacity | 4.5kA,6kA,10kA |  |  |  |  |  |
| Standard values of break time and non-actuating time at a voltage(Ua) |  |  |  |  |  |  |
|  | 250 V | 275 V | 300 V |  | 350 V | 400 V |
| Maximum break time | No tripping | 15 s | 3 s |  | 0.75 s | 0.2s |
| Minimum non-actuating time |  | 3 s | 1 s |  | 0.25 s | 0.1s |
| Wire diagram |  |  |  |  |  |  |

Benefits

1.Brand 2.Type 3. Rated current 4. Tripping type 5. Rated voltage 6. Breaking capacity 7. Energy Limiting 8.Approval 9.Electrical wiring diagram 10.ON/OFFindication Attractive device design Well matched with RCCB EPR-2 Easily recognized, color-coded switching position Indication integrated in the handle.

ON ON ON ON ON ON ON

Well matched with lsolator EPI-R Auxiliary contacts can be added

Safety terminal: - easy wiring - protection degree IP20. Pozidriv and slot screw head. Torque up to 2.5 N.m.

ON ON

on the left side of the MCB

ON ON ON ON

MCB and RCCB can be connected with PIN type busbar both at the top and bottom terminals.with easy DIN-rail extraction.

ON ON ON

Ergonomic handle for user-friendly switching

MCB and RCCB can be connected with FORK type busbar both at the top and bottom terminals.with easy DIN-rail extraction.
