# SGC2-D Series

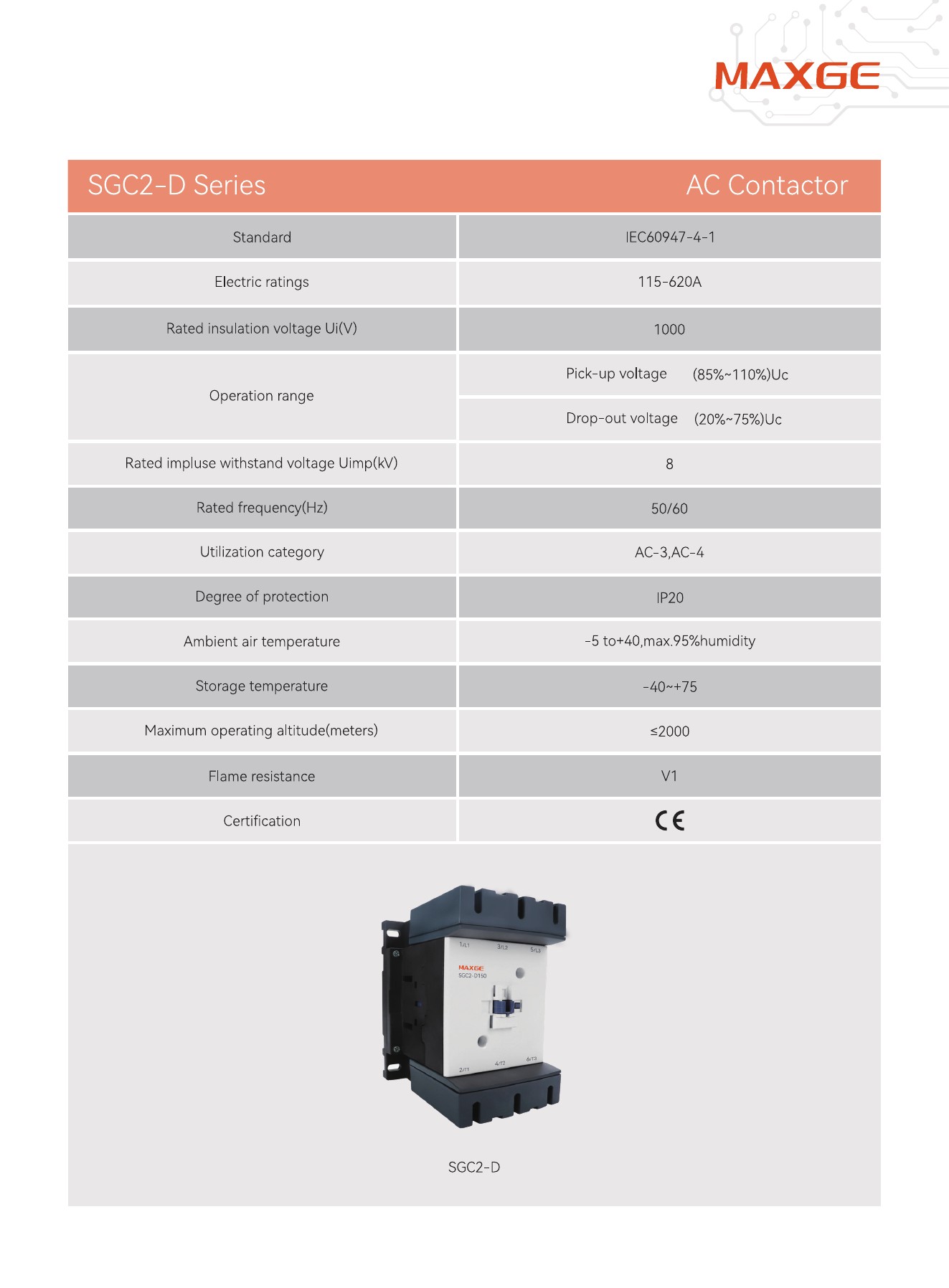

MAXGE SGC2-D Series AC Contactor Standard IEC60947-4-1 Electric ratings 115-620A Rated insulation voltage Ui(V) 1000 Pick-up voltage (85%~110%)Uc Operation range Drop-out voltage (20%~75%)Uc Rated impulse withstand voltage Uimp(kV) 8 Rated frequency(Hz) 50/60 Utilization category AC-3，AC-4 Degree of protection IP20 Ambient air temperature -5 to+40，max.95%humidity Storage temperature -40~+75 Maximum operating altitude(meters) ≤2000 Flame resistance V1 Certification CE 1/11 3/2 MAXGE SGC2-D150 6/T3 4/1 2/T SGC2-D

MAXGE SGC2-D Series AC Contactor SGC2-D lype 115 150 170 205 245 300 410 475 620 Number of poles 3，4 3.4 3，4 3.4 3.4 2.3.4 2.3.4 2，3，4 2，3，4 Current le(A) In AC-3 115 150 174 305 245 300 410 475 620 (Ues400V) In AC-1 200 200 200 275 315 400 500 700 900 Rated conventional 200 200 200 275 315 400 500 700 900 thermal current Ith(A) Rated making capacity(A) 1) Ims 10xln AC-3 or 12x In AC-4 Rated breaking capacity(A) 1ms 8xln AC-3 or 10 x In AC-4 220/230V 63 75 100 129 147 200 380/400V 100 132 160 200 250 335 415V 100 110 140 180 220 280 375 Rated operational 440V 100 110 140 180 220 280 375 power in category AC-3(kw) 500V 110 129 160 200 257 335 400 660/690V 100 110 140 180 220 280 355 450 1000V 90 100 100 147 160 185 335 425 Averageimpedance 0.6 0.6 0.6 0.32 0.30 0.28 0.24 0.20 0.12 per pole(mQ) Electrical life(X 103times) 1200 1200 1000 1000 800 800 800 800 800 Mechanical life(X 103times) 10000 10000 6000 6000 6000 6000 6000 6000 6000 Matching fuse model RT16-1 RT16 RT16 RT16 RT16-3 RT16-3 RT16-3 RT16-3 RT16-3 Tightening torque(N.m) 18 18 18 18 35 35 35 35 58 cable connection 0 pP 90° 10 0 0 00 00 0 0 作 d 03

MAXGE Accessories Auxiliary Contacts Auxiliary Contact Block Model Number of N Mounting contacts lype Y SGA1-DN11 Front 12021403 223041 1 SGA1-DN20 0 SGA1-DN02 2 SGA1-DN22 SGA1-DN13 SGA1-DN40 SGA1-DN04 SGA1-DN31 SGA8-DN11 22 Lateral 1 1 SGA8-DN20 2 0 Timer delay block Model Number of Range Time-delay type contacts SGA2-DT0 0.1-3s SGA2-DT2 0.1-30s Making time-delay SGA2-DT4 10-180s SGA2D72 1NO+1NC SGA3-DR0 0.1-3s SGA3-DR2 0.1-30s Breaking time-delay SGA3-DR4 10-180s Mechanical interlock Model Matched AC Contactor SGML-0932 SGC1-D09 to SGC1-D32 SGML-4095 SGC1-D40 to SGC1-D95 Spare coils Model Voltage Rated Matched (VAC) frequency(Hz) AC Contactor 24(B7) 36(C7) 48(E7) 110(F7) SGX1-D2 127(G7) 220(M7) SGC1-D SGX1-D4 50/60Hz 230(P7) 09~95 SGX1-D6 240(U7) M 15 0V 380/400(Q7) 415(N7) 440(R7) 480(T7)
