# SGDBi-F MM(metal cover and metel base)

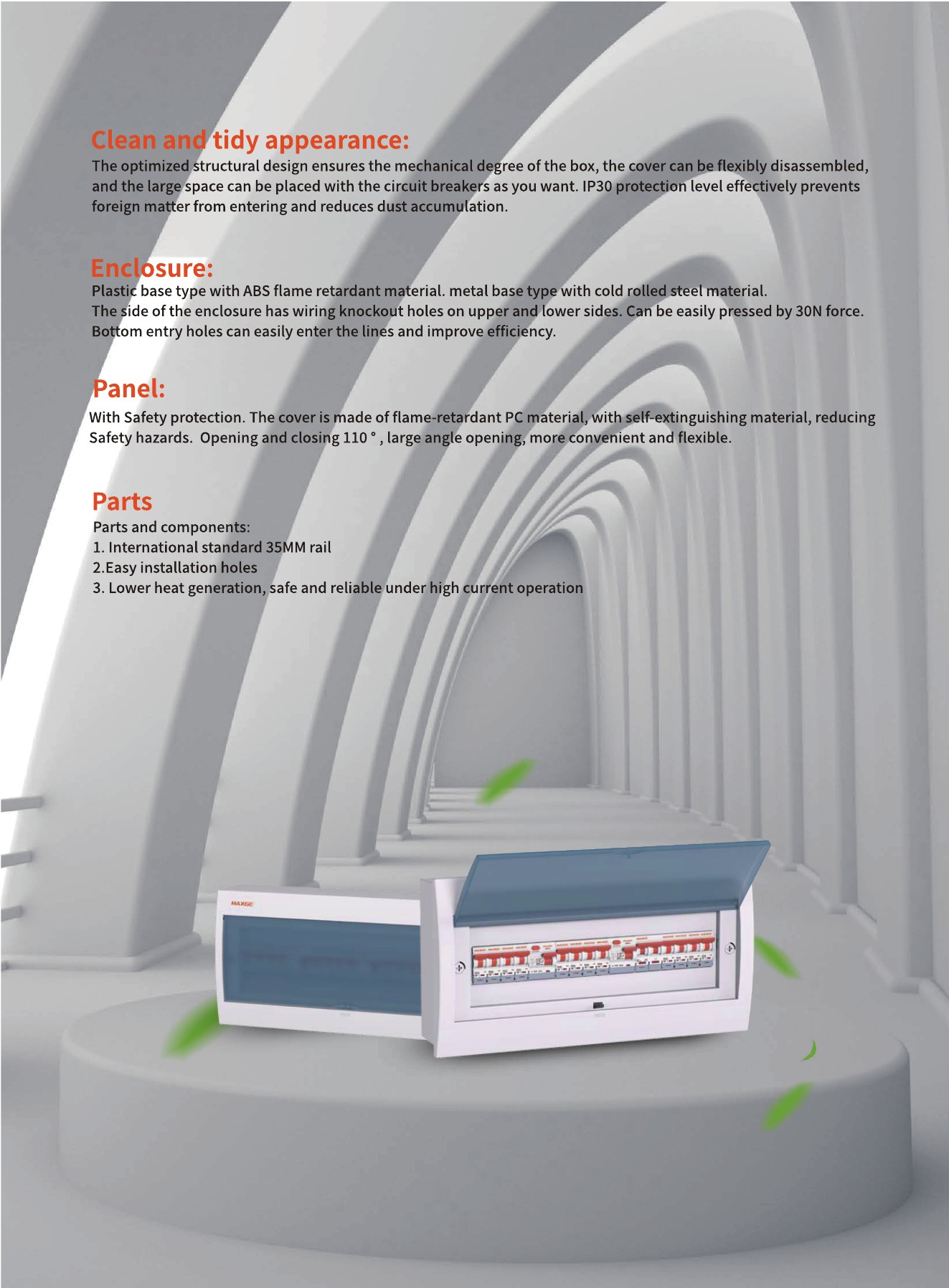

Clean and tidy appearance： The optimized structural design ensures the mechanical degree of the box， the cover can be flexibly disassembled， and the large space can be placed with the circuit breakers as you want. IP30 protection level effectively prevents foreign matter from entering and reduces dust accumulation. Enclosure： Plastic base type with ABS flame retardant material. metal base type with cold rolled steel material. The side of the enclosure has wiring knockout holes on upper and lower sides. Can be easily pressed by 30N force. Bottom entry holes can easily enter the lines and improve efficiency. Panel： With Safety protection. The cover is made of flame-retardant PC material， with self-extinguishing material， reducing Safety hazards. Opening and closing 110°， large angle opening， more convenient and flexible. Parts Parts and components： 1.International standard 35MM rail 2.Easy installation holes 3. Lower heat generation， safe and reliable under high current operation MAXGE

MAXGE SGDBi-S/F： Series DistributionBox Technicaldata Standard IEC60439-3 Approval CE Modules(No.) 6，8，12，18，24，36，54 Row 1 row for 6， 8， 12，18 modules 2 rows for 24， 36 modules 3 rows for 54 modules Rated current ln(A) 63，100，125A Color White RAL 9003 and Grey RAL 7035 Color of door Blue，White Mounting type Surface，Flush Degree of protection IP30 Material PS or ABS for body， PC for door Fire resistance 650°C/30s Ambient temperature(°C) -5-+40，max.95%humidity Storage temperature(C) -40~+75°C 中中中中中 - CC -1-

MAXGE SGDBi-FMM(metal cover and metel base) Number Metalbase Rated Current In(A) Color of door ofmodule (Flush type) 8 SGDBi-F08MM 63/100/125A Blue/White 12 SGDBi-F12MM 63/100/125A Blue/White 18 SGDBi-F18MM 63/100/125A Blue/White 24 SGDBi-F24MM 63/100/125A Blue/White 36 SGDBi-F36MM 63/100/125A Blue/White .1 10 6 9 8 1.MetalBase 2.Plastic Strip 3.Metal Brass TerminalBlock 4.Screw 5.Front Cover Plate 6.MetalFront Cover 7.PCWindow 8.Din Rail 9.Din Rail Support 10.Hinge Screw Metal Base Dimension Dimension L1/L2 W1/W2 H1/H2 m 8ways 210/251 115/226 103/105 H2 12ways 280/321 115/226 103/105 H1 18ways 388/429 115/226 103/105 W2 24ways 280/321 115X2/317 103/105.7 W1 L1 36ways 388/429 115X2/317 103/105.7 L2 -5-
