# EPC1 Series

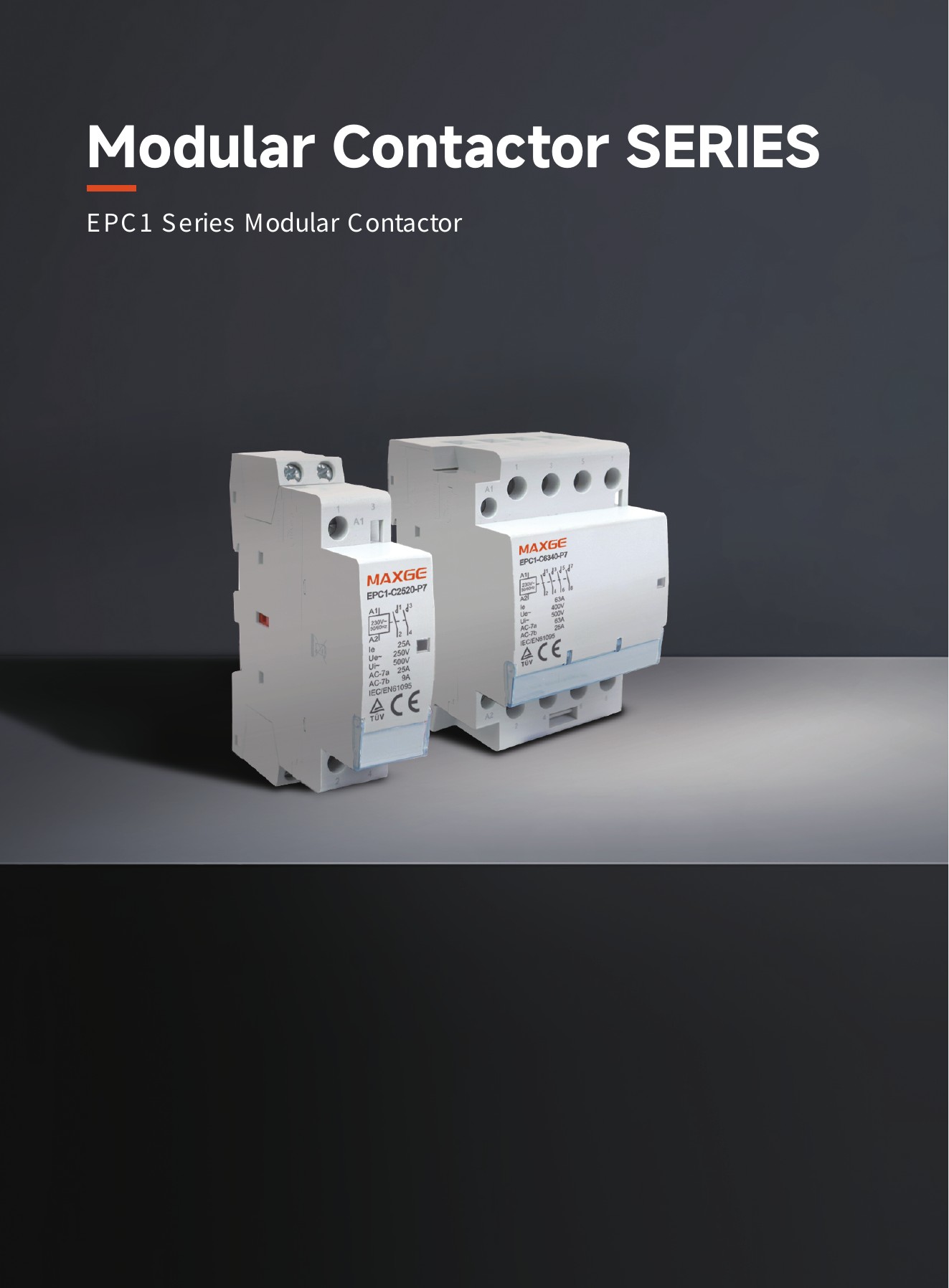

Modular Contactor SERIES EPC1 Series Modular Contactor

EPC1 Series Modular Contactor

| Standard | EN/IEC 61095 |
| --- | --- |
| Maximum power | AC1220/230VAC:20A4.5KW(EPC1-20) 25A16KW(EPC1-25) AC-1/AC-7a 380/400VAC: 63A 40KW(EPC1-63) AC-3/AC-7b 380/400VAC:25A 15KW(EPC1-63) 4KW(EPC1-25) |
| Main contacts terminal capacity | 1.5-6mm2(EPC1-10/16/20/25A) 6-16mm2(EPC1-40/63A) |
| Coil contact A1,A2 terminal capacity | 0.75-2.5mm2 |
| Electric endurance | ≥100,000 |
| Mechanical endurance | ≥5000,000 |
| Protection degree | IP20 |
| Terminal tightening torque(N.m) | 0.8-3.5 |
| Ambient temperature (°C) | -5~+60,max.95% humidity |
| Storage temperature(°C) | -40~+75 |
| Connection capacity(mm2) | 1.5-16 |
| Certification |  |
| EPC1-2P(10A-25A) EPC1-2P(32A-63A) EPC1-4P(10A-25A) EPC1-4P(32A-63A) |  |

EPC1 Series Modular Contactor Ac-7b/230V Code NO. Control voltage (Vac) Rated current In(A) Rated control power in (kW) Contact position Ac-7b/Ac-1 Ac-7a/Ac-1 Ac-7a/230V EPC1-10-11 1NO+1NC 2NO EPC1-10-20 4 10 0.75 2 2NC EPC1-10-02 EPC1-16-11 1NO+1NC 2NO EPC1-16-20 6 16 1.0 3.2 2NC EPC1-16-02 EPC1-20-11 1NO+1NC 2NO EPC1-20-20 7 20 1.2 4 2NC EPC1-20-02 EPC1-25-11 1NO+1NC 2NO EPC1-25-20 9 25 1.4 5 EPC1-2P(10A-25A) 2NC EPC1-25-02 EPC1-10-22 2NO+2NC 3NO+INC EPC1-10-31 240 4 10 2.2 6.2 4NO EPC1-10-40 4NC EPC1-10-04 EPC1-16-22 2NO+2NC 3NO+INC EPC1-16-31 6 16 3 10 4NO EPC1-16-40 4NC EPC1-16-04 EPC1-20-22 2NO+2NC 3NO+INC EPC1-20-31 7 20 3.5 13 4NO EPC1-20-40 4NC EPC1-20-04 EPC1-25-22 2NO+2NC 3NO+INC EPC1-25-31 9 25 4 15 4NO EPC1-25-40 EPC1-4P(10A-25A) 4NC EPC1-25-04 Overall and mounting dimensions

EPC1 Series Modular Contactor Ac-7b/400V Code NO. Control voltage (Vac) Rated current In(A) Rated control power in (kW) Contact position Ac-7b/Ac-1 Ac-7a/Ac-1 Ac-7a/400V EPC1-32-11 1NO+1NC 2NO EPC1-32-20 12 32 2 6.5 2NC EPC1-32-02 EPC1-40-11 1NO+1NC 2NO EPC1-40-20 15 40 2.5 8.5 2NC EPC1-40-02 EPC1-63-11 1NO+1NC 2NO EPC1-63-20 25 63 4 13 EPC1-2P(32A-63A) 2NC EPC1-63-02 EPC1-32-22 2NO+2NC 240 3NO+INC EPC1-32-31 12 32 6.5 21 4NO EPC1-32-40 4NC EPC1-32-04 EPC1-40-22 2NO+2NC 3NO+INC EPC1-40-31 15 40 7.5 26 4NO EPC1-40-40 4NC EPC1-40-04 EPC1-63-22 2NO+2NC 3NO+INC EPC1-63-31 25 63 13 40 4NO EPC1-63-40 EPC1-4P(32A-63A) 4NC EPC1-63-04 Overall and mounting dimensions

Refer to other coil voltage listed as followings 660 600 500 480 440 415 380 240 230 220 127 110 48 36 24 Coil voltage(V) Y5 - S5 T5 R5 N5 Q5 U5 P5 M5 G5 F5 E5 C5 B5 50Hz - B6 - T6 R6 N6 Q6 U6 P6 M6 G6 F6 E6 - B6 60Hz - - - T7 R7 N7 Q7 U7 P7 M7 G7 F7 E7 C7 B7 50/60Hz
