# SGB-OUPA

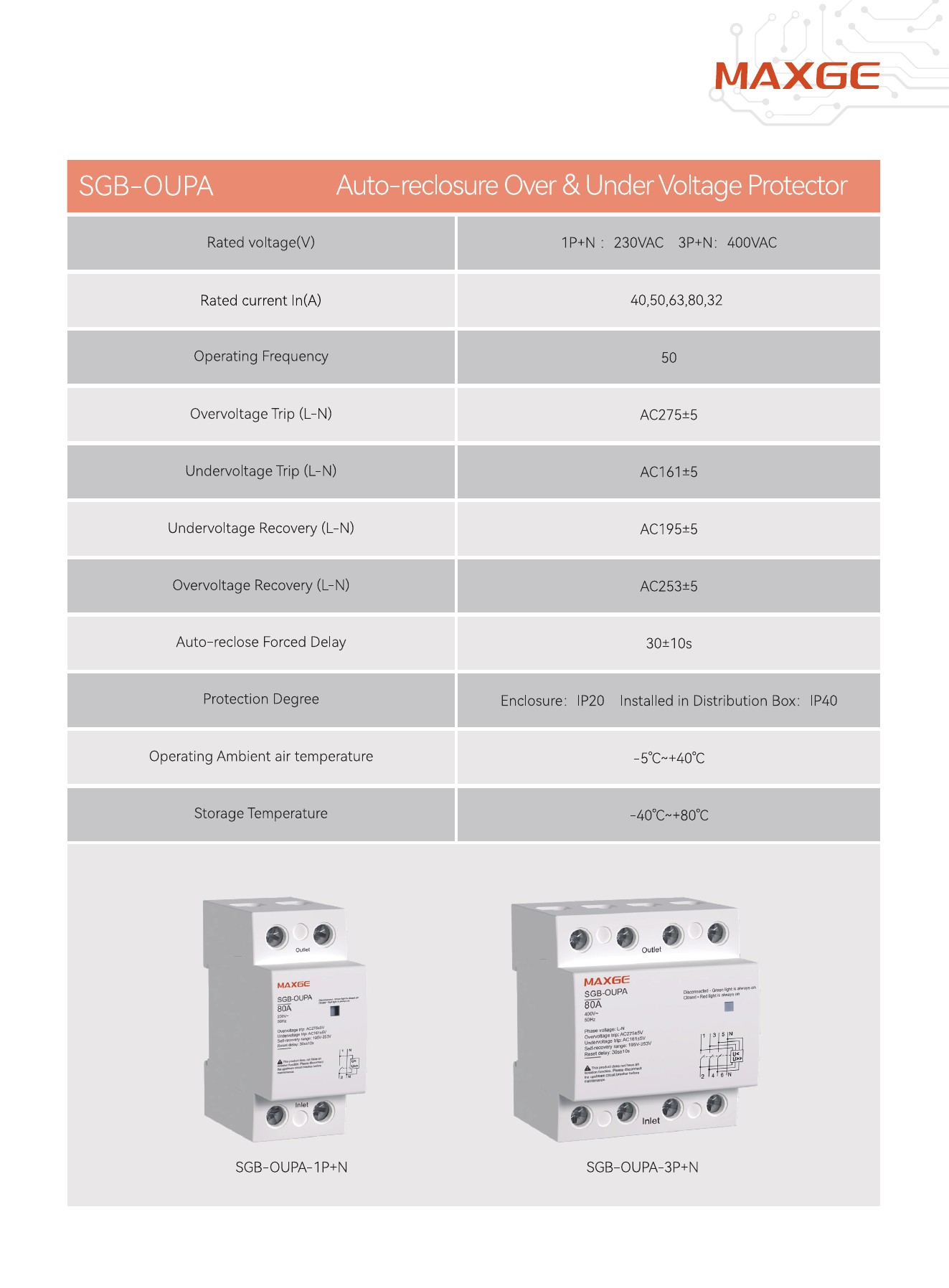

MAXGE SGB-OUPA Auto-reclosure Over & Under Voltage Protector Rated voltage(V) 1P+N：230VAC C 3P+N：400VAC Rated current ln(A) 40，50，63，80，32 Operating Frequency 50 Overvoltage Trip (L-N) AC275±5 Undervoltage Trip (L-N) AC161±5 Undervoltage Recovery(L-N) AC195±5 Overvoltage Recovery(L-N) AC253±5 Auto-reclose Forced Delay 30±10s Protection Degree Enclosure： IP20 Installed in Distribution Box： IP40 Operating Ambient air temperature -5℃~+40℃ Storage Temperature -40℃~+80℃ Oule Outlet MAXGC MAXGE SGB-OUPA scomecded-Groanlighetis SGB-OUPA - od IigMis alwaysc 80A 80A 400V 60Hz NCZ Phase volage：CN w age brip：AC275+5 tage trip： AC16115V eecovery fange： 195V-263V eset dei8y. S0ba 1 A Inlet SGB-OUPA-1P+N SGB-OUPA-3P+N

MAXGE SGB-OUPA Auto-reclosure Over & Under Voltage Protector Features ·Automatic disconnection upon overvoltage. ·Automatic disconnection upon undervoltage. ·Self-locking reclosing function after exceeding the specified number of reclosing attempts. ·Automatic connection under normal working voltage. ·Front window indicating the product's working status. ·Wiring method： Bottom entry， top exit. ·The product is installed on the load side of the main switch in the household distribution box. Schematic diagram of voltage action Operating voltage 275V-- NI 11 230V-- 160V-- U< U>> 0 N .2 Contact position 1U<1 U>> N 12 1s 30s 30s ( Overall Dimensions 67.04±0.86 49.95±0.64 35.5±0.56 71±0.86 寸寸 1P+N 3P+N
