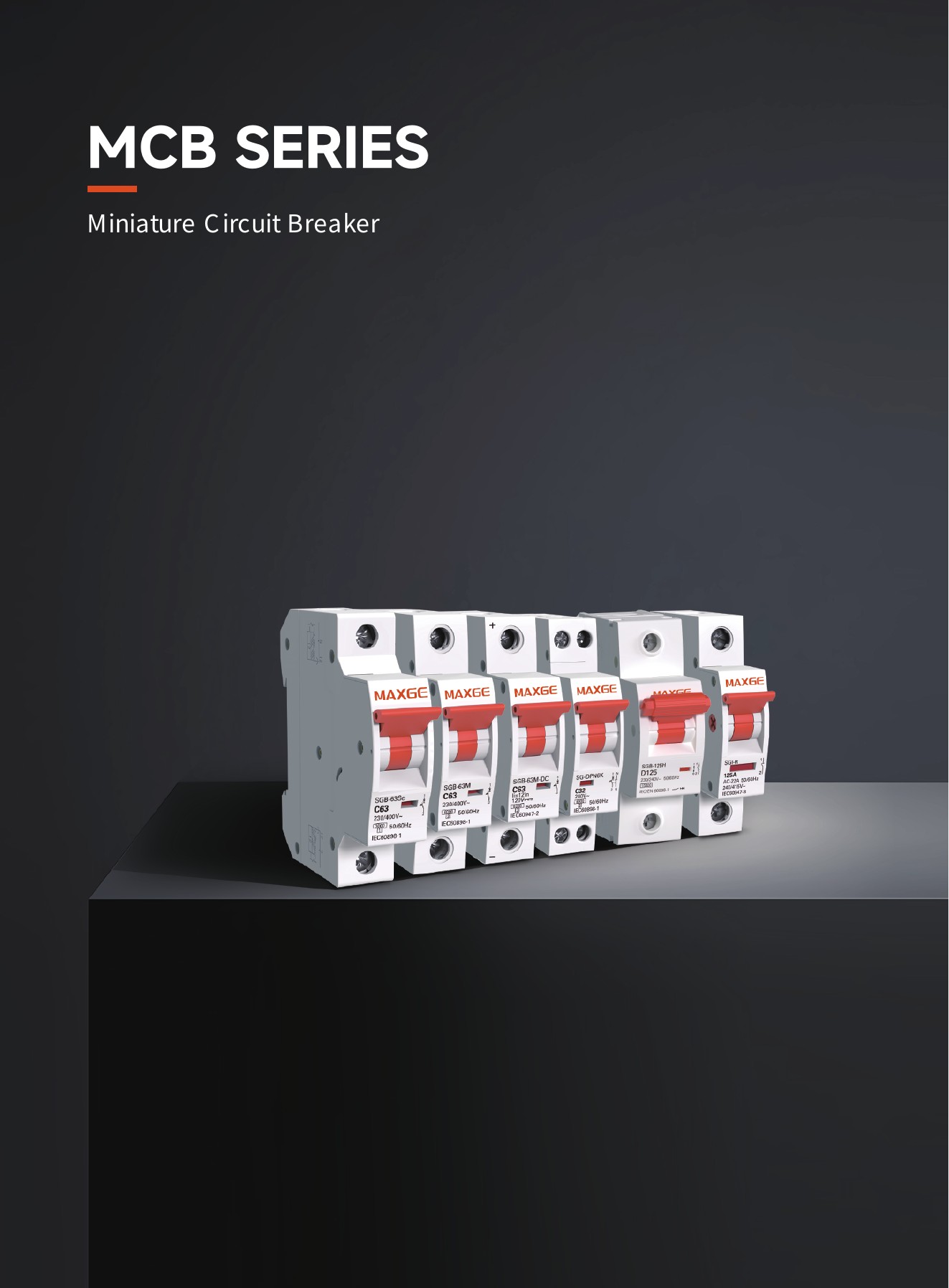

# SGB-63M-H Series <!-- source-page:1 --> MCB SERIES Miniature Circuit Breaker <!-- source-page:2 --> Products Overview of Circuit Breakers Product name MCB MCB | Product range | SGB-63M | SGB-63H | | --- | --- | --- | | Product picture | | | | Standard | IEC/EN 60898-1 GB/T 10963.1 | | | Number of poles | 1P,2P,3P,4P,(1P+N),(3P+N) | | | Electrical characteristics | | | | Rated current(A) In | 1-63 | | | Rated voltage(V) | 1P AC 230/400;240/415 1P+N AC 230/240 2P AC 230/400;240/415 3P,3P+N,4P AC 400/415 | | | AC rated shor-t circuit capacity(kA) | | | | IEC60898-1 standard(kA) | 6 | 10 | | Tripping curev | B,C,D | | | Type | AC | | | Electrical auxiliaries | Auxilary contact,Alarm contact,Shunt trip, Over/under voltage trip | | | Catalogue page NO. | 64-69 | | <!-- source-page:3 --> SGB-63M/H Series Miniature Circuit Breaker | Standard | EN/IEC 60898-1 GB/T 10963.1 | | --- | --- | | Breaking capacity(kA) | 6,10 | | Protection | Against overload and short circuit | | Rated current(A) In | 1,2,3,4,6,10,13,16,20,25,32,40,50,63 | | Rated voltage(V) | 1P AC 230/400,240/415 | | | 1P+N,2P,3P,3P+N,4P AC 230/400,240/415 | | Rated impulse withstand voltage Uimp(kV) | 4 | | Rated insulation voltage Ui(V) | 500 | | Energy limiting class | 3 | | Ambient temperature (℃) | -25~+40,Max.95%humidity | | Thermal operating limit | 1.13 xIn No tripping within an hour | | | 1.45 xIn Tripping within an hour | | Magnertic operating | B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xln | | Number of poles | 1P,1P+N,2P,3P,3P+N and 4P | | Type of trip | Thermal/ magnetic release | | Terminal capacity | 16mm2 flexible or 25mm2 rigid | | Protection degree | IP20 | | Installation | Mounting on 35mm DIN rail | | Width | 17.8mm per pole | | Certification | | | SGB-63M-1P SGB-63M-2P SGB-63M-3P SGB-63M-4P | | <!-- source-page:4 --> SGB-63M Series Miniature Circuit Breaker Rated current(A) Packing unit C curve B curve D curve 1 SGB-63M/1-B1 SGB-63M/1-C1 SGB-63M/1-D1 2 SGB-63M/1-B2 SGB-63M/1-C2 SGB-63M/1-D2 3 SGB-63M/1-B3 SGB-63M/1-C3 SGB-63M/1-D3 4 SGB-63M/1-B4 SGB-63M/1-C4 SGB-63M/1-D4 6 SGB-63M/1-B6 SGB-63M/1-C6 SGB-63M/1-D6 10 SGB-63M/1-B10 SGB-63M/1-C10 SGB-63M/1-D10 13 SGB-63M/1-B13 SGB-63M/1-C13 SGB-63M/1-D13 12 16 SGB-63M/1-B16 SGB-63M/1-C16 SGB-63M/1-D16 20 SGB-63M/1-B20 SGB-63M/1-C20 SGB-63M/1-D20 25 SGB-63M/1-B25 SGB-63M/1-C25 SGB-63M/1-D25 32 SGB-63M/1-B32 SGB-63M/1-C32 SGB-63M/1-D32 40 SGB-63M/1-B40 SGB-63M/1-C40 SGB-63M/1-D40 SGB-63M-1P 50 SGB-63M/1-B50 SGB-63M/1-C50 SGB-63M/1-D50 63 SGB-63M/1-B63 SGB-63M/1-C63 SGB-63M/1-D63 1 SGB-63M/1-B1N SGB-63M/1-C1N SGB-63M/1-D1N 2 SGB-63M/1-B2N SGB-63M/1-C2N SGB-63M/1-D2N 3 SGB-63M/1-B3N SGB-63M/1-C3N SGB-63M/1-D3N 4 SGB-63M/1-B4N SGB-63M/1-C4N SGB-63M/1-D4N 6 SGB-63M/1-B6N SGB-63M/1-C6N SGB-63M/1-D6N 10 SGB-63M/1-B10N SGB-63M/1-C10N SGB-63M/1-D10N 13 SGB-63M/1-B13N SGB-63M/1-C13N SGB-63M/1-D13N 6 16 SGB-63M/1-B16N SGB-63M/1-C16N SGB-63M/1-D16N 20 SGB-63M/1-B20N SGB-63M/1-C20N SGB-63M/1-D20N 25 SGB-63M/1-B25N SGB-63M/1-C25N SGB-63M/1-D25N 32 SGB-63M/1-B32N SGB-63M/1-C32N SGB-63M/1-D32N 40 SGB-63M/1-B40N SGB-63M/1-C40N SGB-63M/1-D40N SGB-63M-1P+N 50 SGB-63M/1-B50N SGB-63M/1-C50N SGB-63M/1-D50N 63 SGB-63M/1-B63N SGB-63M/1-C63N SGB-63M/1-D63N 1 SGB-63M/2-B1 SGB-63M/2-C1 SGB-63M/2-D1 2 SGB-63M/2-B2 SGB-63M/2-C2 SGB-63M/2-D2 3 SGB-63M/2-B3 SGB-63M/2-C3 SGB-63M/2-D3 4 SGB-63M/2-B4 SGB-63M/2-C4 SGB-63M/2-D4 6 SGB-63M/2-B6 SGB-63M/2-C6 SGB-63M/2-D6 10 SGB-63M/2-B10 SGB-63M/2-C10 SGB-63M/2-D10 13 SGB-63M/2-B13 SGB-63M/2-C13 SGB-63M/2-D13 6 16 SGB-63M/2-B16 SGB-63M/2-C16 SGB-63M/2-D16 20 SGB-63M/2-B20 SGB-63M/2-C20 SGB-63M/2-D20 25 SGB-63M/2-B25 SGB-63M/2-C25 SGB-63M/2-D25 32 SGB-63M/2-B32 SGB-63M/2-C32 SGB-63M/2-D32 40 SGB-63M/2-B40 SGB-63M/2-C40 SGB-63M/2-D40 SGB-63M-2P 50 SGB-63M/2-B50 SGB-63M/2-C50 SGB-63M/2-D50 63 SGB-63M/2-B63 SGB-63M/2-C63 SGB-63M/2-D63 <!-- source-page:5 --> SGB-63M Series Miniature Circuit Breaker Rated current(A) Packing unit C curve B curve D curve 1 SGB-63M/3-B1 SGB-63M/3-C1 SGB-63M/1-D1 SGB-63M/1-D2 SGB-63M/3-C2 2 SGB-63M/3-B2 SGB-63M/1-D3 SGB-63M/3-C3 3 SGB-63M/3-B3 SGB-63M/1-D4 SGB-63M/3-C4 4 SGB-63M/3-B4 SGB-63M/1-D6 SGB-63M/3-C6 6 SGB-63M/3-B6 SGB-63M/1-D10 SGB-63M/3-C10 10 SGB-63M/3-B10 SGB-63M/1-D13 SGB-63M/3-C13 13 SGB-63M/3-B13 4 SGB-63M/1-D16 SGB-63M/3-C16 16 SGB-63M/3-B16 SGB-63M/1-D20 SGB-63M/3-C20 20 SGB-63M/3-B20 SGB-63M/1-D25 SGB-63M/3-C25 25 SGB-63M/3-B25 SGB-63M/1-D32 SGB-63M/3-C32 32 SGB-63M/3-B32 SGB-63M/1-D40 SGB-63M/3-C40 40 SGB-63M/3-B40 SGB-63M-3P SGB-63M/1-D50 SGB-63M/3-C50 50 SGB-63M/3-B50 SGB-63M/1-D63 SGB-63M/3-C63 63 SGB-63M/3-B63 SGB-63M/3-D1N SGB-63M/3-C1N 1 SGB-63M/3-B1N SGB-63M/3-D2N SGB-63M/3-C2N 2 SGB-63M/3-B2N SGB-63M/3-D3N SGB-63M/3-C3N 3 SGB-63M/3-B3N SGB-63M/3-D4N SGB-63M/3-C4N 4 SGB-63M/3-B4N SGB-63M/3-D6N SGB-63M/3-C6N 6 SGB-63M/3-B6N SGB-63M/3-D10N SGB-63M/3-C10N 10 SGB-63M/3-B10N SGB-63M/3-D13N SGB-63M/3-C13N 13 SGB-63M/3-B13N 3 SGB-63M/3-D16N SGB-63M/3-C16N 16 SGB-63M/3-B16N SGB-63M/3-D20N SGB-63M/3-C20N 20 SGB-63M/3-B20N SGB-63M/3-D25N SGB-63M/3-C25N 25 SGB-63M/3-B25N SGB-63M/3-D32N SGB-63M/3-C32N 32 SGB-63M/3-B32N SGB-63M/3-D40N SGB-63M/3-C40N 40 SGB-63M/3-B40N SGB-63M-3P+N SGB-63M/3-D50N SGB-63M/3-C50N 50 SGB-63M/3-B50N SGB-63M/3-D63N SGB-63M/3-C63N 63 SGB-63M/3-B63N SGB-63M/4-D1 SGB-63M/4-C1 1 SGB-63M/4-B1 2 SGB-63M/4-B2 SGB-63M/4-D2 SGB-63M/4-C2 3 SGB-63M/4-B3 SGB-63M/4-D3 SGB-63M/4-C3 4 SGB-63M/4-B4 SGB-63M/4-D4 SGB-63M/4-C4 6 SGB-63M/4-B6 SGB-63M/4-D6 SGB-63M/4-C6 10 SGB-63M/4-B10 SGB-63M/4-D10 SGB-63M/4-C10 13 SGB-63M/4-B13 SGB-63M/4-D13 SGB-63M/4-C13 3 16 SGB-63M/4-B16 SGB-63M/4-D16 SGB-63M/4-C16 20 SGB-63M/4-B20 SGB-63M/4-D20 SGB-63M/4-C20 25 SGB-63M/4-B25 SGB-63M/4-D25 SGB-63M/4-C25 32 SGB-63M/4-B32 SGB-63M/4-D32 SGB-63M/4-C32 40 SGB-63M/4-B40 SGB-63M/4-D40 SGB-63M/4-C40 SGB-63M-4P 50 SGB-63M/4-B50 SGB-63M/4-D50 SGB-63M/4-C50 63 SGB-63M/4-B63 SGB-63M/4-D63 SGB-63M/4-C63 <!-- source-page:6 --> SGB-63H Series Miniature Circuit Breaker Rated current(A) Packing unit C curve B curve D curve 1 SGB-63H/1-B1 SGB-63H/1-C1 SGB-63H/1-D1 2 SGB-63H/1-B2 SGB-63H/1-C2 SGB-63H/1-D2 3 SGB-63H/1-B3 SGB-63H/1-C3 SGB-63H/1-D3 4 SGB-63H/1-B4 SGB-63H/1-C4 SGB-63H/1-D4 6 SGB-63H/1-B6 SGB-63H/1-C6 SGB-63H/1-D6 10 SGB-63H/1-B10 SGB-63H/1-C10 SGB-63H/1-D10 13 SGB-63H/1-B13 SGB-63H/1-C13 SGB-63H/1-D13 12 16 SGB-63H/1-B16 SGB-63H/1-C16 SGB-63H/1-D16 20 SGB-63H/1-B20 SGB-63H/1-C20 SGB-63H/1-D20 25 SGB-63H/1-B25 SGB-63H/1-C25 SGB-63H/1-D25 32 SGB-63H/1-B32 SGB-63H/1-C32 SGB-63H/1-D32 40 SGB-63H/1-B40 SGB-63H/1-C40 SGB-63H/1-D40 SGB-63H-1P 50 SGB-63H/1-B50 SGB-63H/1-C50 SGB-63H/1-D50 63 SGB-63H/1-B63 SGB-63H/1-C63 SGB-63H/1-D63 1 SGB-63H/1-B1N SGB-63H/1-C1N SGB-63H/1-D1N 2 SGB-63H/1-B2N SGB-63H/1-C2N SGB-63H/1-D2N 3 SGB-63H/1-B3N SGB-63H/1-C3N SGB-63H/1-D3N 4 SGB-63H/1-B4N SGB-63H/1-C4N SGB-63H/1-D4N 6 SGB-63H/1-B6N SGB-63H/1-C6N SGB-63H/1-D6N 10 SGB-63H/1-B10N SGB-63H/1-C10N SGB-63H/1-D10N 13 SGB-63H/1-B13N SGB-63H/1-C13N SGB-63H/1-D13N 6 16 SGB-63H/1-B16N SGB-63H/1-C16N SGB-63H/1-D16N 20 SGB-63H/1-B20N SGB-63H/1-C20N SGB-63H/1-D20N 25 SGB-63H/1-B25N SGB-63H/1-C25N SGB-63H/1-D25N 32 SGB-63H/1-B32N SGB-63H/1-C32N SGB-63H/1-D32N 40 SGB-63H/1-B40N SGB-63H/1-C40N SGB-63H/1-D40N SGB-63H-1P+N 50 SGB-63H/1-B50N SGB-63H/1-C50N SGB-63H/1-D50N 63 SGB-63H/1-B63N SGB-63H/1-C63N SGB-63H/1-D63N 1 SGB-63H/2-B1 SGB-63H/2-C1 SGB-63H/2-D1 2 SGB-63H/2-B2 SGB-63H/2-C2 SGB-63H/2-D2 3 SGB-63H/2-B3 SGB-63H/2-C3 SGB-63H/2-D3 4 SGB-63H/2-B4 SGB-63H/2-C4 SGB-63H/2-D4 6 SGB-63H/2-B6 SGB-63H/2-C6 SGB-63H/2-D6 10 SGB-63H/2-B10 SGB-63H/2-C10 SGB-63H/2-D10 13 SGB-63H/2-B13 SGB-63H/2-C13 SGB-63H/2-D13 6 16 SGB-63H/2-B16 SGB-63H/2-C16 SGB-63H/2-D16 20 SGB-63H/2-B20 SGB-63H/2-C20 SGB-63H/2-D20 25 SGB-63H/2-B25 SGB-63H/2-C25 SGB-63H/2-D25 32 SGB-63H/2-B32 SGB-63H/2-C32 SGB-63H/2-D32 40 SGB-63H/2-B40 SGB-63H/2-C40 SGB-63H/2-D40 SGB-63H-2P 50 SGB-63H/2-B50 SGB-63H/2-C50 SGB-63H/2-D50 63 SGB-63H/2-B63 SGB-63H/2-C63 SGB-63H/2-D63 <!-- source-page:7 --> SGB-63H Series Miniature Circuit Breaker Rated current(A) C curve B curve D curve Packing unit 1 SGB-63H/3-B1 SGB-63H/3-C1 SGB-63H/1-D1 SGB-63H/1-D2 SGB-63H/3-C2 2 SGB-63H/3-B2 SGB-63H/1-D3 SGB-63H/3-C3 3 SGB-63H/3-B3 SGB-63H/1-D4 SGB-63H/3-C4 4 SGB-63H/3-B4 SGB-63H/1-D6 SGB-63H/3-C6 6 SGB-63H/3-B6 SGB-63H/1-D10 SGB-63H/3-C10 10 SGB-63H/3-B10 SGB-63H/1-D13 SGB-63H/3-C13 13 SGB-63H/3-B13 4 SGB-63H/1-D16 SGB-63H/3-C16 16 SGB-63H/3-B16 SGB-63H/1-D20 SGB-63H/3-C20 20 SGB-63H/3-B20 SGB-63H/1-D25 SGB-63H/3-C25 25 SGB-63H/3-B25 SGB-63H/1-D32 SGB-63H/3-C32 32 SGB-63H/3-B32 SGB-63H/1-D40 SGB-63H/3-C40 40 SGB-63H/3-B40 SGB-63H-3P SGB-63H/1-D50 SGB-63H/3-C50 50 SGB-63H/3-B50 SGB-63H/1-D63 SGB-63H/3-C63 63 SGB-63H/3-B63 SGB-63H/3-D1N SGB-63H/3-C1N 1 SGB-63H/3-B1N SGB-63H/3-D2N SGB-63H/3-C2N 2 SGB-63H/3-B2N SGB-63H/3-D3N SGB-63H/3-C3N 3 SGB-63H/3-B3N SGB-63H/3-D4N SGB-63H/3-C4N 4 SGB-63H/3-B4N SGB-63H/3-D6N SGB-63H/3-C6N 6 SGB-63H/3-B6N SGB-63H/3-D10N SGB-63H/3-C10N 10 SGB-63H/3-B10N SGB-63H/3-D13N SGB-63H/3-C13N 13 SGB-63H/3-B13N 3 SGB-63H/3-D16N SGB-63H/3-C16N 16 SGB-63H/3-B16N SGB-63H/3-D20N SGB-63H/3-C20N 20 SGB-63H/3-B20N SGB-63H/3-D25N SGB-63H/3-C25N 25 SGB-63H/3-B25N SGB-63H/3-D32N SGB-63H/3-C32N 32 SGB-63H/3-B32N SGB-63H/3-D40N SGB-63H/3-C40N 40 SGB-63H/3-B40N SGB-63H-3P+N SGB-63H/3-D50N SGB-63H/3-C50N 50 SGB-63H/3-B50N SGB-63H/3-D63N SGB-63H/3-C63N 63 SGB-63H/3-B63N SGB-63H/4-D1 SGB-63H/4-C1 1 SGB-63H/4-B1 SGB-63H/4-D2 SGB-63H/4-C2 2 SGB-63H/4-B2 SGB-63H/4-D3 SGB-63H/4-C3 3 SGB-63H/4-B3 SGB-63H/4-D4 SGB-63H/4-C4 4 SGB-63H/4-B4 SGB-63H/4-D6 SGB-63H/4-C6 6 SGB-63H/4-B6 SGB-63H/4-D10 SGB-63H/4-C10 10 SGB-63H/4-B10 SGB-63H/4-D13 SGB-63H/4-C13 13 SGB-63H/4-B13 3 SGB-63H/4-D16 SGB-63H/4-C16 16 SGB-63H/4-B16 SGB-63H/4-D20 SGB-63H/4-C20 20 SGB-63H/4-B20 SGB-63H/4-D25 SGB-63H/4-C25 25 SGB-63H/4-B25 SGB-63H/4-D32 SGB-63H/4-C32 32 SGB-63H/4-B32 SGB-63H/4-D40 SGB-63H/4-C40 40 SGB-63H/4-B40 SGB-63H-4P SGB-63H/4-D50 SGB-63H/4-C50 50 SGB-63H/4-B50 SGB-63H/4-D63 SGB-63H/4-C63 63 SGB-63H/4-B63 <!-- source-page:8 --> SGB-63M/H Series Miniature Circuit Breaker Curves Overcurrent protecting characteristics Endurance(operations) Features Much higher short circuit breaking capacity, Dual-connection convenient for both standard busbar and conductor connection. Improved safety of operators offered by special design from terminals. Much longer service life thanks to energy-storage operating mechanism.Enclosure and functional parts made from imported plastics with flame-retardant, heat-resistant, and impulse-proof properties.Higher current-limiting capacity ensuring a cost-effective range of products. Different handle color for different rated current with contactor condition indicator. Overall and mounting dimensions SGB-63M/SGB-63H | NO. | Rated current In of release(A) | itial state Test current Specified | time Result to be obtained | Remarks | | --- | --- | --- | --- | --- | | 1 | 1-63 c | old state 1.13In t≤1h | Non-trip | | | 2 | u 1-63 pr | pon the 1.45In t<1h evious test | trip | Setting current up to specified value steadily in 5s | | 3 | In≤32 c In>32 | 1s<t<6 old state 2.55In 1s<t<1 | 0s trip 20s | | | 4 | 1-63 c | 3In t≤0.1 5ln t<0.1 5In t≤0.1 old state 10ln t<0.1 10In t≤0.1 20ln t<0.1 | s Non-trip s trip s Non-trip s trip s Non-trip s trip | B type B type C type C type D type D type | | Category | Operations | Operation frequency | Rated current | | --- | --- | --- | --- | | Electrical endurance | 4000 | 240/h | 1-32 | | | | 120/h | 40-63 | | Mechanical endurance | 10000 | 240/h | 1-63 |
