CERTIFICATE

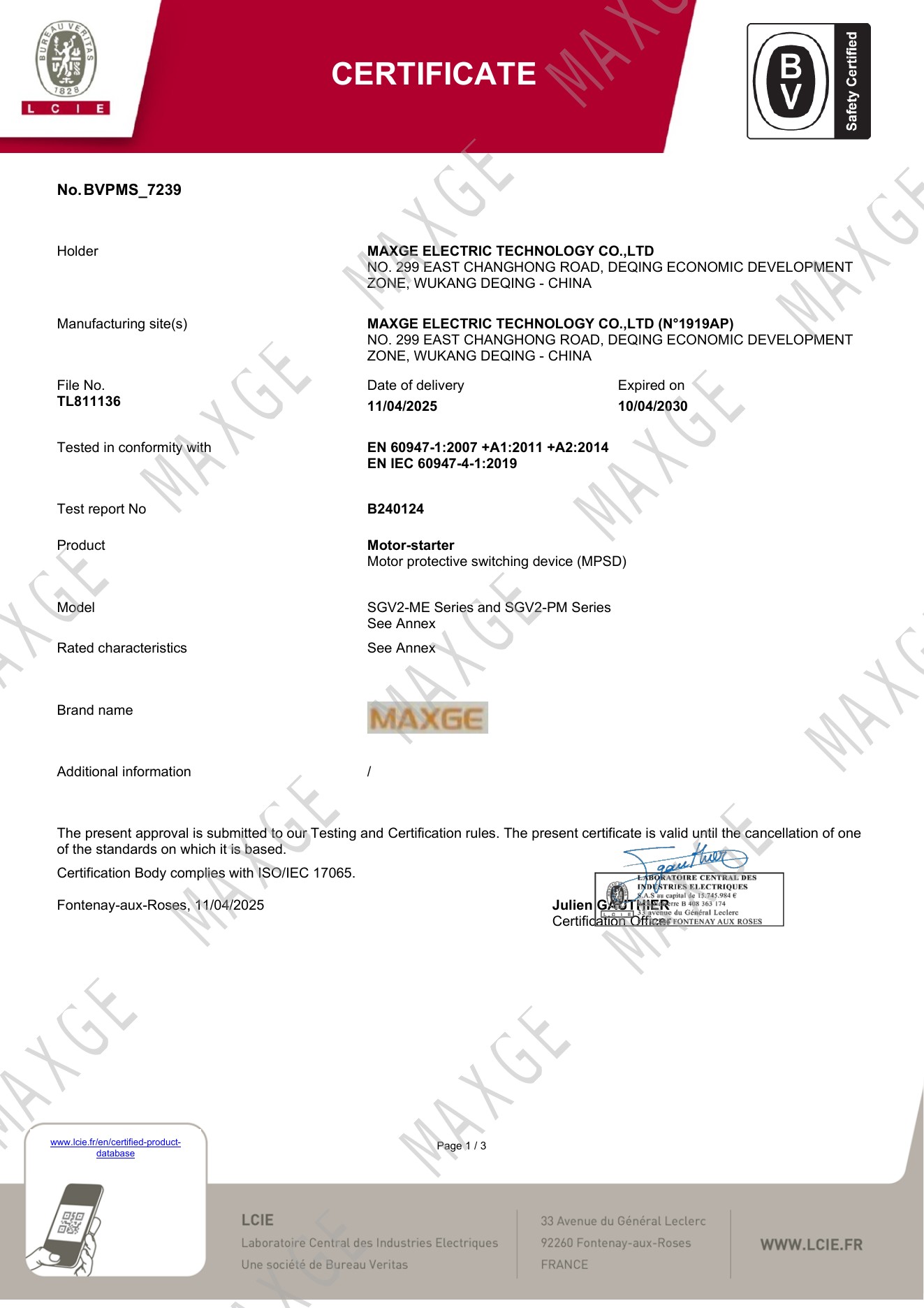

No. BVPMS_7239 Holder Manufacturing site(s) MAXGE File No. TL811136 Tested in conformity with EN 60947-1:2007 +A1:2011 +A2:2014 EN IEC 60947-4-1:2019 Test report No B240124 MAXGE Product Motor-starter Motor protective switching device (MPSD) Model SGV2-ME Series and SGV2-PM Series See Annex Rated characteristics See Annex Brand name MAXGE Additional information / MAXGE AXGE The present approval is submitted to our Testing and Certification rules. The present certificate is valid until the cancellation of one of the standards on which it is based. Certification Body complies with ISO/IEC 17065. Fontenay-aux-Roses, 11/04/2025 Julien GAUTHIER Certification Officer MAXGE www.lcie.fr/en/certified-productdatabase www.lcie.fr/en/certified-productdatabase

MAXG MAXGE MAXGE MAXGE ELECTRIC TECHNOLOGY CO.,LTD NO. 299 EAST CHANGHONG ROAD, DEQING ECONOMIC DEVELOPMENT ZONE, WUKANG DEQING - CHINA MAXGE ELECTRIC TECHNOLOGY CO.,LTD (N°1919AP) NO. 299 EAST CHANGHONG ROAD, DEQING ECONOMIC DEVELOPMENT ZONE, WUKANG DEQING - CHINA MAXGE Date of delivery 11/04/2025 Expired on 10/04/2030 MAXGE MAXGE MAXGE Page 1 / 3

BVPMS_7239

MAXGE MAXGE AXGE MAXGE www.lcie.fr/en/certified-productdatabase

MAXG Annex of certificate

MAXGE Page 2 / 3

| Utilization category | E AC-3 E |
| --- | --- |
| Interruption medium | Air |
| Design | G Moulded case G |
| Method of controlling the operating mechanism | Dependent manual |
| Suitability for isolation | X Suitable X |
| A Provision for maintenance A | X Non-maintainable X |
| Method of installation | Fixed |
| M Protection degree : M | A IP20 for front cover A |
| Rated operational voltage Ue : (V) | 380/400/415V~ |
| Rated insulation voltage Ui : (V) | M 690V M |
| Rated impulse withstand voltage Uimp : (V) | 6kV |
| Rated current Ie : (A) | 0,1A to 32A(Current setting range see next pages) |
| E Conventional free air thermal current Ith : (A) E | 32A |
| Conventional enclosed thermal current Ithe : (A) | N/A |
| G Rated frequency : (Hz) G | E 50/60Hz E |
| Nature of supply : | AC |
| X Number of protected poles : X | G 3P G |
| A Rated short-time making capacity Icm : (A) M A M | X 7,65kA (SGV2-ME32, SGV2-PM32) A 30kA (SGV2-ME16 to SGV2-ME22, SGV2-PM16 to SGV2-PM22) 220kA (SGV2-ME01 to SGV2-ME14, SGV2-PM01 to SGV2-PM14) X A |
| Rated ultimate short-circuit breaking capacity Icu : (A) | M 10kA (SGV2-ME32, SGV2-PM32) 15kA (SGV2-ME16 to SGV2-ME22, SGV2-PM16 to SGV2-PM22) 100kA (SGV2-ME01 to SGV2-ME14, SGV2-PM01 to SGV2-PM14) M |
| E Rated service short-circuit breaking capacity Ics : (A) G E G | 5kA (SGV2-ME32, SGV2-PM32) 6kA (SGV2-ME21 to SGV2-ME22, SGV2-PM21 to SGV2-PM22) E 7,5kA (SGV2-ME16 to SGV2-ME20, SGV2-PM16 to SGV2-PM20) 100kA (SGV2-ME01 to SGV2-ME14, SGV2-PM01 to SGV2-PM14) E |
| Electrmagnetic compatibility | N/A |
| Instantaneous tripping current : | G See next page G |
| Pollution degree | 3 |
| Material group : to 2,5A | X IIIa X 33,5A |
| safety distance (short-circuit tests) : M SGV2-PM10 2,5A to 4A M SGV2-PM12 4A to 6,3A SGV2-PM14 6A to 10A SGV2-PM16 9A to 14A | A Back:0mm Front:0mm; Top:50mm Botton:50mm; Left:0mm Right:0mm A 51A AA 78A 138A 170A |

BVPMS_7239 Product reference list: MAXGE 15kA SGV2-ME20 13A to 18A 223A SGV2-ME21 17A to 23A 327A 6kA SGV2-ME22 20A to 25A 327A SGV2-ME32 24A to 32A 416A 5kA 10kA MAXGE 15kA SGV2-PM20 13A to 18A 223A SGV2-PM21 17A to 23A 327A 6kA SGV2-PM22 20A to 25A 327A SGV2-PM32 24A to 32A 416A 5kA 10kA MAXGE www.lcie.fr/en/certified-productdatabase

Reference No. Current setting SGV2-ME01 0,1A to 0,16A 1,5A SGV2-ME02 0,16A to 0,25A 2,4A SGV2-ME03 0,25A to 0,40A 5A SGV2-ME04 0,40A to 0,63A 8A SGV2-ME05 0,63A to 1A 13A SGV2-ME06 1A to 1,6A 22,5A SGV2-ME07 1,6A to 2,5A 33,5A SGV2-ME10 2,5A to 4A 51A SGV2-ME12 4A to 6,3A 78A SGV2-ME14 6A to 10A 138A SGV2-ME16 9A to 14A 170A 7,5kA Reference No. Current setting SGV2-PM01 0,1A to 0,16A 1,5A SGV2-PM02 0,16A to 0,25A 2,4A SGV2-PM03 0,25A to 0,40A 5A SGV2-PM04 0,40A to 0,63A 8A SGV2-PM05 0,63A to 1A 13A SGV2-PM06 1A to 1,6A 22,5A SGV2-PM07 1,6A to 2,5A 33,5A SGV2-PM10 2,5A to 4A 51A SGV2-PM12 4A to 6,3A 78A SGV2-PM14 6A to 10A 138A SGV2-PM16 9A to 14A 170A 7,5kA MAXGE MAXGE AXGE
