# SGMR+EPMR+GRMR-40D_VDE_CB_

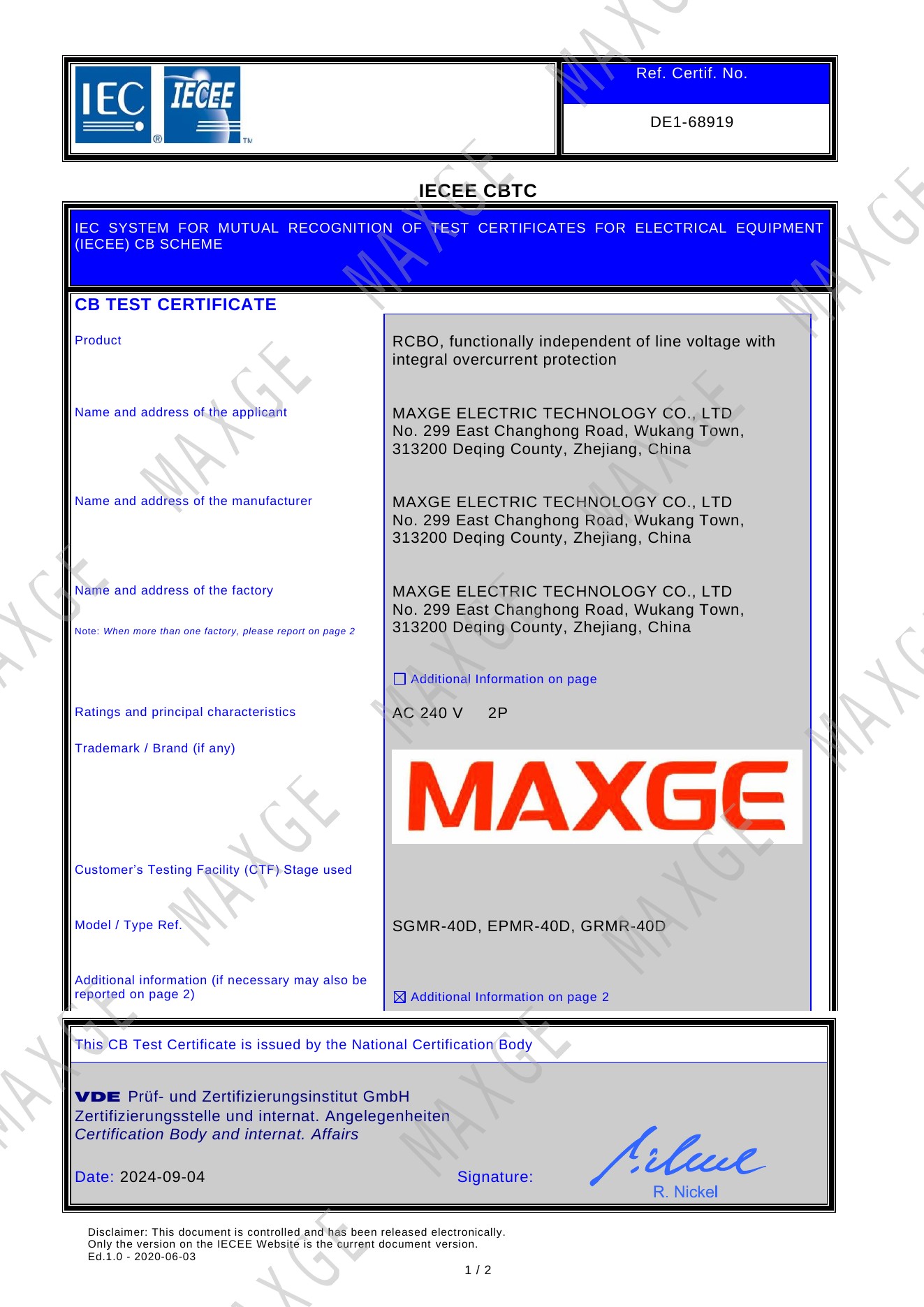

IEC SYSTEM FOR MUTUAL RECOGNITION OF TEST CERTIFICATES FOR ELECTRICAL EQUIPMENT (IECEE) CB SCHEME CB TEST CERTIFICATE MAXGE Product Name and address of the applicant

Name and address of the manufacturer MAXGE Name and address of the factory Note: When more than one factory, please report on page 2

Ratings and principal characteristics Trademark / Brand (if any) MAXGE MAXGE AXGE Customer’s Testing Facility (CTF) Stage used Model / Type Ref. MAXGE Additional information (if necessary may also be reported on page 2) This CB Test Certificate is issued by the National Certification Body Q Prüf- und Zertifizierungsinstitut GmbH Zertifizierungsstelle und internat. Angelegenheiten Certification Body and internat. Affairs Date: 2024-09-04 Disclaimer: This document is controlled and has been released electronically. Only the version on the IECEE Website is the current document version. Ed.1.0 - 2020-06-03 1 / 2

MAXG Ref. Certif. No. MAXGE DE1-68919 MAXGE IECEE CBTC RCBO, functionally independent of line voltage with integral overcurrent protection MAXGE MAXGE ELECTRIC TECHNOLOGY CO., LTD No. 299 East Changhong Road, Wukang Town, 313200 Deqing County, Zhejiang, China MAXGE ELECTRIC TECHNOLOGY CO., LTD No. 299 East Changhong Road, Wukang Town, 313200 Deqing County, Zhejiang, China MAXGE MAXGE ELECTRIC TECHNOLOGY CO., LTD No. 299 East Changhong Road, Wukang Town, 313200 Deqing County, Zhejiang, China MAXGE Additional Information on page AC 240 V 2P SGMR-40D, EPMR-40D, GRMR-40D MAXGE Additional Information on page 2 Signature:

A sample of the product was tested and found to be in conformity with As shown in the Test Report Ref. No. which forms part of this Certificate MAXGE Additional information Rated voltage: AC 240 V 2P Rated current: 6 A; 10 A; 13 A; 15 A; 16 A; 20 A; 25 A; 32 A; 40 A Rated frequency: 50/60 Hz Rated residual operating current: 0,03 A; 0,1 A; 0,3 A Rated residual making and breaking cap. : 2000 A Rated short-circuit capacity: 6000A / 10000 A; Grid distance: 45 mm Behaviour in presence of d.c. components: AC and A Instantaneous tripping current: B and C; Energy limiting class: 3 Ambient temperature: -5℃ ... +40℃ The tests are carried out according to the Austrian Standard ÖVE EN 61009-1 (ÖVE/ÖNORM E 8601) with a short time delay (G-type). MAXGE MAXGE MAXGE AXGE MAXGE This CB Test Certificate is issued by the National Certification Body Q Prüf- und Zertifizierungsinstitut GmbH Zertifizierungsstelle und internat. Angelegenheiten Certification Body and internat. Affairs Date: 2024-09-04 Disclaimer: This document is controlled and has been released electronically. Only the version on the IECEE Website is the current document version. Ed.1.0 - 2020-06-03 2 / 2

MAXG Ref. Certif. No. MAXGE DE1-68919 MAXGE IEC 61009-1:2010, IEC 61009-2-1:1991, IEC 61009-1:2010/AMD1:2012, IEC 61009-1:2010/AMD2:2013 317401-TL3-1 MAXGE MAXGE MAXGE MAXGE Signature:
