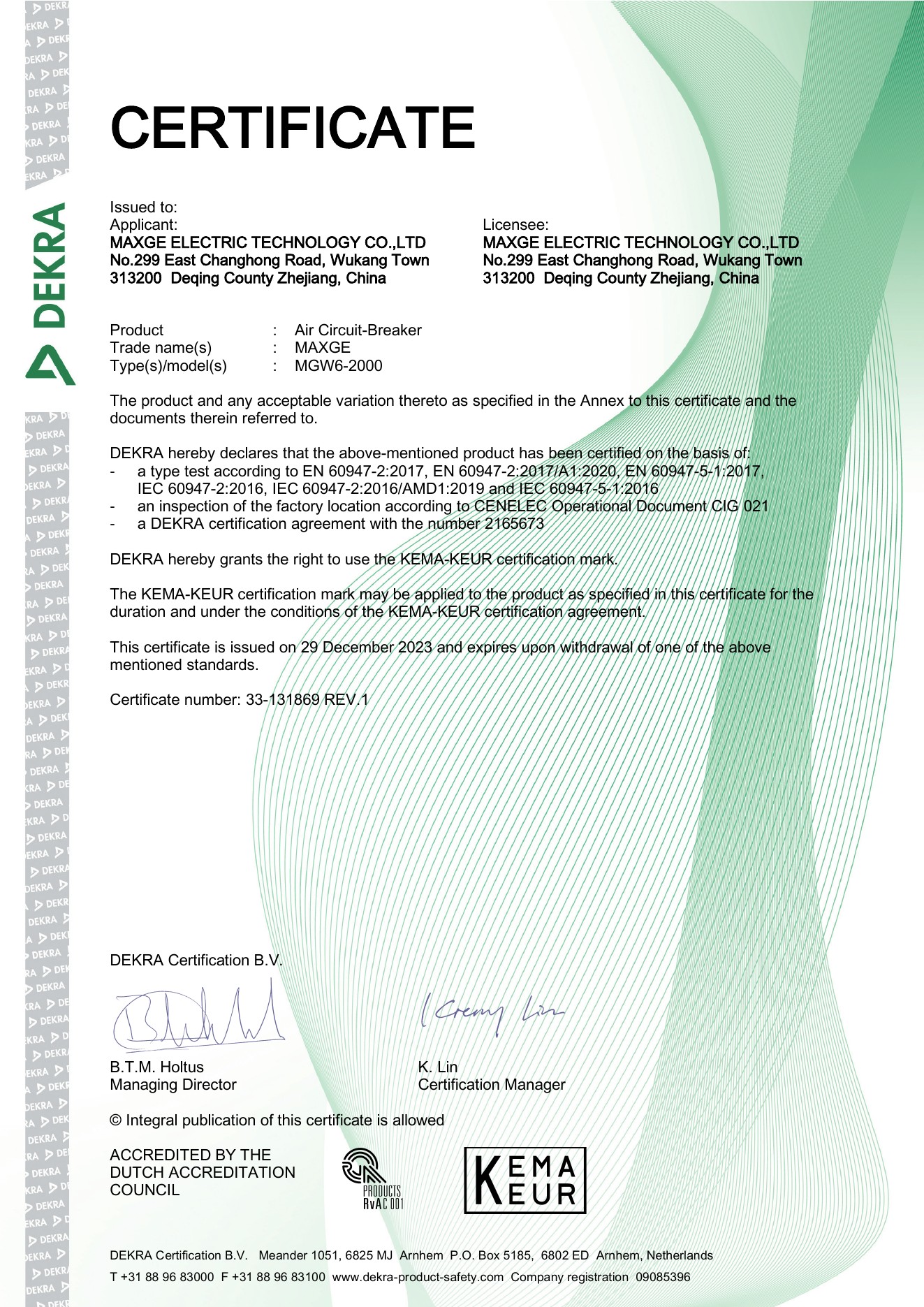

CERTIFICATE Issued to: Applicant: MAXGE ELECTRIC TECHNOLOGY CO.,LTD No.299 East Changhong Road, Wukang Town 313200 Deqing County Zhejiang, China Licensee: MAXGE ELECTRIC TECHNOLOGY CO.,LTD No.299 East Changhong Road, Wukang Town 313200 Deqing County Zhejiang, China Product : Air Circuit-Breaker Trade name(s) : MAXGE Type(s)/model(s) : MGW6-2000 The product and any acceptable variation thereto as specified in the Annex to this certificate and the documents therein referred to. DEKRA hereby declares that the above-mentioned product has been certified on the basis of: - a type test according to EN 60947-2:2017, EN 60947-2:2017/A1:2020, EN 60947-5-1:2017, IEC 60947-2:2016, IEC 60947-2:2016/AMD1:2019 and IEC 60947-5-1:2016 - an inspection of the factory location according to CENELEC Operational Document CIG 021 - a DEKRA certification agreement with the number 2165673 DEKRA hereby grants the right to use the KEMA-KEUR certification mark. The KEMA-KEUR certification mark may be applied to the product as specified in this certificate for the duration and under the conditions of the KEMA-KEUR certification agreement. This certificate is issued on 29 December 2023 and expires upon withdrawal of one of the above mentioned standards. Certificate number: 33-131869 REV.1

DEKRA Certification B.V.   B.T.M. Holtus K. Lin Managing Director Certification Manager © Integral publication of this certificate is allowed ACCREDITED BY THE DUTCH ACCREDITATION COUNCIL   DEKRA Certification B.V. Meander 1051, 6825 MJ Arnhem P.O. Box 5185, 6802 ED Arnhem, Netherlands T +31 88 96 83000 F +31 88 96 83100 www.dekra-product-safety.com Company registration 09085396

ANNEX TO KEMA-KEUR CERTIFICATE 33-131869 REV.1 page 1 of 3 SPECIFICATION OF THE CERTIFIED PRODUCT Product data Product : Air Circuit-Breaker Trade name(s) : MAXGE Type(s)/model(s) : MGW6-2000 Number of poles : 3P or 4P (N pole with overcurrent protection) Rated operational voltage (Ue) : 220 / 230 / 240 / 380 / 400 / 415 / 440 Vac Rated insulation voltage (Ui) : 1000 V for main circuit 690 V for control circuit 690 V for auxiliary circuit Rated impulse withstand voltage (Uimp) 8 kV for control circuit 2,5 kV for auxiliary circuit Rated frequency : 50 / 60 Hz Rated current (In) : 630, 800, 1000, 1250, 1600, 2000 A Conventional thermal current (Ith) : Equal to In Current rating for four-pole circuit- breakers Rated service short-circuit breaking capacity (Ics) Rated ultimate short-circuit breaking capacity (Icu) Rated short-time withstand current (Icw) Suitable for isolation : Suitable Selectivity category : B Safety distance (screen-circuit breaker) Reference temperature : Independent Ambient temperature : - 5 °C to 40 °C Method of mounting : Withdrawable or fixed EMC environment : A and B Rated tightening torque for terminals : M12 / 50 Nm Line/load terminal : Immaterial Connection : Minimum cross-sectional area of conductor: Prepared copper conductor, 2 x 185 mm2 or (40 x 5) mm² x 2 copper busbars Maximum cross-sectional area of conductor: Copper busbar, (100 x 5) mm² x 3 Inverse time delay release : Ir: (0,4 - 1,0) x In, OFF, step 1 A Time setting of the inverse time delay release tolerance of ± 10% (at 1,5 Ir) tripping time at 2 Ir: 7,60 s - 9,28 s (tr = 15 s) 243 s - 297 s (tr = 480 s) Short time delay release : Isd: (1,5 - 10) x Ir, OFF, step 1 A Time setting of the short time delay release 0,1 s, with tolerance of 60 ms - 140 ms 0,2 s, with tolerance of 160 ms - 240 ms 0,3 s, with tolerance of 260 ms - 340 ms 0,4 s, with tolerance of 360 ms - 440 ms non-tripping duration stated by the manufacturer: 0,1 s: 60 ms 0,2 s: 160 ms 0,3 s: 260 ms 0,4 s: 360 ms Instantaneous release : Ii: (2 - 10) x In, OFF, step 1 A DEKRA Certification B.V. Meander 1051, 6825 MJ Arnhem P.O. Box 5185, 6802 ED Arnhem, Netherlands T +31 88 96 83000 F +31 88 96 83100 www.dekra-product-safety.com Company registration 09085396

: 12 kV for main circuit

: Equal to In : 65 kA : 80 kA / 65 kA : 65 kA - 1 s

: All sides: 0 mm

: tr: 15 s - 480 s (15 s, 30 s, 60 s, 120 s, 240 s, 480 s, OFF), with

: tsd: I²t off: 0,1 s - 0,4 s, step 0,1 s

ANNEX TO KEMA-KEUR CERTIFICATE 33-131869 REV.1 page 2 of 3 Making current release (MCR) : 20 kA Ground fault release : Ig: (0,2 - 1) x In, OFF, step 1 A, tg: I²t off: 0,1 s - 0,4 s, step 0,1 s 0,1 s, with tolerance of 60 ms - 140 ms 0,2 s, with tolerance of 160 ms - 240 ms 0,3 s, with tolerance of 260 ms - 340 ms 0,4 s, with tolerance of 360 ms - 440 ms Shunt release : 220 - 240 Vac, 380 - 440 Vac, 50 / 60 Hz 110 Vdc, 200 - 250 Vdc Under-voltage release : 220 - 250 Vac, 380 - 440 Vac, 50 / 60 Hz Closing coil : 220 - 240 Vac, 380 - 440 Vac, 50 / 60 Hz 110 Vdc, 200 - 250 Vdc Stored energy motor : 220 - 240 Vac, 380 - 440 Vac, 50 / 60 Hz 110 Vdc, 200 - 250 Vdc External supply for overcurent release : 220 - 240 Vac, 380 - 440 Vac, 50 / 60 Hz 110 Vdc, 200 - 250 Vdc Auxiliary circuits : F10-6 5NO5NC AC-15: 3 A at 415 Vac, 5 A at 250 Vac, 50 / 60 Hz DC-13: 0,27 A at 250 Vdc, 0,55 A at 125 Vdc Ui: 690 V, Uimp: 2,5 kV, Ith: 6 A Rated conditional short-circuit current: 1 kA Fuse: Yinrong NT00-6A, 6 A, 120 kA / 500 Vac TESTS Test requirements EN 60947-2:2017 EN 60947-2:2017/A1:2020 EN 60947-5-1:2017 IEC 60947-2:2016 IEC 60947-2:2016/AMD1:2019 IEC 60947-5-1:2016 Test result The test results are laid down in DEKRA test file 332810900. Additional information Nomenclature breakdown: MG W6 - 2000 / 4P 2000A D a b c d e f a = Manufacturer: ‘MG’ means MAXGE ELECTRIC TECHNOLOGY CO.,LTD b = Product code: W6 c = Frame size: 2000 d = Pole number: ‘4P’ or ‘3P’ e = Rated current: 630A, 800A, 1000A, 1250A, 1600A, 2000A f = Installation method: ‘D’ means Drawer, ‘F’ means Fixation. The referred test reports are 3328109.50 and 3328120.50. This certificate replaces certificate No. 33-131869 which we hereby declare invalid.

DEKRA Certification B.V. Meander 1051, 6825 MJ Arnhem P.O. Box 5185, 6802 ED Arnhem, Netherlands T +31 88 96 83000 F +31 88 96 83100 www.dekra-product-safety.com Company registration 09085396

ANNEX TO KEMA-KEUR CERTIFICATE 33-131869 REV.1 page 3 of 3 Conclusion The examination proved that all requirements were met. Factory location MAXGE ELECTRIC TECHNOLOGY CO.,LTD No.299 East Changhong Road, Wukang Town 313200 Deqing County Zhejiang, China
