# SGDBi-S-F

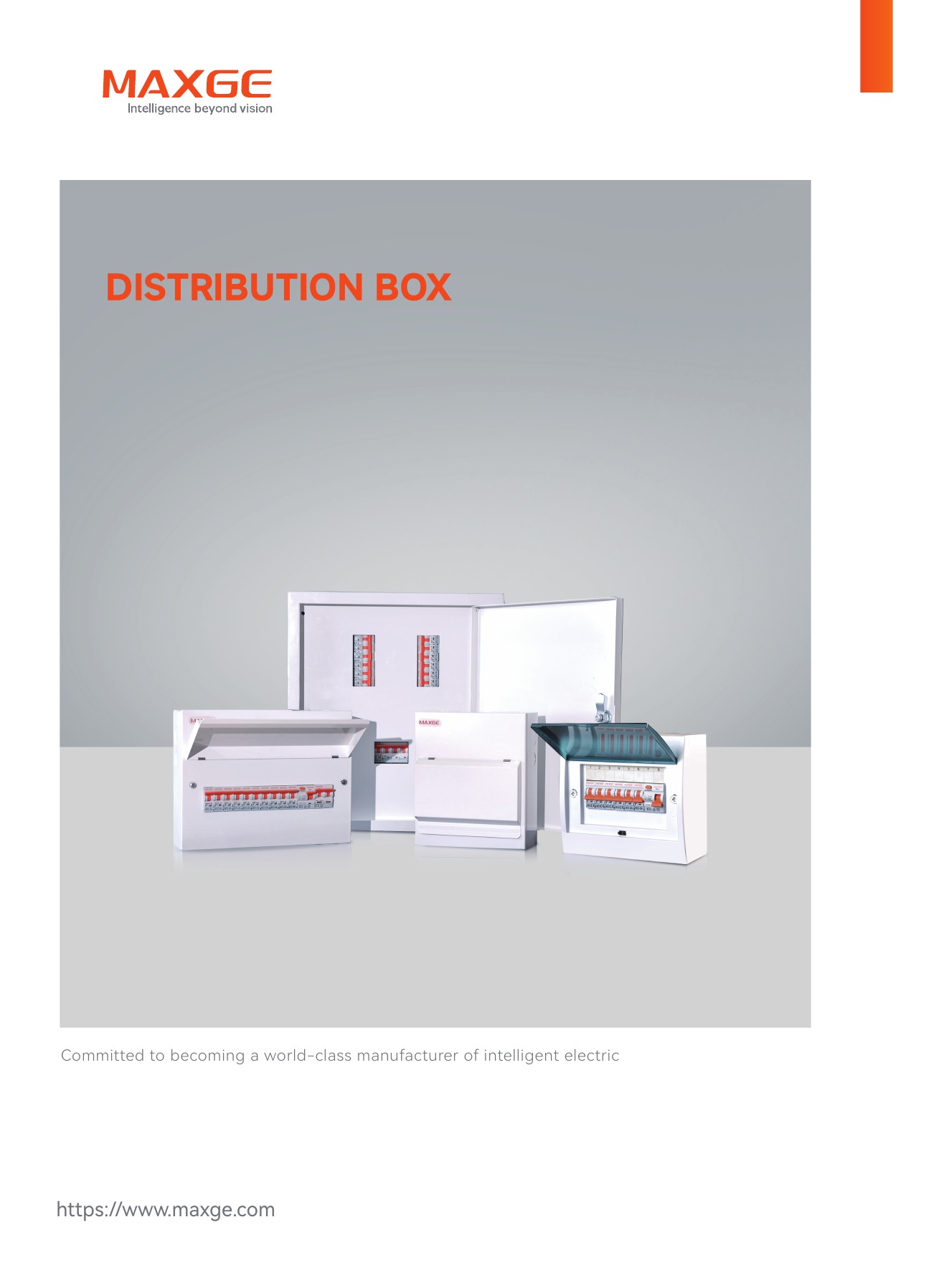

DISTRIBUTION BOX

Committed to becoming a world-class manufacturer of intelligent electric

https://www.maxge.com

Clean and tidy appearance： The optimized structural design ensures the mechanical degree of the box， the cover can be flexibly disassembled， and the large space can be placed with the circuit breakers as you want. IP30 protection level effectively prevents foreign matter from entering and reduces dust accumulation. Enclosure： Plastic base type with ABS flame retardant material. metal base type with cold rolled steel material. The side of the enclosure has wiring knockout holes on upper and lower sides. Can be easily pressed by 30N force. Bottom entry holes can easily enter the lines and improve efficiency. Panel： With Safety protection. The cover is made of flame-retardant PC material， with self-extinguishing material， reducing Safety hazards. Opening and closing 110°， large angle opening， more convenient and flexible. Parts Parts and components： 1.International standard 35MM rail 2.Easy installation holes 3. Lower heat generation， safe and reliable under high current operation MAXGE D 0

MAXGE SGDBi-S/Fs Series DistributionBox Technicaldata Standard IEC60439-3 Approval CE Modules(No.) 6，8，12，18，24，36，54 Row 1 row for 6， 8， 12，18 modules 2 rows for 24， 36 modules 3 rows for 54 modules Rated current ln(A) 63，100，125A Color White RAL 9003 and Grey RAL 7035 Color of door Blue，White Mounting type Surface，Flush Degree of protection IP30 Material PS or ABS for body， PC for door Fire resistance 650°C/30s Ambient temperature(°C) -5-+40，max.95%humidity Storage temperature(°C) -40~+75°C MAXGE T -1-

MAXGE SGDBi Plastic base Number Plastic base Plastic base Rated Current In(A) Color of door of module (Surface type) (Flash type) 6 SGDBi-S06 SGDBi-F06 63/100/125A Blue/White 8 SGDBi-S08 SGDBi-F08 63/100/125A Blue/White 12 SGDBi-S12 SGDBi-F12 63/100/125A Blue/White 18 SGDBi-S18 SGDBi-F18 63/100/125A Blue/White 24 SGDBi-S24 SGDBi-F24 63/100/125A Blue/White 36 SGDBi-S36 SGDBi-F36 63/100/125A Blue/White 54 SGDBi-S54 / 63/100/125A Blue/White 3 6 7 9 10 159999000 3 5 6 7 10 1.Plastic Base 2.Iron Support 3.Terminal Block Support 4.Brass Terminal Block 5.Brass Terminal Block Screw 6.Plastic Front Cover 7.PC Window 8.Plastic Cover Lock 9.Plastic Screw and Spring 10.Din Rail -2-

MAXGE SGDBi-S Surface type Dimension L1/L2 W1/W2 H1/H2 6ways 194/168 204/129 102/77 8ways 228/203 204/129 102/77 12ways 300/275 204/129 102/77 18ways 410/384 204/129 102/77 24ways 300/298 294/242 109/77 36ways 410/406 294/242 109/77 54ways 435/425 601/579 143/120 H2 HI 之 品 SGDBi-F Flush type Dimension L1/L2 W1/W2 H1/H2 6ways 210/168 219/129 102/77 8ways 244/203 219/129 102/77 12ways 317/275 219/129 102/77 18ways 426/384 219/129 102/77 24ways 318/298 310/242 109/77 36ways 426/406 310/242 109/77 H2 H1 D u -3-

MAXGE SGDBi-FPM(plastic cover and metal base) Number Metalbase Rated Current In(A) Color of door of module (Flush type) 8 SGDBi-F08 PM 63/100/125A Blue/White 12 SGDBi-F12PM 63/100/125A Blue/White 18 SGDBi-F18 PM 63/100/125A Blue/White 24 SGDBi-F24PM 63/100/125A Blue/White 36 SGDBi-F36PM 63/100/125A Blue/White 2 康康康康康 5 1.Screw(M4x10) 2.Plastic Strip 3.Plastic Screw and Spring 4.PC Window 5.Plastic Cover Lock 6.Screw(M2.5x14) 7.Iron Support Metal Base Dimension Specification W H H 8ways 264 202 73 12ways 300 202 78 W 18ways 408 202 73 24ways 300 292 73 L 36ways 408 292 76 -4-
