# SGDBi-F PM (plastic cover and metal base)

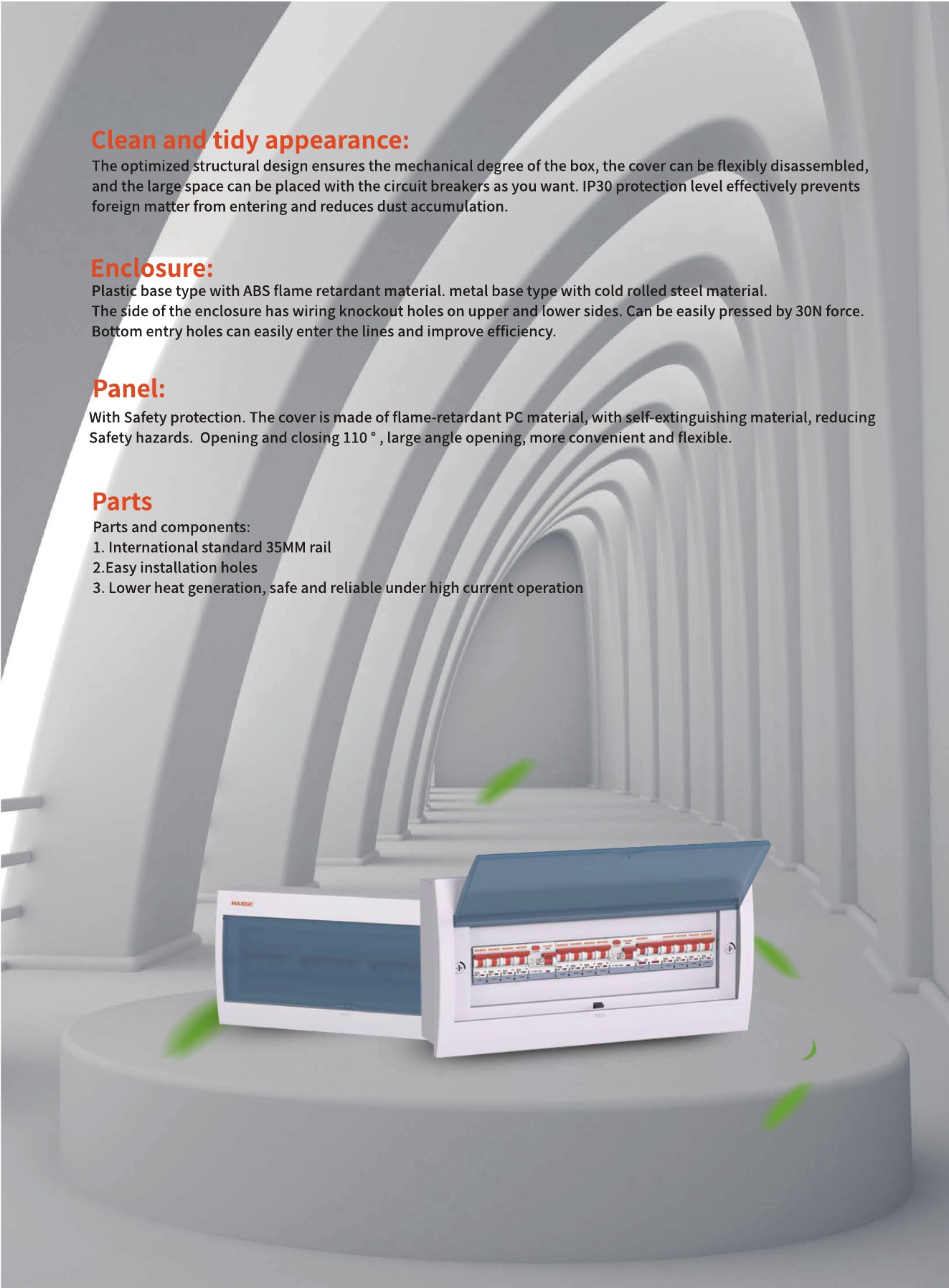

Clean and tidy appearance： The optimized structural design ensures the mechanical degree of the box， the cover can be flexibly disassembled， and the large space can be placed with the circuit breakers as you want. IP30 protection level effectively prevents foreign matter from entering and reduces dust accumulation. Enclosure： Plastic base type with ABS flame retardant material. metal base type with cold rolled steel material. The side of the enclosure has wiring knockout holes on upper and lower sides. Can be easily pressed by 30N force. Bottom entry holes can easily enter the lines and improve efficiency. Panel： With Safety protection. The cover is made of flame-retardant PC material， with self-extinguishing material， reducing Safety hazards. Opening and closing 110°， large angle opening， more convenient and flexible. Parts Parts and components： 1.International standard 35MM rail 2.Easy installation holes 3. Lower heat generation， safe and reliable under high current operation MAXGE

MAXGE SGDBi-S/F： Series DistributionBox Technicaldata Standard IEC60439-3 Approval CE Modules(No.) 6，8，12，18，24，36，54 Row 1 row for 6， 8， 12，18 modules 2 rows for 24， 36 modules 3 rows for 54 modules Rated current ln(A) 63，100，125A Color White RAL 9003 and Grey RAL 7035 Color of door Blue，White Mounting type Surface，Flush Degree of protection IP30 Material PS or ABS for body， PC for door Fire resistance 650°C/30s Ambient temperature(°C) -5-+40，max.95%humidity Storage temperature(C) -40~+75°C 中中中中中 - CC -1-

MAXGE SGDBi-FPM(plastic cover and metal base) Number Metalbase Rated Current In(A) Color of door ofmodule (Flush type) 8 SGDBi-F08 PM 63/100/125A Blue/White 12 SGDBi-F12PM 63/100/125A Blue/White 18 SGDBi-F18 PM 63/100/125A Blue/White 24 SGDBi-F24 PM 63/100/125A Blue/White 36 SGDBi-F36PM 63/100/125A Blue/White 2 T R 5 1.Screw(M4x10) 2.Plastic Strip 3.Plastic Screw and Spring 4.PC Window 5.Plastic Cover Lock 6.Screw(M2.5x14) 7.Iron Support Metal Base Dimension Specification W H H 8ways 264 202 73 12ways 300 202 78 W ： 18ways 408 202 73 24ways 300 292 73 L 36ways 408 292 76 -4-
