# SGR2-D&#038;F Series

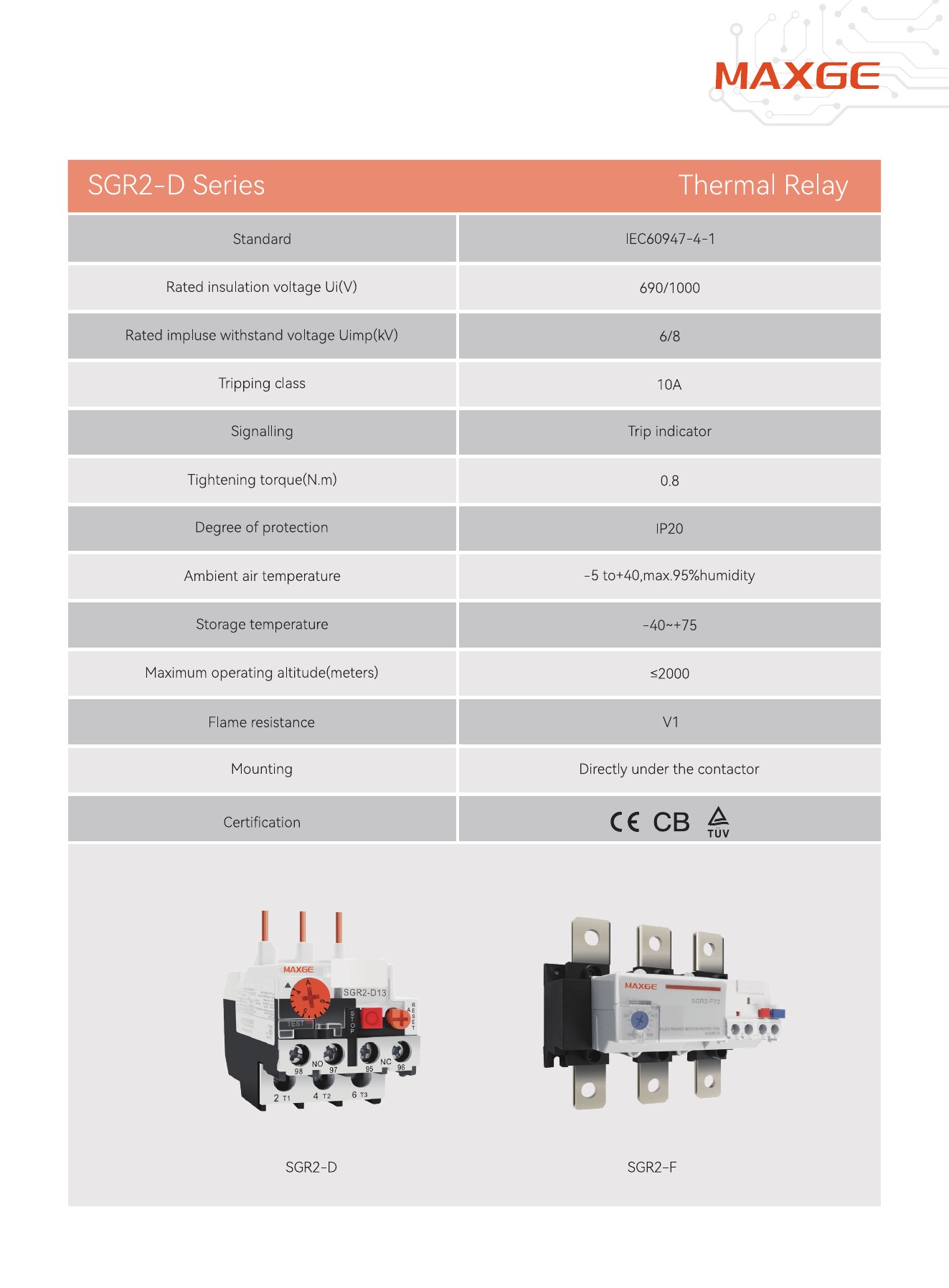

MAXGE SGR2-D Series Thermal Relay Standard IEC60947-4-1 Rated insulation voltage Ui(V) 690/1000 Rated impulse withstand voltage Uimp(kV) 6/8 Tripping class 10A Signalling Trip indicator Tightening torque(N.m) 0.8 Degree of protection IP20 Ambient air temperature -5 to+40，max.95%humidity Storage temperature -40~+75 Maximum operating altitude(meters) ≤2000 Flame resistance V1 Mounting Directly under the contactor Certification CE CB 会 TUV 111 MAXGE MAXGE SGR2-D13 SGR2-F73 NO NC 98J 97 95 96 2 4 6T3 SGR2-D SGR2-F

MAXGE SGR2-D Series Thermal Relay SGR2-D thermal relay matched with contactor SGC1-D Rated frame Rated working current Rated current Current setting Matched fuse type Matched AC current(A) of thermal relay (A) range(A) aM(A) gG(A) contactor SGR2-D 1301 0.16 0.10~0.16 0.25 2 SGC1-D09 SGR2-D 1302 0.25 0.16~0.25 0.5 2 SGC1-D09 SGR2-D 1303 0.40 0.25~0.40 1 2 SGC1-D09 SGR2 D 1304 0.63 0.40~0.63 1 2 SGC1-D09 SGR2-D 1305 0.63~1.0 2 4 SGC1-D09 SGR2-D 1306 1.0~1.6 2 4 SGC1-D09 SGR2-D1306X 1.25~2.0 4 6 SGC1-D09 25 SGR2-D 1307 1.6~2.5 4 6 SGC1-D09 SGR2-D 1308 4.0 2.5~4.0 6 SGC1-D09 SGR2-D 1310 6.0 4.0~6.0 8 SGC1-D09 SGR2-D 1312 8.0 5.5~8.0 SGC1-D09 SGR2-D 1314 10 7~10 SGC1-D12 SGR2-D 1316 13 9~13 SGC1-D18 SGR2-D 1321 12~18 SGC1-D18 SGR2-D 1322 17~25 SGC1-D25 SGR2-D 2353 23~32 SGC1-D32 36 SGR2-D 2355 30~40 SGC1-D40 SGR2-D 3353 23~32 63 SGC1-D32 SGR2-D 3355 30~40 100 SGC1-D40 SGR2-D 3357 37~50 100 SGC1-D50 93 SGR2-D 3359 48~65 100 SGC1-D65 SGR2-D 3361 55~70 125 SGC1-D80 SGR2-D 3363 63~80 125 SGC1-D80 SGR2-D 3365 80~93 100 160 SGC1-D95 SGR2-F thermal relay matched with contactor SGC1-F Current setting Matched fuse type Matched AC Type code range(A) aM(A) gG(A) contactor SGR2-F53/50 30-50 80 SGC1-F115~F185 SGR2-F53/80 48-80 125 SGC1-F115~F185 SGR2-F53/100 60-100 100 200 SGC1-F115~F185 MAXGE SGR2-F53/150 90-150 160 250 SGC1-F115~F185 SGR2-F53/220 132-220 250 315 SGC1-F225~F265 SGR2-F73/330 200-330 400 500 SGC1-F225~F500 SGR2-F73/500 300-500 500 800 SGC1-F225~F500 SGR2-F73/630 380-630 630 800 SGC1-F400~F630

MAXGE SGR2-D Series Thermal Relay Overall Dimensions 20 A ■ GR2-DX3 中 SGR2-013 GR2-023 1田 口田 月 区 X 一 99 区 2T1 412 T 12 119max 93max 72max 46max X 95max 64max SGR2-D13 SGR2-D23 SGR2-D33 123.5 48 48 56.8 25 120 127.6 8 30 011 4Xo5.5 50 50 42.2 011 4 ml lm LOJ R 1 U 三 9 原U原 品 厂 上 W W 2 12 25 51.5 51.5 125 4x05.5 66 66 6 150 46.8 SGR2-F53/220 SGR2-F73/630 Tripping curve for thermal relay SGR2-D SGR2-F Time 10A grade Time 21 2 1h 40mm 20mm 10mm w0三c 10 4mm 4 2mm M 2 1mm 1 40 20s 20 10s 10 4s 4 ! 2s 2 1 1s 0.8s 10 17 20 0.81 2 4 6 10 17/20 X times of current setting value X current setting (1r) 3phase Start form cold state Equilibrium running 2phase 3phase After long period of setting current(hot state)
