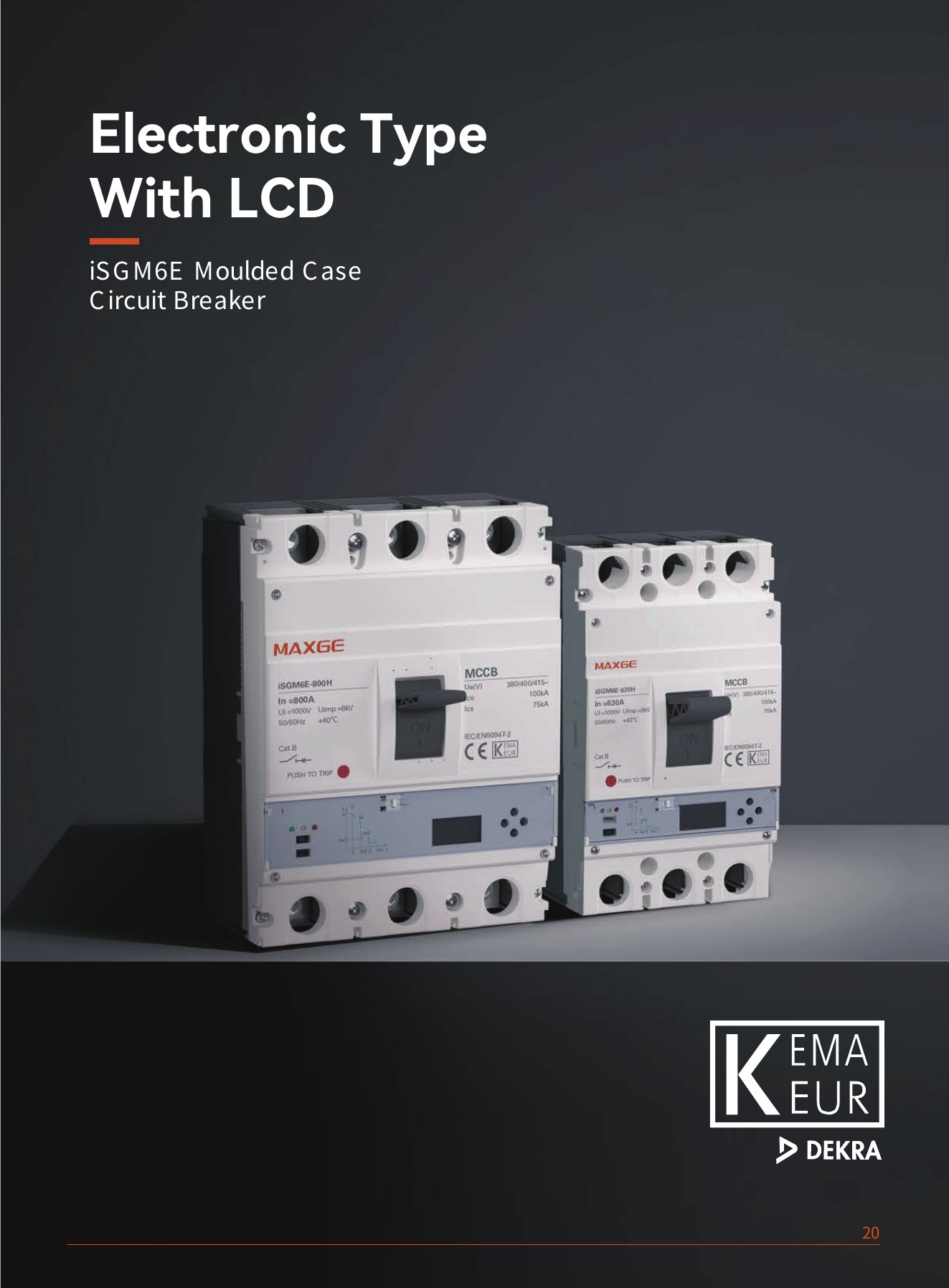

# iSGM6E-400 <!-- source-page:1 --> Electronic Type With LCD iSGM6E Moulded Case Circuit Breaker 20 <!-- source-page:2 --> Ratings And Specifications Frame Size Model Number of poles Rated current(A) In Standard Reference temperature Rated operational voltage Rated impluse withstand 8 (Icw) Breaking capacity level breaking capacity Icu(kA) breaking capacity Ics(kA) lcu=Ics(kA) Mechanical Endurance Electrical Endurance Accessories 21 M 85 60 60 7000 Electronic Type With LCD B Alarm switch(SD) Shunt tirp(MX) AC Motor Mechanism H 75 75 <!-- source-page:3 --> Product Dimension Drawing iSGM6E iSGM6E Frame Size Length Width Height Length Width Height 23 Overload Operation TEST DC12V BACK OK USB In=1600A iSGM6E Dimensions mm(L×W×H) Electronic Type With LCD Overload Operation TEST DC12V BACK OK USB In=1600A 400 257 257 <!-- source-page:4 --> Setting Parameters Electronic Type With LCD Frame Size iSGM6E-400A Rated current In(A) 250 300 315 320 400 Ir(A) Long Delay Current Setting 160-400A in steps of 1A 100-250A in steps of 1A 120-300A in steps of 1A 126-315A in steps of 1A 128-320A in steps of 1A tr(S) Long Delay Time 12-150sec in steps of 1 sec+OFF Isd(A) Short Circuit Protection Of Low Level Faults 200-3000A in steps of 1A 240-3600A in steps of 1A 252-3780A in steps of 1A 256-3840A in steps of 1A 320-4800A in steps of 1A tsd (S) short time 0.06-1sec in steps of 0.01 sec+OFF Ii(A) Short Circuit Protection Of High level Faults 400-3500A in steps of 1A + OFF 480-4200A in steps of 1A + OFF 504-4410A in steps of 1A + OFF 512-4480A in steps of 1A + OFF 640-5600A in steps of 1A + OFF Ip(A) Pre Trip Alarm Setting Multiple 70-250A in steps of 1A 84-300A in steps of 1A 88.2-315A in steps of 1A 89.6-320A in steps of 1A 112-400A in steps of 1A For 4p Ig(A) Ground Fault Pickup Current 50-250A in steps of 1A + OFF 60-300A in steps of 1A + OFF 63-315A in steps of 1A + OFF 64-320A in steps of 1A + OFF 80-400A in steps of 1A + OFF For 4p tg(S) Ground Fault Pickup Time 0.4-1sec in steps of 0.1sec 24 <!-- source-page:5 --> MCCB With Spreader Link Dimensions Front connection Note:All dimensions are in mm SGM6/6s/6sm-400A(Me) 3 POLES & 4 POLES 110.5 140 108 183 56 56 98 28 15.5 28 43.5 43.5 311 194 225 257 257 343 194 16 43.5 26 26 26 43 36 152 6 43.5 43.5 28 14.3 43.5 SGM6/6s/6sm/6E-400A/630A 3 POLES & 4 POLES 108 110.5 150 60.5 60.5 197 32.5 20 32.5 98 48 48 311 194 194 257 257 224 343 16 44 26 26 26 43.5 38/40 152 6 28 44 14.3 44 48
