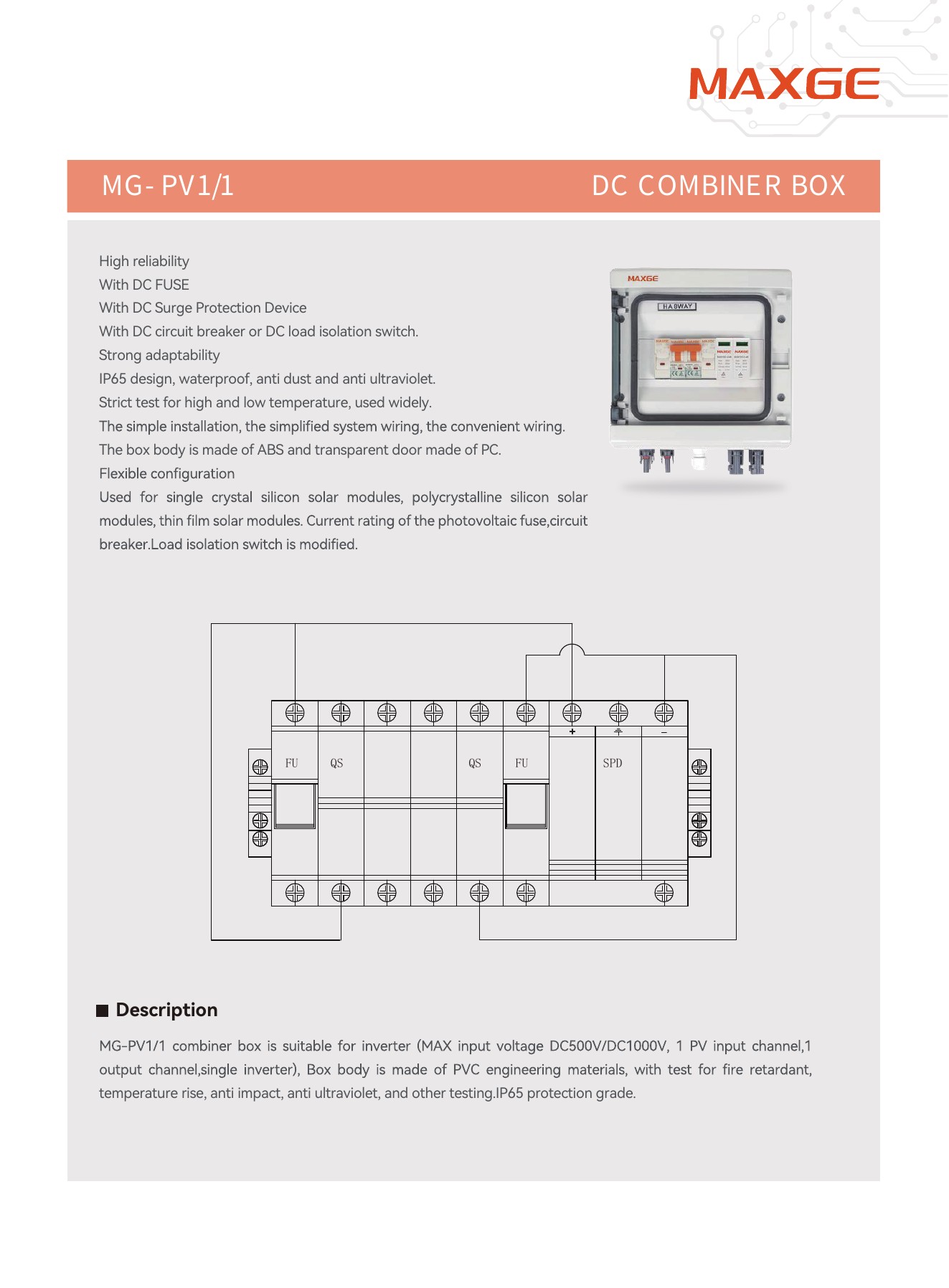

MG-PV1/1 DC COMBINER BOX

High reliability With DC FUSE With DC Surge Protection Device With DC circuit breaker or DC load isolation switch. Strong adaptability IP65 design, waterproof, anti dust and anti ultraviolet. Strict test for high and low temperature, used widely.

The box body is made of ABS and transparent door made of PC.

SPD QS QS FU FU

Description

temperature rise, anti impact, anti ultraviolet, and other testing.IP65 protection grade.

MG-PV1/1 DC COMBINER BOX Technical parameters System maximum DC voltage Maximum input current for each string Maximum input strings Maximum output switch current Number of Output strings Lightning protection Nominal discharge current Maximum discharge current Voltage protection level Up Maximum continuous operating voltage Uc Poles Structure characteristic System Protection grade Output switch SMC4 Waterproof Connectors PV DC fuse PV surge protector Monitoring module Preventing diode Box material Installation method Operating temperature Elevation of temperature Permissible relative humidity Schematic diagram

Name Electric parameter

FU1+

FU1-

SPD

MG-PV1/1

500 1000 15A 1 16A/20A 1 1

Il grade protection 20KA 40KA 2.8KV 1050V 2P Plug-push module

IP65 DC isolation switch(standard)/DC circuit breaker(optional) Standard Standard Standard Optional Optional PVC Wall mounting type -25°C~+55°C 2000M 0-95%, no condensation
