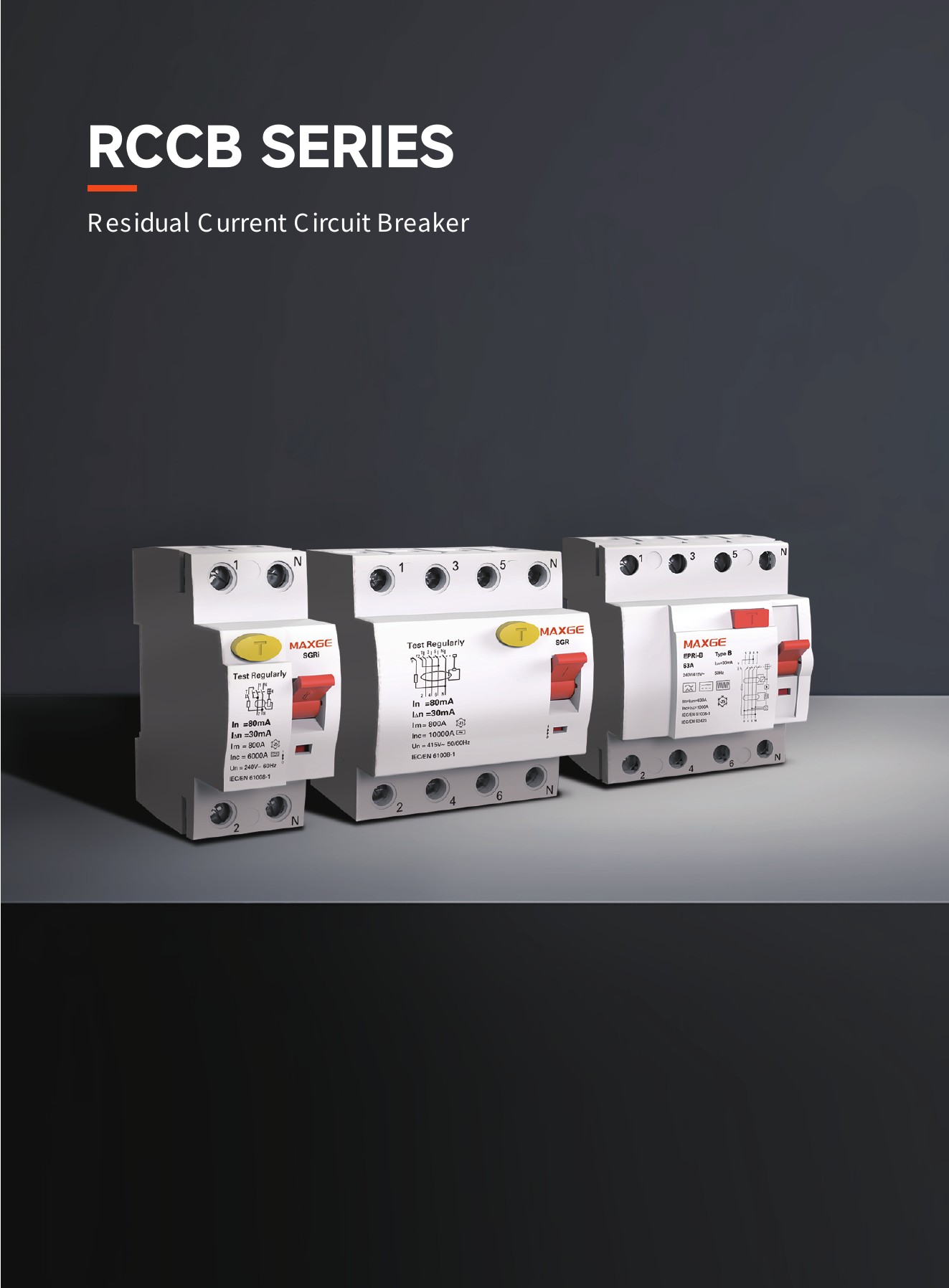

# SGRi Series <!-- source-page:1 --> RCCB SERIES Residual Current Circuit Breaker <!-- source-page:2 --> Products Overview of Residual Current Protective Devices Product name RCCB Product range Product picture Standard Number of poles 2P(1P+N) 4P(3P+N) Rated current(A) In Rated voltage(V) Rated residual current(mA) Rated conditional short-circuit current(kA) Tripping curve Residual current operating characteristic Catalogue page NO. SGRi IEC/EN 61008-1 Electrical characteristics 25~100 AC 240 AC 415 30,100,300 6,10 ------ AC,A,S 06-10 <!-- source-page:3 --> SGRi Series Residual Current Circuit Breaker Standard EN/IEC61008-1 Rated conditional short-circuit current(kA) 6,10 Rated current(A),ln 25,32,40,63,80,100 Number of poles 2P(1P+N),4P(3P+N) Rated sensitivity currents(mA),IΔn 30,100,300 Rated residual non-operating current 0.5XIΔn Rated impulse withstand voltage Uimp(kV) 4 Rated voltage(V) AC 240 2pole Ambient temperature (°C) -25~+40,Max.95%humidity Residual current off--time at IΔn ≤0.1s Rated residual current making & breaking capacity, IΔm Type of trip Electro-magnetic release Terminal capacity Cables up to 35mm2 Protection degree IP20 Installation 35mm DIN rail Certification SGRi-2P SGRi-4P AC 415 4pole 500A for ln=16,25,32,40A 630A for In=63A 800A for In=80A 1000A for In=100A <!-- source-page:4 --> SGRi Series Residual Current Circuit Breaker | Rated IΔn current(A) | B curev | | Type A C curev D curev | Packing unit | | --- | --- | --- | --- | --- | | 6 10 16 20 25 10mA 32 40 50 63 6 10 16 20 25 30mA 32 40 50 63 | SGRM-63LE-2-B6/ | 10-A SG 10-A SG 10-A SG 10-A SG 10-A SG 10-A SG | RM-63LE-2-C6/10-A SGRM-63LE-2-D6/10 | -A -A -A -A -A -A -A -A -A -A -A -A -A -A -A -A -A -A | | | SGRM-63LE-2-B10/ | | RM-63LE-2-C10/10-A SGRM-63LE-2-D10/10 | | | | SGRM-63LE-2-B16/ | | RM-63LE-2-C16/10-A SGRM-63LE-2-D16/10 | | | | SGRM-63LE-2-B20/ | | RM-63LE-2-C20/10-A SGRM-63LE-2-D20/10 | | | | SGRM-63LE-2-B25/ | | RM-63LE-2-C25/10-A SGRM-63LE-2-D25/10 | | | | SGRM-63LE-2-B32/ | | RM-63LE-2-C32/10-A SGRM-63LE-2-D32/10 | | | | SGRM-63LE-2-B40/ | 10-A SG 10-A SG 10-A SG 30-A SG 30-A SG 30-A SG | RM-63LE-2-C40/10-A SGRM-63LE-2-D40/10 | | | | SGRM-63LE-2-B50/ | | RM-63LE-2-C50/10-A SGRM-63LE-2-D50/10 | | | | SGRM-63LE-2-B63/ | | RM-63LE-2-C63/10-A SGRM-63LE-2-D63/10 | | | | SGRM-63LE-2-B6/ | | RM-63LE-2-C6/30-A SGRM-63LE-2-D6/30 | | | | SGRM-63LE-2-B10/ | | RM-63LE-2-C10/30-A SGRM-63LE-2-D10/30 | | | | SGRM-63LE-2-B16/ | | RM-63LE-2-C16/30-A SGRM-63LE-2-D16/30 | | | | SGRM-63LE-2-B20/ | 30-A SG 30-A SG 30-A SG 30-A SG 30-A SG 30-A SG | RM-63LE-2-C20/30-A SGRM-63LE-2-D20/30 | | | | SGRM-63LE-2-B25/ | | RM-63LE-2-C25/30-A SGRM-63LE-2-D25/30 | | | | SGRM-63LE-2-B32/ | | RM-63LE-2-C32/30-A SGRM-63LE-2-D32/30 | | | | SGRM-63LE-2-B40/ | | RM-63LE-2-C40/30-A SGRM-63LE-2-D40/30 | | | | SGRM-63LE-2-B50/ | | RM-63LE-2-C50/30-A SGRM-63LE-2-D50/30 | | | | SGRM-63LE-2-B63/ | | RM-63LE-2-C63/30-A SGRM-63LE-2-D63/30 | | | 6 10 16 Type A 20 25 100mA 32 40 50 63 6 10 16 20 25 300mA 32 40 50 63 | SGRM-63LE-2-B6/1 | 00-A SG 100-A SGR 100-A SGR 100-A SGR 100-A SGR 100-A SGR | RM-63LE-2-C6/100-A SGRM-63LE-2-D6/100 | 1 -A 0-A 0-A 0-A 0-A 0-A 0-A 0-A 0-A -A 0-A 0-A 0-A 0-A 0-A 0-A 0-A 0-A | | | SGRM-63LE-2-B10/ | | M-63LE-2-C10/100-A SGRM-63LE-2-D10/10 | | | | SGRM-63LE-2-B16/ | | M-63LE-2-C16/100-A SGRM-63LE-2-D16/10 | | | | SGRM-63LE-2-B20/ | | M-63LE-2-C20/100-A SGRM-63LE-2-D20/10 | | | | SGRM-63LE-2-B25/ | | M-63LE-2-C25/100-A SGRM-63LE-2-D25/10 | | | | SGRM-63LE-2-B32/ | | M-63LE-2-C32/100-A SGRM-63LE-2-D32/10 | | | | SGRM-63LE-2-B40/ | 100-A SGR 100-A SGR 100-A SGR 00-A SG 300-A SGR 300-A SGR | M-63LE-2-C40/100-A SGRM-63LE-2-D40/10 | | | | SGRM-63LE-2-B50/ | | M-63LE-2-C50/100-A SGRM-63LE-2-D50/10 | | | | SGRM-63LE-2-B63/ | | M-63LE-2-C63/100-A SGRM-63LE-2-D63/10 | | | | SGRM-63LE-2-B6/3 | | RM-63LE-2-C6/300-A SGRM-63LE-2-D6/300 | | | | SGRM-63LE-2-B10/ | | M-63LE-2-C10/300-A SGRM-63LE-2-D10/30 | | | | SGRM-63LE-2-B16/ | | M-63LE-2-C16/300-A SGRM-63LE-2-D16/30 | | | | SGRM-63LE-2-B20/ | 300-A SGR 300-A SGR 300-A SGR 300-A SGR 300-A SGR 300-A SGR | M-63LE-2-C20/300-A SGRM-63LE-2-D20/30 | | | | SGRM-63LE-2-B25/ | | M-63LE-2-C25/300-A SGRM-63LE-2-D25/30 | | | | SGRM-63LE-2-B32/ | | M-63LE-2-C32/300-A SGRM-63LE-2-D32/30 | | | | SGRM-63LE-2-B40/ | | M-63LE-2-C40/300-A SGRM-63LE-2-D40/30 | | | | SGRM-63LE-2-B50/ | | M-63LE-2-C50/300-A SGRM-63LE-2-D50/30 | | | | SGRM-63LE-2-B63/ | | M-63LE-2-C63/300-A SGRM-63LE-2-D63/30 | | <!-- source-page:5 --> SGRi Series Residual Current Circuit Breaker SGRi-2P + SGRi-4P + Rated current(A) IΔn 25 SGRi-2/25/30-A-S 32 SGRi-2/32/30-A-S 40 SGRi-2/40/30-A-S 63 SGRi-2/63/30-A-S 80 SGRi-2/80/30-A-S 100 SGRi-2/100/30-A-S 25 SGRi-2/25/100-A-S 32 SGRi-2/32/100-A-S 40 SGRi-2/40/100-A-S 63 SGRi-2/63/100-A-S 80 SGRi-2/80/100-A-S 100 SGRi-2/100/100-A-S 25 SGRi-2/25/300-A-S 32 SGRi-2/32/300-A-S 40 SGRi-2/40/300-A-S 63 SGRi-2/63/300-A-S 80 SGRi-2/80/300-A-S 100 SGRi-2/100/300-A-S 25 SGRi-4/25/30-A-S 32 SGRi-4/32/30-A-S 40 SGRi-4/40/30-A-S 63 SGRi-4/63/30-A-S 80 SGRi-4/80/30-A-S 100 SGRi-4/100/30-A-S 25 SGRi-4/25/100-A-S 32 SGRi-4/32/100-A-S 40 SGRi-4/40/100-A-S 63 SGRi-4/63/100-A-S 80 SGRi-4/80/100-A-S 100 SGRi-4/100/100-A-S 25 SGRi-4/25/300-A-S 32 SGRi-4/32/300-A-S 40 SGRi-4/40/300-A-S 63 SGRi-4/63/300-A-S 80 SGRi-4/80/300-A-S 100 SGRi-4/100/300-A-S Type A+S + 30mA 100mA 300mA 30mA 100mA 300mA Packing unit 6 3 <!-- source-page:6 --> SGRi Series Residual Current Circuit Breaker Rated current(A) IΔn 25 SGRi-2/25/30-A SGRi-2/25/30 32 SGRi-2/32/30-A SGRi-2/32/30 40 SGRi-2/40/30-A SGRi-2/40/30 63 SGRi-2/63/30-A SGRi-2/63/30 80 SGRi-2/80/30-A SGRi-2/80/30 100 SGRi-2/100/30-A SGRi-2/100/30 25 SGRi-2/25/100-A SGRi-2/25/100 32 SGRi-2/32/100-A SGRi-2/32/100 40 SGRi-2/40/100-A SGRi-2/40/100 63 SGRi-2/63/100-A SGRi-2/63/100 80 SGRi-2/80/100-A SGRi-2/80/100 100 SGRi-2/100/100-A SGRi-2/100/100 25 SGRi-2/25/300-A SGRi-2/25/300 32 SGRi-2/32/300-A SGRi-2/32/300 SGRi-2P 40 SGRi-2/40/300-A SGRi-2/40/300 63 SGRi-2/63/300-A SGRi-2/63/300 80 SGRi-2/80/300-A SGRi-2/80/300 100 SGRi-2/100/300-A SGRi-2/100/300 25 SGRi-4/25/30-A SGRi-4/25/30 32 SGRi-4/32/30-A SGRi-4/32/30 40 SGRi-4/40/30-A SGRi-4/40/30 63 SGRi-4/63/30-A SGRi-4/63/30 80 SGRi-4/80/30-A SGRi-4/80/30 100 SGRi-4/100/30-A SGRi-4/100/30 25 SGRi-4/25/100-A SGRi-4/25/100 32 SGRi-4/32/100-A SGRi-4/32/100 40 SGRi-4/40/100-A SGRi-4/40/100 63 SGRi-4/63/100-A SGRi-4/63/100 80 SGRi-4/80/100-A SGRi-4/80/100 100 SGRi-4/100/100-A SGRi-4/100/100 25 SGRi-4/25/300-A SGRi-4/25/300 32 SGRi-4/32/300-A SGRi-4/32/300 SGRi-4P 40 SGRi-4/40/300-A SGRi-4/40/300 63 SGRi-4/63/300-A SGRi-4/63/300 80 SGRi-4/80/300-A SGRi-4/80/300 100 SGRi-4/100/300-A SGRi-4/100/300 Type AC Type A 30mA 100mA 300mA 30mA 100mA 300mA Packing unit 6 3 <!-- source-page:7 --> SGRi Series Residual Current Circuit Breaker Life 25,32 2000 40,63,80,100 2000 2000 1000 240 120 Breaking time of residual current 25,32,40,63,80,100 0.03,0.1,0.3 0.1s 0.08s 0.04s Leakage type A,AC 0.04s 0.1,0.3 0.13s-0.5s 0.06s-0.2s 0.05s-0.15s S 0.05s-0.15s Wiring (The suitable conductors should be used for connection,see table below for relative parameters) Cross section area s(mm2) Tightening torque(N.m) Rated current In (A) Features When designing residual current devices, manufacturing technology and type of routine tests, the lEC / EN 61008-1 standards were considered.Important features are: Up to date design User-friendly connection of conductors and busbars Resistance to current surges; unwanted tripping excluded Simple and solid fixing to a 35 mm mounting rail in compliance with EN 60715 Additional colour display of main contacts position (red:contacts closed, green:contacts open) Type S :Selective type, RCD with non-operation time of atleast 40 ms ·High resistance to peak current up to 5 kA (lEC standardsrequire 3 kA). ·Meets conditions for tripping time 0.4 or 0.2 s (automatic disconnection). ·Type S is used as main circuit breaker or in combinationwith class Il (C) surge voltage protectors. ·Significantly reduces unwanted trippings. Overall and mounting dimensions Operating cycles In Operating frequency (operations/h) On-load operating cycles Off-load operating cycles Max.breaking time In(A) IΔn(A) IΔn 2 IΔn 5 IΔn 5-500A 4 25 6 32 10 40 2.5 16 63 25 80 35 100 SGRi
