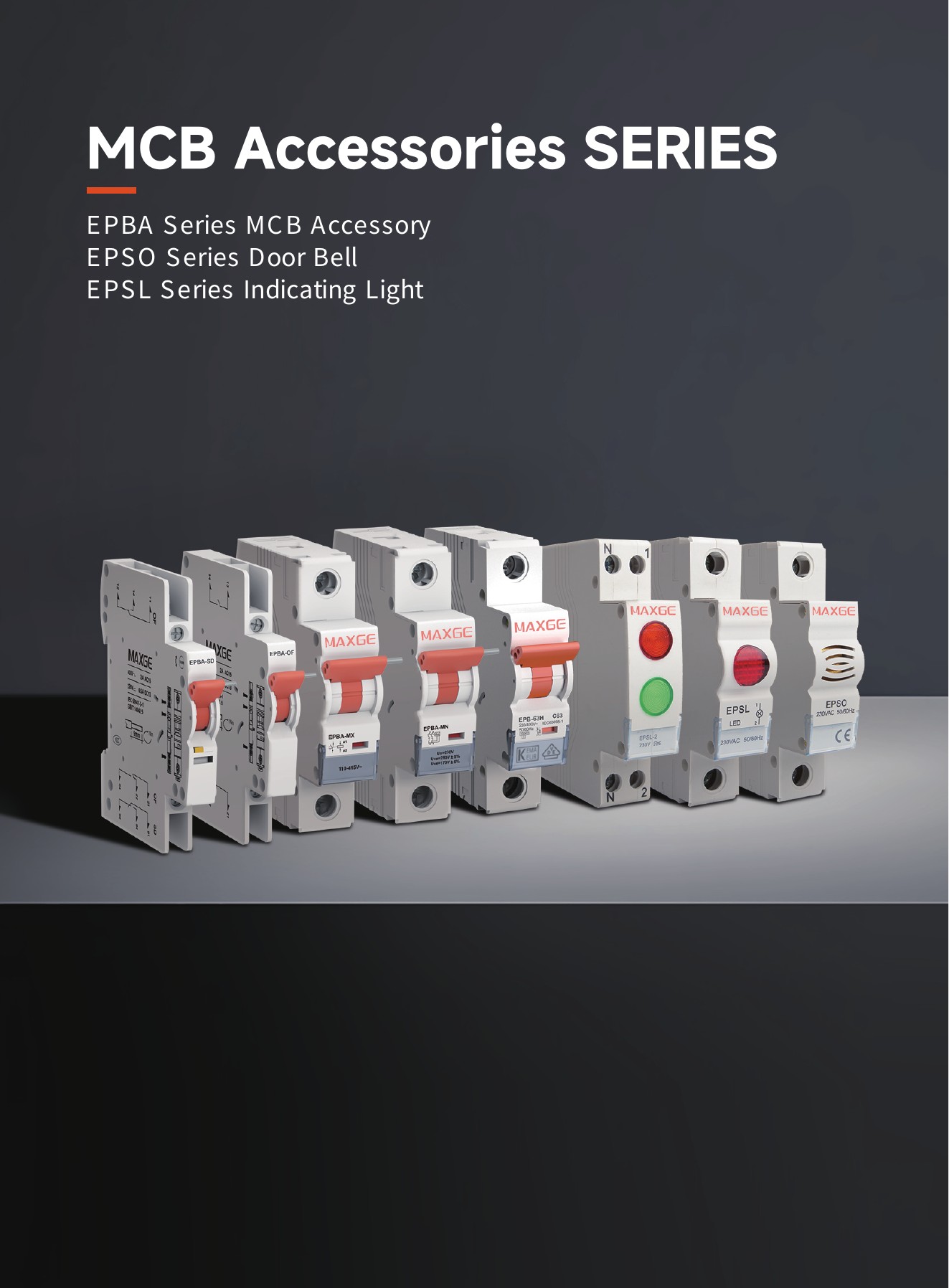

# EPSL-2 Series <!-- source-page:1 --> MCB Accessories SERIES EPBA Series MCB Accessory EPSO Series Door Bell EPSL Series Indicating Light <!-- source-page:2 --> EPSL-2 Series Indicating Light With Two Lights | Standard | EN/IEC60947-5-1 | | --- | --- | | Rated current AC12(A) | 20 | | Electric ratings | Up to AC 230V 50/60Hz | | Rated insulation Voltage Ui(V) | 500 | | illumination | LED,Incandescence,neon | | Life | Incandescence lamp ≥1000h Neon lamp ≥2000h LED ≥30000h | | Ambient temperature(°C) | -5~+40,max.95% humidity | | Storage temperature(°C) | -40~+75 | | Connection capacity(mm2) | 1-16 | | Color | Red+Green | | Type of terminal | Pin type | | Protection degree | IP20 | | Mounting | 35mm DIN rail |
