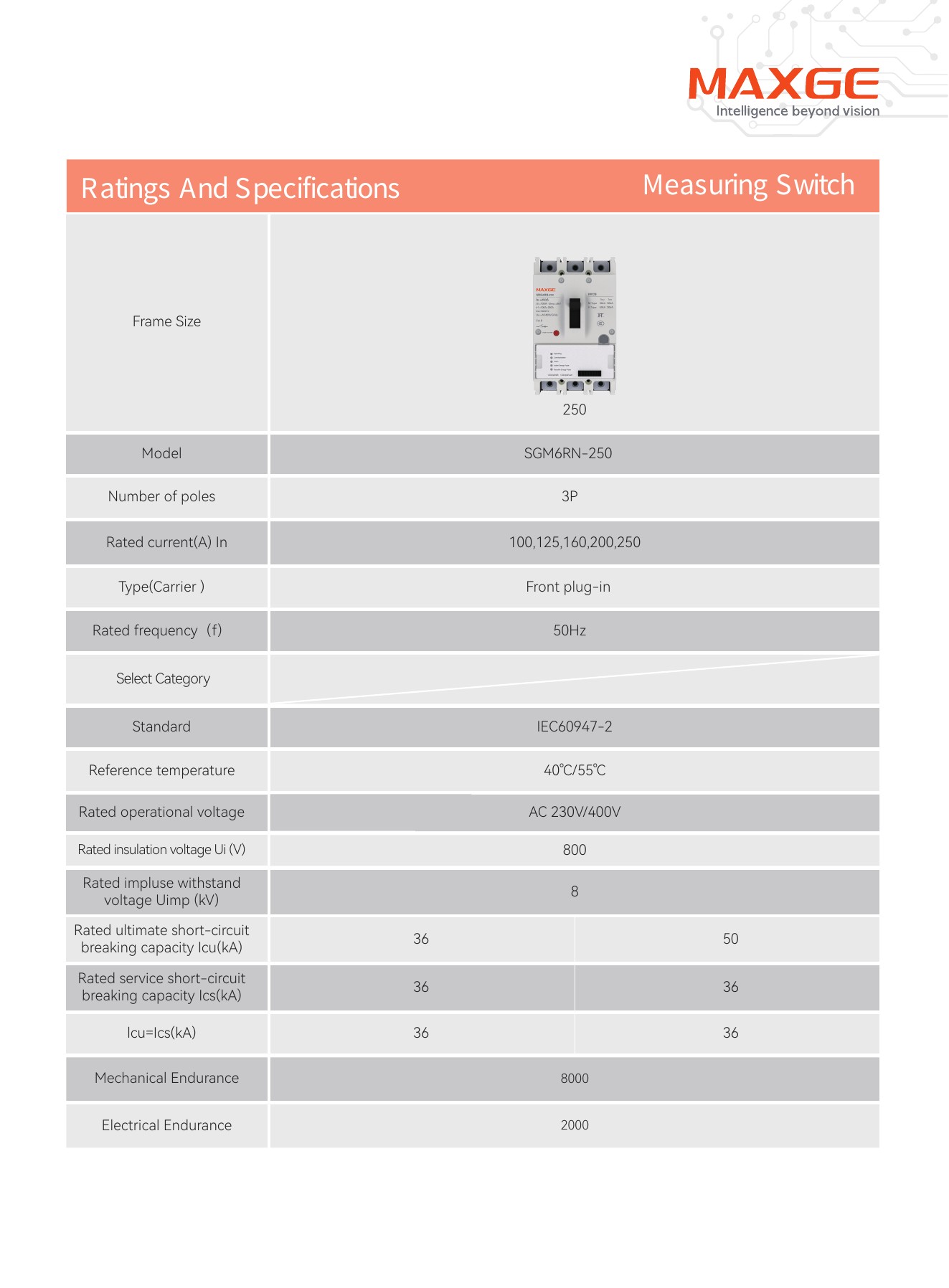

# SGM6RN-250 <!-- source-page:1 --> Ratings And Specifications Frame Size Model SGM6RN-250 Number of poles 3P Rated current(A) In Type(Carrier ) Rated frequency（f） 50Hz Select Category Standard IEC60947-2 Reference temperature 40℃/55℃ Rated operational voltage Rated insulation voltage Ui (V) 800 Rated impluse withstand voltage Uimp (kV) 8 Rated ultimate short-circuit breaking capacity Icu(kA) Rated service short-circuit breaking capacity Ics(kA) lcu=Ics(kA) 8000 Mechanical Endurance Electrical Endurance 2000 36 36 36 250 100,125,160,200,250 Front plug-in AC 230V/400V Measuring Switch 50 36 36 <!-- source-page:2 --> Product Dimension Drawing Measuring Switch SGM6RN-250 23 160 142 35±0.5 4- 4.40 180max 35±0.5 35±0.5 107 121max 100 82.5
