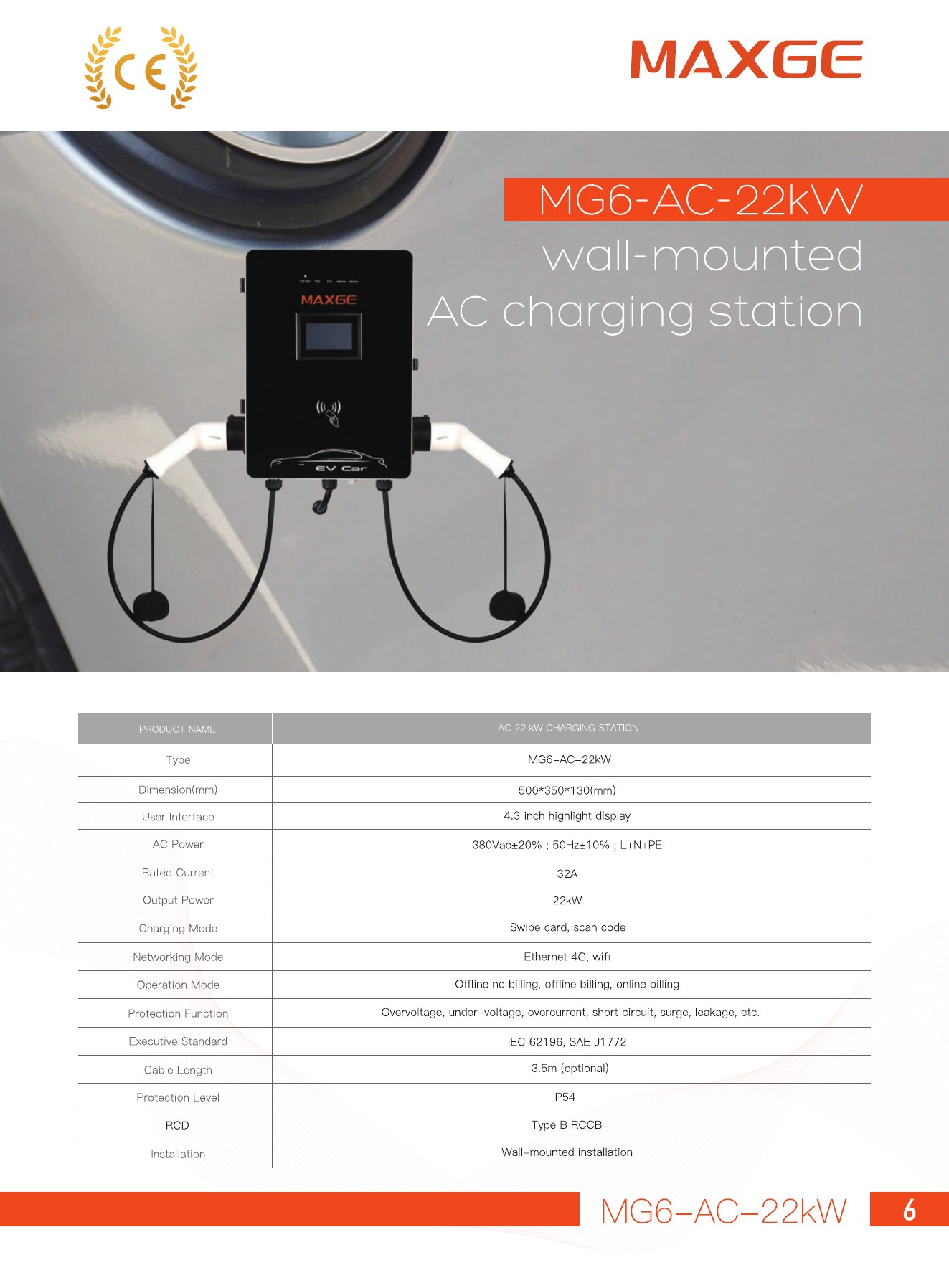

# MG6 Wall Mounted AC Charging Station <!-- source-page:1 --> CE MAXGE MG6-AC-22kW wall-mounted MAXGE AC charging station (Q) EV C lar PRODUCT NAME AC 22 KW CHARGING STATION Type MG6-AC-22kW Dimension(mm) 500*350*130(mm) User Interface 4.3 inch highlight display AC Power 380Vac±20%；50Hz±10%；L+N+PE Rated Current 32A Output Power 22kW Charging Mode Swipe card， scan code Networking Mode Ethernet 4G， wif Operation Mode Offline no billing， offline billing， online billing Protection Function Overvoltage，under-voltage， overcurrent， short circuit， surge， leakage， etc. Executive Standard IEC 62196， SAE J1772 Cable Length 3.5m (optional) Protection Level IP54 RCD Type B RCCB Installation Wall-mounted installation MG6-AC-22kW 6
