# SGV2-I-ME-PM Series

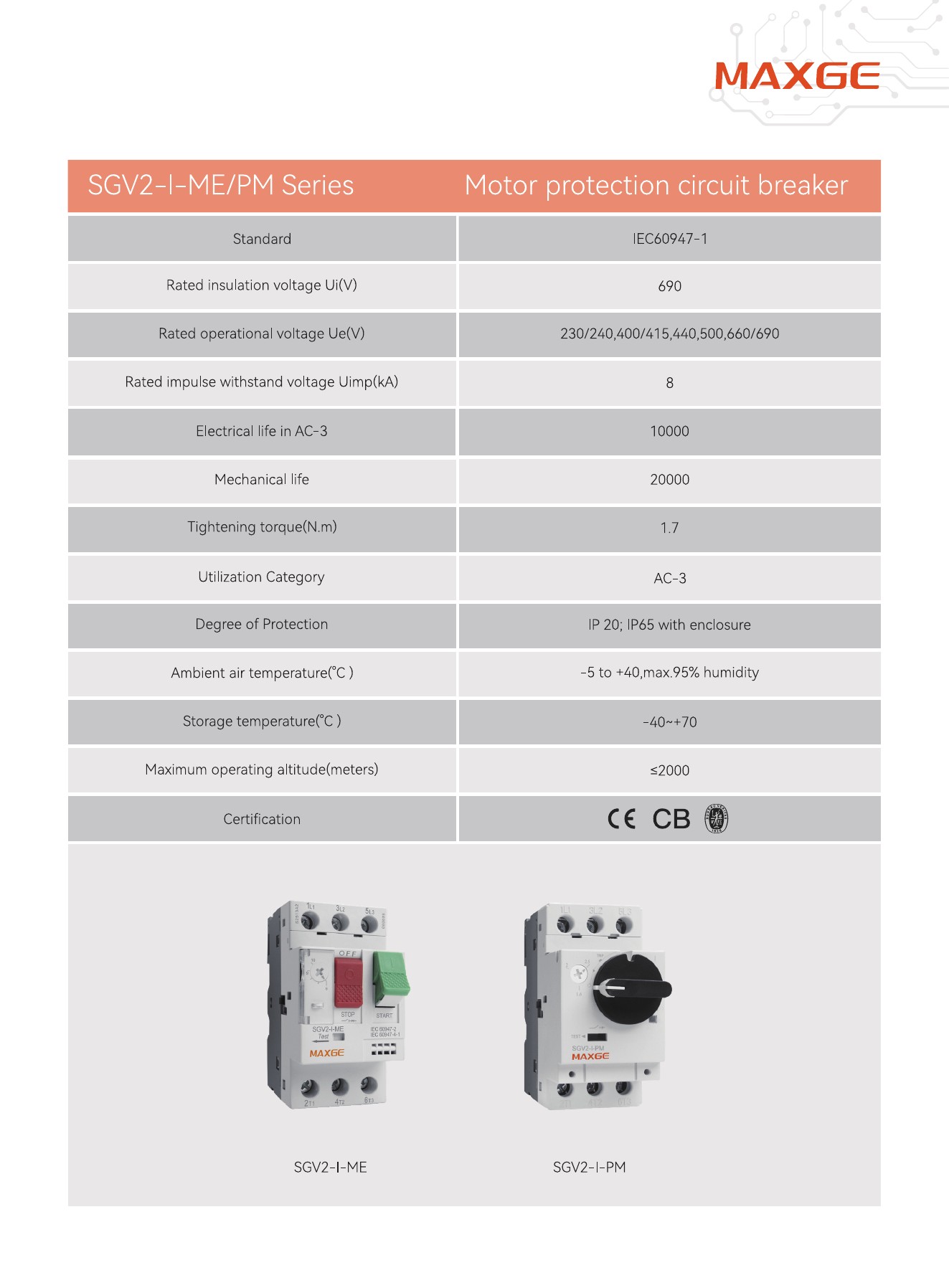

MAXGE SGV2-I-ME/PM Series Motorprotection circuit breaker Standard IEC60947-1 Rated insulation voltage Ui(V) 690 Rated operational voltage Ue(V) 230/240，400/415，440，500，660/690 Rated impulse withstand voltage Uimp(kA) 8 Electrical life in AC-3 10000 Mechanical life 20000 Tightening torque(N.m) 1.7 Utilization Category AC-3 Degree of Protection IP 20； IP65 with enclosure Ambient air temperature(C) -5 to +40，max.95%humidity Storage temperature(°C) -40~+70 Maximum operating altitude(meters) ≤2000 Certification CE CB OFF STOP START SGV2-I-ME Test EC MAXGE SGV2-1-PM MAXGE 211 4T2 6T3 SGV2-I-ME SGV2-I-PM

MAXGE SGV2-I-ME/PM Series Motorprotection circuit breaker Technical specifications for SGV2-I-ME Instantaneous Standard rated power of three-phase(kW) lype Current setting Thermal range(A) short-circuit release(A) current lth(A) 230/240V 400V 415V 440V SGV2-I-ME01 0.1-0.16 1.5 0.16 SGV2-I-ME02 0.16-0.25 2.4 0.25 SGV2-I-ME03 0.25-0.4 5.0 0.4 SGV2-I-ME04 0.4-0.63 8.0 0.63 SGV2--ME05 0.63-1 13.0 1 0.37 SGV2-I-ME06 1-1.6 22.5 1.6 0.37 0.55 SGV2--ME07 1.6-2.5 33.5 2.5 0.37 0.75 0.75 1.10 SGV2--ME08 2.5-4 51.0 4 0.75 1.50 1.50 1.50 SGV2-I-ME10 4-6.3 78.0 6.3 1.10 2.20 2.20 3.00 SGV2-I-ME14 6-10 138 9 2.20 4.00 4.00 4.00 SGV2--ME16 9-14 170 13 3.00 5.50 5.50 7.50 SGV2-I-ME20 13-18 223 4.00 7.50 9.00 9.00 SGV2--ME21 17-23 327 5.50 11.00 11.00 11.00 SGV2-I-ME22 20-25 327 5.50 11.00 11.00 11.00 SGV2-I-ME32 24-32 416 7.50 15.00 15.00 15.00 SGV3-I-ME40 25-40 480 11.00 18.50 22.00 22.00 SGV3-I-ME63 40-63 550 15.00 30.00 33.00 33.00 SGV3-I-ME80 56-80 665.5 22.00 40.00 45.00 45.00 Technical specifications for SGV2-I-PM Instantaneous Standard rated power of three-phase(kW) Type Current setting Thermal range(A) short-circuit release(A) current lth(A) 230/240V 400V 415V 440V SGV2-I-PM01 0.1-0.16 1.5 0.16 SGV2-I-PM02 0.16-0.25 2.4 0.25 SGV2-I-PM03 0.25-0.4 5.0 0.4 SGV2-I-PM04 0.4-0.63 8.0 0.63 SGV2-I-PM05 0.63-1 13.0 1 0.37 SGV2-I-PM06 1-1.6 22.5 1.6 0.37 0.55 SGV2-I-PM07 1.6-2.5 33.5 2.5 0.37 0.75 0.75 1.10 SGV2-I-PM08 2.5-4 51.0 4 0.75 1.50 1.50 1.50 SGV2-I-PM10 4-6.3 78.0 6.3 1.10 2.20 2.20 3.00 SGV2-I-PM14 6-10 138 9 2.20 4.00 4.00 4.00 SGV2-I-PM16 9-14 170 3.00 5.50 5.50 7.50 SGV2-I-PM20 13-18 223 4.00 7.50 9.00 9.00 SGV2--PM21 17-23 327 5.50 11.00 11.00 11.00 SGV2-I-PM22 20-25 327 5.50 11.00 11.00 11.00 SGV2-I-PM32 24-32 416 7.50 15.00 15.00 15.50

MAXGE SGV2-I-ME/PM Series Motorprotection circuit breaker SGV2-I-ME/PM lype 01-06 08 21&22 Rated Current(A) 0.1-1.6 4 23&25 230/240V ICU ★ ★ ★ ★ ★ ★ ★ 50 lcs ★ ★ ★ ★ 100 100 %(1) 400/415V lcu kA ★ ★ ★ ★ ★ ICS ★ ★ ★ ★ %(1) Breaking Capacity 440V ICU kA ★ ★ ★ 50 15 8 8 6 6 Comply to ICS ★ 100 100 50 50 50 50 IEC60947-2 %(1) 500V lcu kA ★ ★ ★ 50 10 6 6 4 4 Ics ★ ★ 100 100 75 75 75 75 %(1) 690V ICU kA ★ 3 3 3 3 3 3 3 3 Ics ★ 75 75 75 75 75 75 75 75 %(1) t(s) 10000 Auxiliary contact UVR Dimension(mm) 1000 olo IOO IOO 100 h2 W1 w2 10 88 44.5 18 .1 D w1 上W2 SGV2-I-ME 0.1 DZS12-AD，AM.AN模块 0.01 DZS12-AUAS模块 0.001 LOOO 11 88 QQQ Dk oQ 1 1.5 10 100 MIn 品 l(kA) 100 0oo II 880o6 26 44 44，5 9.3 9.3 b 2 15 76 义 81(1) SGV2--PM 10 8 公 8 T 4x03.5 043 品 1 1.5...5 8 54 53 129-278 B 1 0.1 0.1 10 15 100 SGV2-I-PMN 1(kA)

MAXGE Auxiliary Devices Motorprotection circuit breaker Rated Voltage Rated Rated Votage-release Type operational range of insulation voltage Ue(V) operation volage Ui(V) frequency(Hz) SGV2-I-ME AU115 110-127 35%-70%Ue 690 50/60 SGV2-I-ME AU225 220-240 35%-70%Ue 690 50/60 SGV2-I-ME AU385 380-415 35%-70%Ue 690 50/60 Conventional Auxiliary contact Type Mounting Type Auxiliary Contacts thermal curent Ith(A) SGV2-I-AE11 Top 1 2.5 22 SGV2-I-AE20 Top 2 0 2.5 SGV2-I-ME Side 1 1 6 AN11 SGV2-I-ME Side 2 0 6 AN20 Material Suitable Enclosure Type Protection of degree SGV2--M Plastic box Screen Wear resistance SGV2-I-MEE IP65 of UV rays Slicon Up to 32A and non-flammable
