# SGM6e-160

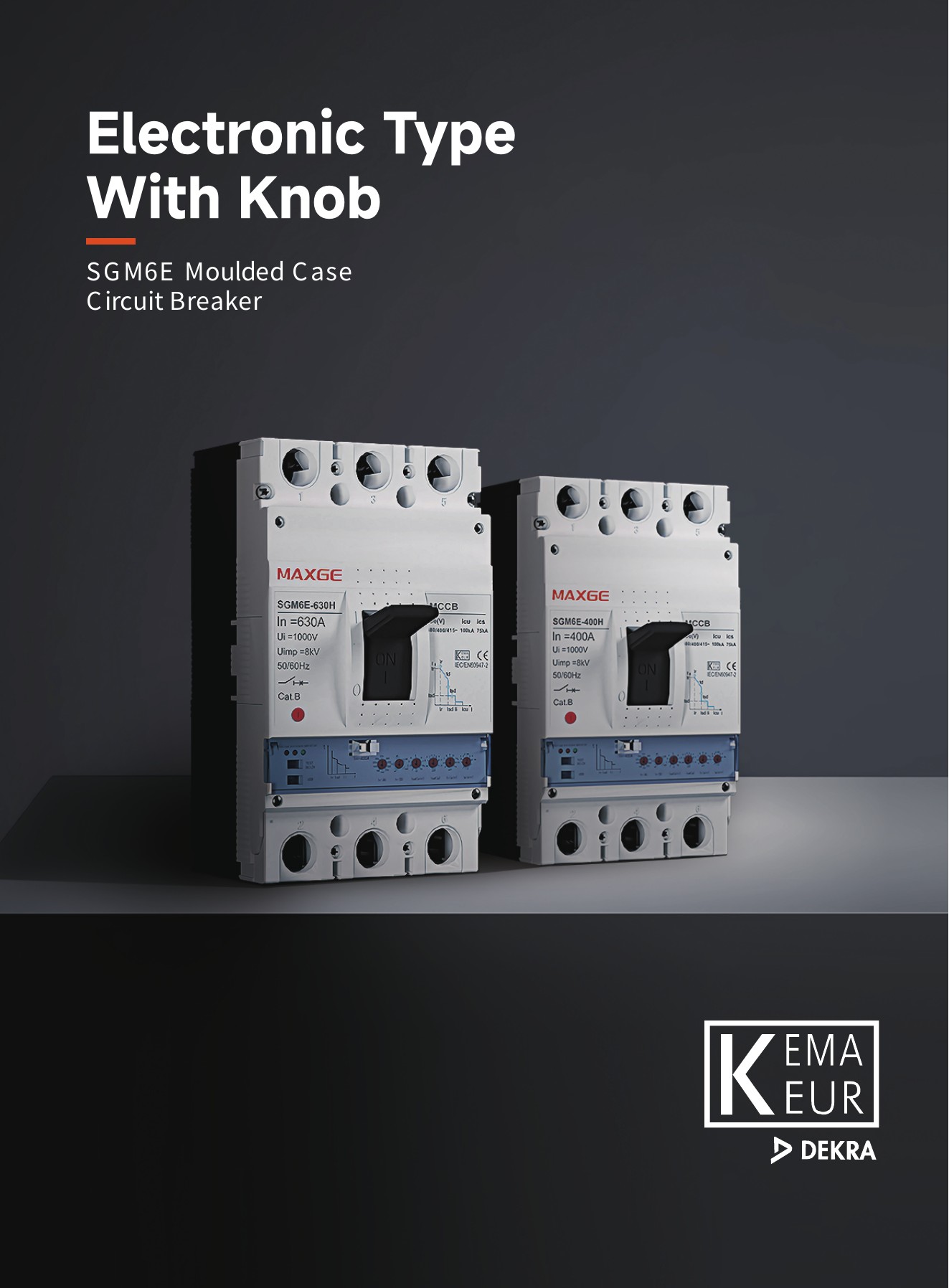

Electronic Type With Knob SGM6E Moulded Case Circuit Breaker

[No machine-readable text on this page.]

Product Dimension Drawing Electronic Type With Knob

SGM6E 160,250,400,630 800/1000（3P/4P)

| SGM6 Dimensions mm(L×W×H) |  |  |  |  |  |
| --- | --- | --- | --- | --- | --- |
| Frame Size |  | 160 | Frame Size |  | 160 |
| 3P | Leng Wid Heig | th 155 | 4P | Length | 155 |
|  |  | th 92 |  | Width | 122 |
|  |  | ht 99 |  | Height | 99 |

Setting Parameters Electronic Type With Knob Frame Size SGM6E-160A Rated current In(A) 63 25-28-32 36-40-45 50-56-60 63A Ir(A) Long Delay Current Setting 12-60-100-150 sec + OFF tr(S) Long Delay Time Isd(A) Short Circuit Protection Of Low Level Faults tsd (S) short time Ii(A) Short Circuit Protection Of High level Faults Ip(A) Pre Trip Alarm Setting Multiple For 4p Ig(A) Ground Fault Pickup Current Fixed for 0.4sec For 4p tg(S) Ground Fault Pickup Time

160 100 125 63-70-75 80-90-100 125-140-150 160A 40-45-50 56-63-70 75-80-90 100A 50-63-70 75-80-85 90-95-100 125A

2-2.5-3-4-5-6-7-8-10x Ir(A)

0.06-0.1-0.2-0.3- 0.4-0.5-1.0 sec + OFF

4-5-6-7-8-9-10-11-12 x Ir(A)+ OFF

0.7-0.75-0.8-0.85-0.9-0.95 1.0 x Ir(A)

0.2-0.3-0.4-0.5-0.6-0.7-0.8-0.9 1.0 x In+ OFF
