# IER-100H

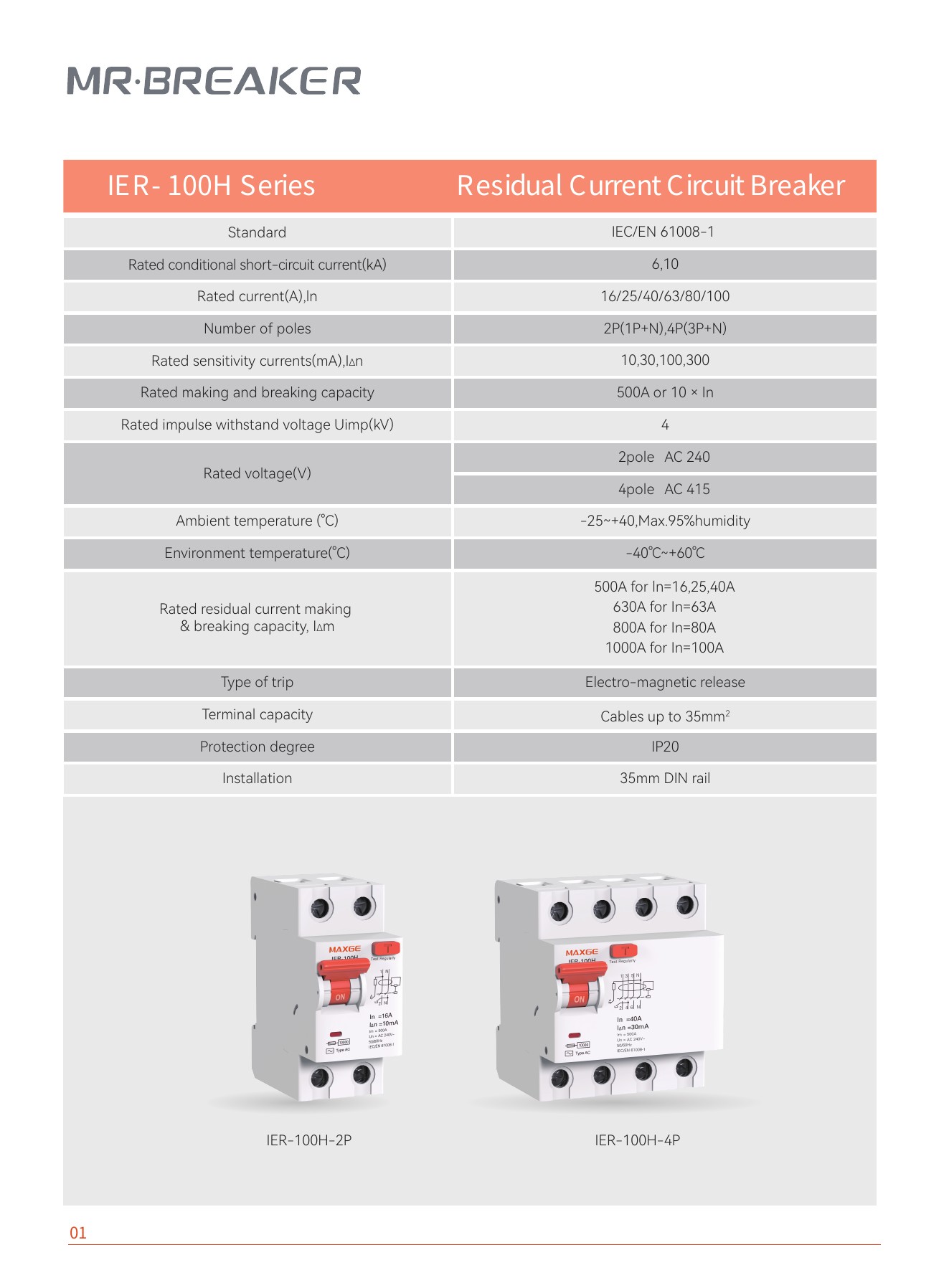

IER-100H Series Residual Current Circuit Breaker Standard IEC/EN 61008-1 Rated conditional short-circuit current(kA) 6,10 Rated current(A),ln 16/25/40/63/80/100 Number of poles 2P(1P+N),4P(3P+N) Rated sensitivity currents(mA),IΔn 10,30,100,300 Rated making and breaking capacity 500A or 10 × In Rated impulse withstand voltage Uimp(kV) 4 Rated voltage(V) AC 240 2pole

Ambient temperature (°C) -25~+40,Max.95%humidity Environment temperature(°C) -40℃~+60℃

Rated residual current making & breaking capacity, IΔm

Type of trip Electro-magnetic release Terminal capacity Cables up to 35mm2 Protection degree IP20 Installation 35mm DIN rail

IER-100H-2P IER-100H-4P

AC 415 4pole

500A for ln=16,25,40A 630A for In=63A 800A for In=80A 1000A for In=100A

IER-100H Series Residual Current Circuit Breaker Packing unit Rated current(A) IΔn Type A Type A+S + Type AC 10mA 16 IER-100/2/16/10 IER-100/2/16/10-A IER-100/2/16/10-A-S 25 IER-100/2/25/10 IER-100/2/25/10-A IER-100/2/25/10-A-S 16 IER-100/2/16/30 IER-100/2/16/30-A IER-100/2/16/30-A-S 25 IER-100/2/25/30 IER-100/2/25/30-A IER-100/2/25/30-A-S 40 IER-100/2/40/30 IER-100/2/40/30-A IER-100/2/40/30-A-S 30mA 63 IER-100/2/63/30 IER-100/2/63/30-A IER-100/2/63/30-A-S 80 IER-100/2/80/30 IER-100/2/80/30-A IER-100/2/80/30-A-S 100 IER-100/2/100/30 IER-100/2/100/30-A IER-100/2/100/30-A-S 16 IER-100/2/16/100 IER-100/2/16/100-A IER-100/2/16/100-A-S 25 IER-100/2/25/100 IER-100/2/25/100-A IER-100/2/25/100-A-S 6 ON 40 IER-100/2/40/100 IER-100/2/40/100-A IER-100/2/40/100-A-S 100mA 63 IER-100/2/63/100 IER-100/2/63/100-A IER-100/2/63/100-A-S 80 IER-100/2/80/100 IER-100/2/80/100-A IER-100/2/80/100-A-S 100 IER-100/2/100/100 IER-100/2/100/100-A IER-100/2/100/100-A-S 16 IER-100/2/16/300 IER-100/2/16/300-A IER-100/2/16/300-A-S IER-100H-2P 25 IER-100/2/25/300 IER-100/2/25/300-A IER-100/2/25/300-A-S 40 IER-100/2/40/300 IER-100/2/40/300-A IER-100/2/40/300-A-S 300mA 63 80 IER-100/2/63/300 IER-100/2/63/300-A IER-100/2/63/300-A-S IER-100/2/80/300 IER-100/2/80/300-A IER-100/2/80/300-A-S 100 IER-100/2/100/300 IER-100/2/100/300-A IER-100/2/100/300-A-S 10mA 16 IER-100/4/16/10 IER-100/4/16/10-A IER-100/4/16/10-A-S 25 IER-100/4/25/10 IER-100/4/25/10-A IER-100/4/25/10-A-S 16 IER-100/4/16/30 IER-100/4/16/30-A IER-100/4/16/30-A-S 25 IER-100/4/25/30 IER-100/4/25/30-A IER-100/4/25/30-A-S 40 IER-100/4/40/30 IER-100/4/40/30-A IER-100/4/40/30-A-S 30mA 63 IER-100/4/63/30 IER-100/4/63/30-A IER-100/4/63/30-A-S 80 IER-100/4/80/30 IER-100/4/80/30-A IER-100/4/80/30-A-S 100 IER-100/4/100/30 IER-100/4/100/30-A IER-100/4/100/30-A-S 16 IER-100/4/16/100 IER-100/4/16/100-A IER-100/4/16/100-A-S ON 25 IER-100/4/25/100 IER-100/4/25/100-A IER-100/4/25/100-A-S 3 40 IER-100/4/40/100 IER-100/4/40/100-A IER-100/4/40/100-A-S 100mA 63 IER-100/4/63/100 IER-100/4/63/100-A IER-100/4/63/100-A-S 80 IER-100/4/80/100 IER-100/4/80/100-A IER-100/4/80/100-A-S 100 IER-100/4/100/100 IER-100/4/100/100-A IER-100/4/100/100-A-S 16 IER-100/4/16/300 IER-100/4/16/300-A IER-100/4/16/300-A-S IER-100H-4P 25 IER-100/4/25/300 IER-100/4/25/300-A IER-100/4/25/300-A-S 40 IER-100/4/40/300 IER-100/4/40/300-A IER-100/4/40/300-A-S 300mA 63 80 IER-100/4/63/300 IER-100/4/63/300-A IER-100/4/63/300-A-S IER-100/4/80/300 IER-100/4/80/300-A IER-100/4/80/300-A-S 100 IER-100/4/100/300 IER-100/4/100/300-A IER-100/4/100/300-A-S 02

IER-100H Series Residual Current Circuit Breaker Life

16,25,40,63,80,100 6000 4000 Breaking time of residual current

In(A) IΔn(A) IΔn 2 IΔn 5 IΔn 5-500A 16/25/40/63/80/100 0.01,0.03,0.1,0.3 0.1s 0.08s 0.04s 0.04s Wiring (The suitable conductors should be used for connection,see table below for relative parameters) Cross section area s(mm2) Tightening torque(N.m) Rated current In (A)

Features When designing residual current devices, manufacturing technology and type of routine tests, the IEC61008-1 standards were considered.Important features are: Up to date design User-friendly connection of conductors and busbars Resistance to current surges; unwanted tripping excluded Simple and solid fixing to a 35 mm mounting rail in compliance with EN 60715 Additional colour display of main contacts position (red:contacts closed, green:contacts open) Overall and mounting dimensions

In Operating cycles On-load operating cycles Off-load operating cycles

Max.breaking time

16 4 25 10 40 16 63 25 80 35 100

35.5±0.5 71±0.5

81.5±0.5

2.5

50.2±0.5

35.7±0.5

73±0.5

max 5

84.7±0.5 45±0.5

IER-100H Series Residual Current Circuit Breaker Core Advantages

IER-100H ON ON

Fast Clip OFF High Torque Terminal (5Nm) Safety Lock

Dual Top & Bottom Busbar Connections Anti-misinsertion

Detailed Descriptions 1. Fast Clip Simple and reliable modular design requiring no additional tools or accessories. 2. Enhanced Safety Lock Integrated lock mechanism to prevent accidental operation and improve safety. 3. Flexible Busbar Configuration Versatile design supports systems without a busbar, with a single busbar, or with dual busbars. 4. High Torque Terminal (5Nm) Upgraded terminals allow for a maximum torque of 5Nm, ensuring superior connection integrity. 5. Anti-misinsertion Unique terminal structure prevents incorrect wiring insertion. 04
