# SGMR-40D Series

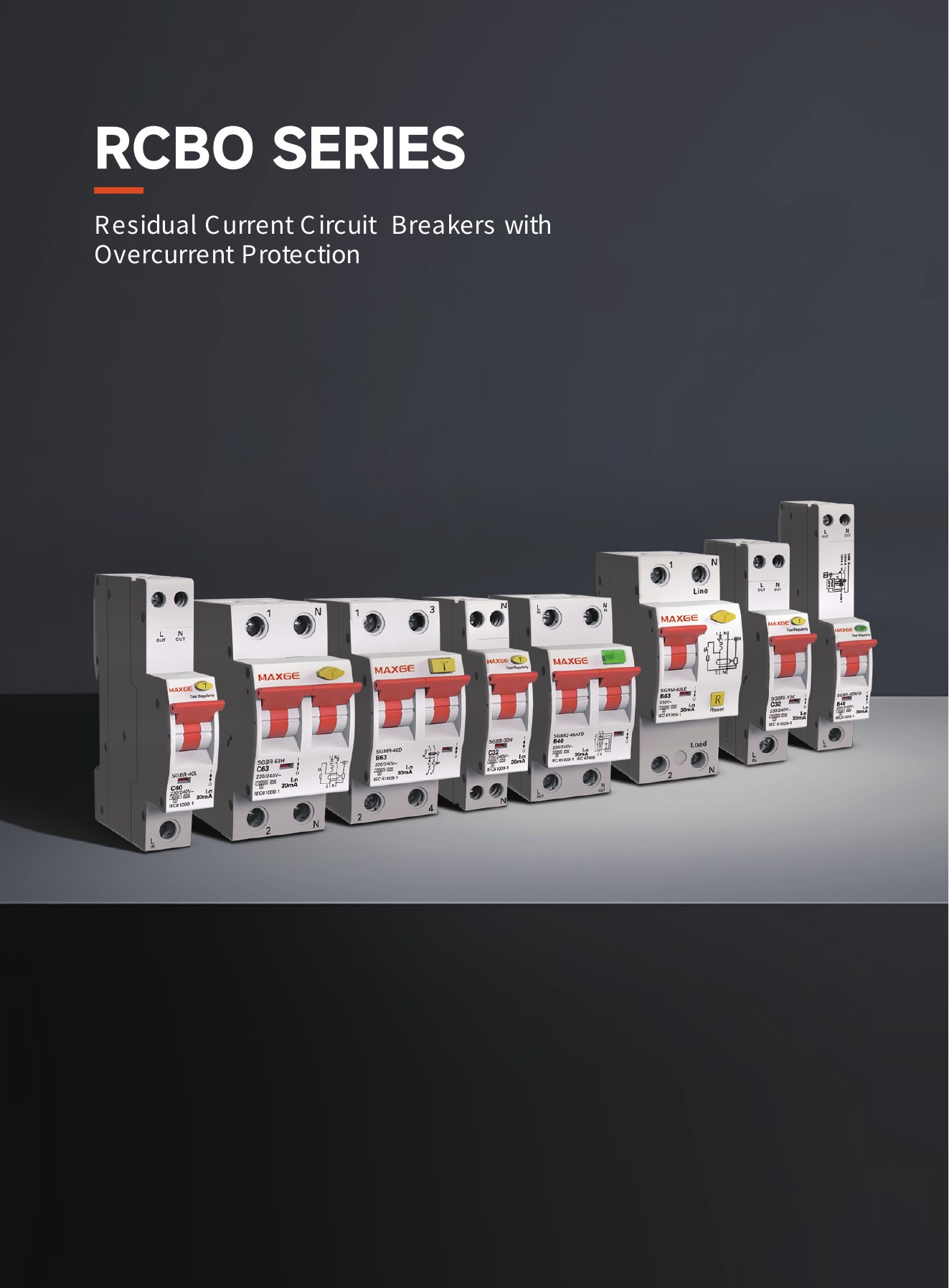

RCBO SERIES Residual Current Circuit Breakers with Overcurrent Protection

Products Overview of Residual Current Protective Devices

Product name RCBO

| Product range | SGMR-40D |
| --- | --- |
| Product picture |  |

| Standard | IEC/EN 61009-1 |
| --- | --- |
| Number of poles | 2P |
| Electrical characteristics |  |
| Rated current(A) In | 6~40 |
| Rated voltage(V) | AC 230/240 |
| Rated residual current(mA) | 30,100,300 |
| Rated conditional shor-t circuit current(kA) | 6,10 |
| Tripping curev | B,C |
| Residual current operating characteristic | AC,A,A+G |
| Catalogue page NO. | 29-32 |

SGMR-40D Series Residual Current Circuit Breakers with Overcurrent Protection

| Standard |  | EN/IEC 61009-1 |
| --- | --- | --- |
| Rated conditional shor-t circuit current(kA) |  | 6,10 |
| Rated current(A),ln |  | 6,10,13,15,16,20,25,32,40 |
| Number of poles |  | 2P |
| Rated sensitivity currents(mA),IΔn |  | 30,100,300 |
| Tripping curev |  | B,C |
| Rated residual non-operating current |  | 0.5XIΔn |
| Rated impulse withstand voltage Uimp(kV) |  | 4 |
| Rated voltage(V) |  | AC 230/240 |
| Ambient temperature (°C) |  | -25~+40,Max.95%humidity |
| Residual current off time |  | ≤0.1s |
| Type of trip | Ground fault | Electro-magnetic |
|  | Over current | Thermal-magnetic |
| Electrical endurance |  | 4000 |
| Mechanical endurance |  | 10000 |
| Terminal capacity |  | 16mm2 flexible/25mm2 rigid |
| Protection degree |  | IP20 |
| Installation |  | 35mm DIN rail |
| SGMR-40D |  |  |

SGMR-40D Series Residual Current Circuit Breakers with Overcurrent Protection

|  | Rated current(A) | IΔn | Type AC |  |  |  | Type A |  |  |  | Packing unit |
| --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
|  |  |  | B curev | C curev |  |  | B curev | C curev |  |  |  |
| Type AC Type A | 6 | 30mA | SGMR-40D/B6/30 | SGMR-40D/C6/30 |  |  | SGMR-40D/B6/30-A | SGMR-40D/C6/30-A |  |  | 6 |
|  | 10 |  | SGMR-40D/B10/30 | SGMR-40D/C10/30 |  |  | SGMR-40D/B10/30-A | SGMR-40D/C10/30-A |  |  |  |
|  | 13 |  | SGMR-40D/B13/30 | SGMR-40D/C13/30 |  |  | SGMR-40D/B13/30-A | SGMR-40D/C13/30-A |  |  |  |
|  | 15 |  | SGMR-40D/B15/30 | SGMR-40D/C15/30 |  |  | SGMR-40D/B15/30-A | SGMR-40D/C15/30-A |  |  |  |
|  | 16 |  | SGMR-40D/B16/30 | SGMR-40D/C16/30 |  |  | SGMR-40D/B16/30-A | SGMR-40D/C16/30-A |  |  |  |
|  | 20 |  | SGMR-40D/B20/30 | SGMR-40D/C20/30 |  |  | SGMR-40D/B20/30-A | SGMR-40D/C20/30-A |  |  |  |
|  | 25 |  | SGMR-40D/B25/30 | SGMR-40D/C25/30 |  |  | SGMR-40D/B25/30-A | SGMR-40D/C25/30-A |  |  |  |
|  | 32 |  | SGMR-40D/B32/30 | SGMR-40D/C32/30 |  |  | SGMR-40D/B32/30-A | SGMR-40D/C32/30-A |  |  |  |
|  | 40 |  | SGMR-40D/B40/30 | SGMR-40D/C40/30 |  |  | SGMR-40D/B40/30-A | SGMR-40D/C40/30-A |  |  |  |
|  | 6 | 100mA | SGMR-40D/B6/100 | SGMR-40D/C6/100 |  |  | SGMR-40D/B6/100-A | SGMR-40D/C6/100-A |  |  |  |
|  | 10 |  | SGMR-40D/B10/100 | SGMR-40D/C10/100 |  |  | SGMR-40D/B10/100-A | SGMR-40D/C10/100-A |  |  |  |
|  | 13 |  | SGMR-40D/B13/100 | SGMR-40D/C13/100 |  |  | SGMR-40D/B13/100-A | SGMR-40D/C13/100-A |  |  |  |
|  | 15 |  | SGMR-40D/B15/100 | SGMR-40D/C15/100 |  |  | SGMR-40D/B15/100-A | SGMR-40D/C15/100-A |  |  |  |
|  | 16 |  | SGMR-40D/B16/100 | SGMR-40D/C16/100 |  |  | SGMR-40D/B16/100-A | SGMR-40D/C16/100-A |  |  |  |
|  | 20 |  | SGMR-40D/B20/100 | SGMR-40D/C20/100 |  |  | SGMR-40D/B20/100-A | SGMR-40D/C20/100-A |  |  |  |
|  | 25 |  | SGMR-40D/B25/100 | SGMR-40D/C25/100 |  |  | SGMR-40D/B25/100-A | SGMR-40D/C25/100-A |  |  |  |
|  | 32 |  | SGMR-40D/B32/100 | SGMR-40D/C32/100 |  |  | SGMR-40D/B32/100-A | SGMR-40D/C32/100-A |  |  |  |
|  | 40 |  | SGMR-40D/B40/100 | SGMR-40D/C40/100 |  |  | SGMR-40D/B40/100-A | SGMR-40D/C40/100-A |  |  |  |
|  | 6 | 300mA | SGMR-40D/B6/300 | SGMR-40D/C6/300 |  |  | SGMR-40D/B6/300-A | SGMR-40D/C6/300-A |  |  |  |
|  | 10 |  | SGMR-40D/B10/300 | SGMR-40D/C10/300 |  |  | SGMR-40D/B10/300-A | SGMR-40D/C10/300-A |  |  |  |
|  | 13 |  | SGMR-40D/B13/300 | SGMR-40D/C13/300 |  |  | SGMR-40D/B13/300-A | SGMR-40D/C13/300-A |  |  |  |
|  | 15 |  | SGMR-40D/B15/300 | SGMR-40D/C15/300 |  |  | SGMR-40D/B15/300-A | SGMR-40D/C15/300-A |  |  |  |
|  | 16 |  | SGMR-40D/B16/300 | SGMR-40D/C16/300 |  |  | SGMR-40D/B16/300-A | SGMR-40D/C16/300-A |  |  |  |
|  | 20 |  | SGMR-40D/B20/300 | SGMR-40D/C20/300 |  |  | SGMR-40D/B20/300-A | SGMR-40D/C20/300-A |  |  |  |
|  | 25 |  | SGMR-40D/B25/300 | SGMR-40D/C25/300 |  |  | SGMR-40D/B25/300-A | SGMR-40D/C25/300-A |  |  |  |
|  | 32 |  | SGMR-40D/B32/300 | SGMR-40D/C32/300 |  |  | SGMR-40D/B32/300-A | SGMR-40D/C32/300-A |  |  |  |
|  | 40 |  | SGMR-40D/B40/300 | SGMR-40D/C40/300 |  |  | SGMR-40D/B40/300-A | SGMR-40D/C40/300-A |  |  |  |

SGMR-40D Series Residual Current Circuit Breakers with Overcurrent Protection

| Product name |  |  |  |  |  |  |  |
| --- | --- | --- | --- | --- | --- | --- | --- |
|  |  |  | RCCB |  |  |  |  |
| Product range Product picture Standard Number of poles Rated current(A) In Rated voltage(V) Rated residual current Rated conditional shor-t circuit current(k Tripping curev Residual current operating characteris Catalogue page NO |  |  | SGR |  |  |  |  |
|  |  |  | IEC/EN 6100 | 8-1 |  |  |  |
|  |  |  | 2P(1P+N) | 4P(3P+N) |  |  |  |
|  |  |  | Electrical charac | teristics |  |  |  |
|  |  |  | 16~80 |  |  |  |  |
|  |  | 0,30,100, | AC 240 | AC 415 |  |  |  |
|  | (mA) 1 |  | 300 |  |  |  |  |
|  | A) |  | 6,10 |  |  |  |  |
|  |  |  | ------ |  |  |  |  |
|  | tic |  | AC,A,S |  |  |  |  |
|  | . |  | 03-05 |  |  |  |  |

SGMR-40D Series Residual Current Circuit Breakers with Overcurrent Protection Curves

Breaking time of residual current Max.breaking time In(A) IΔn(A) IΔn 2 IΔn 5 IΔn 5-500A 6-40 0.03,0.1,0.3 0.1s 0.08s 0.04s 0.04s Wiring (The suitable conductors should be used for connection,see table below for relative parameters) Cross section area s(mm2) Tightening torque(N.m) Rated current In (A) 1 6 1.5 10 1.5 13 2.5 16-20 6 25 32 40 Types Type AC : For which tripping is ensured for residual sinusoidal alternating currents, whether suddenly applied or slowly rising. Type A : For which tripping is ensued for residual sinusoidal alternating currents and residual pulsating direct currents, whether suddenly applied or slowly rising. Type G : RCD with short-term delay, with non-operation time of at least 10 ms. ·Increased resistance to peak currents to 3 kA (8/20 us). ·Upper limit of tripping time is the same as in RCDs for general use - with sensitivity of 30 mA fulfils the conditions of additional protection. ·Limitation of unwanted tripping of RCDs by short current surges (coordination with class Il and Ill surge voltage protectors) etc. ·lt is not specified in IEC standards, but resistance to undesirable tripping cannot be guaranteed without it. Overall and mounting dimensions

2.0 4 10

SGMR-40D
