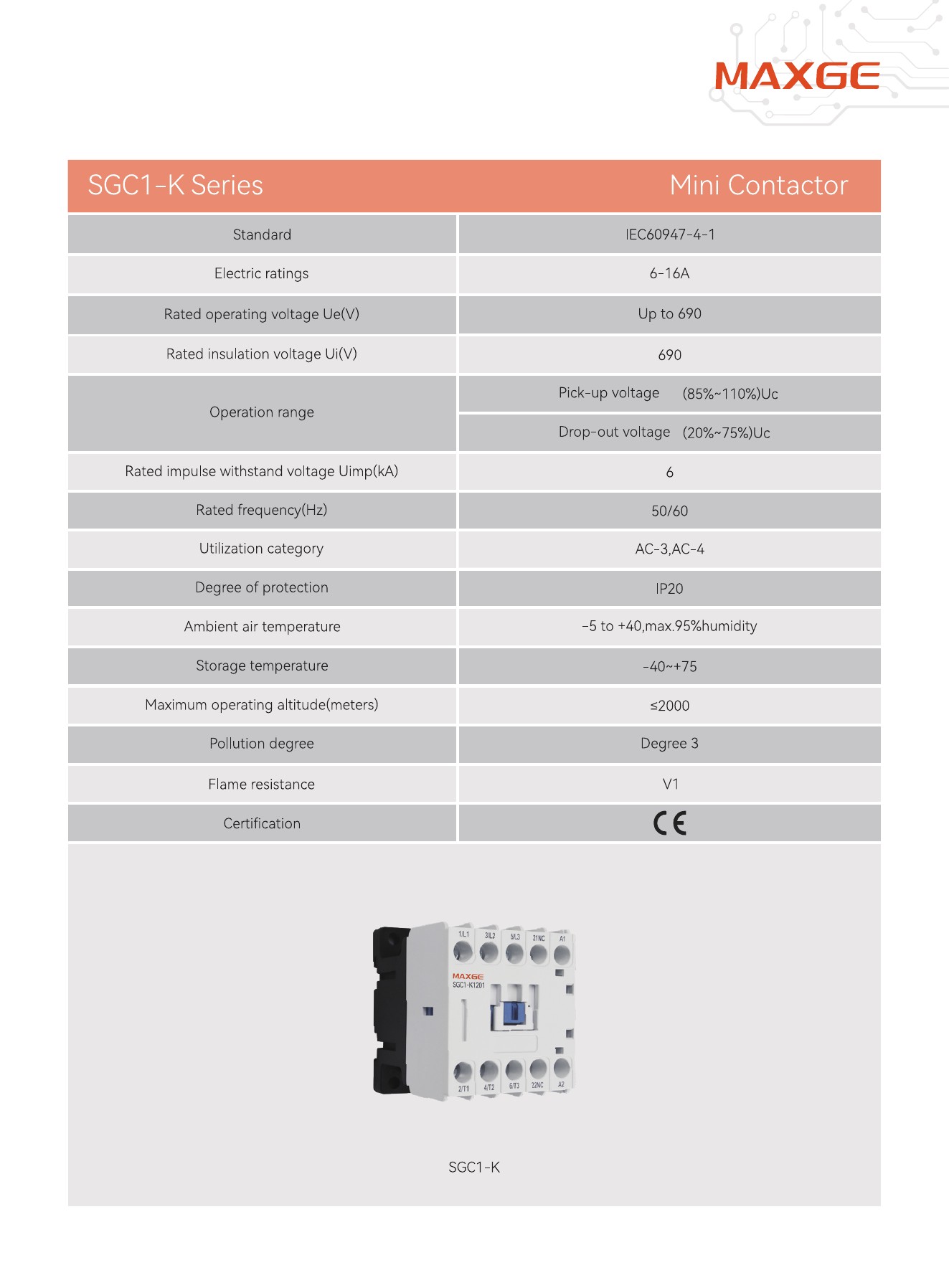

MAXGE SGC1-K Series Mini Contactor Standard IEC60947-4-1 Electric ratings 6-16A Rated operating voltage Ue(V) Up to 690 Rated insulation voltage Ui(V) 690 Pick-up voltage (85%~110%)Uc Operation range Drop-out voltage (20%~75%)Uc Rated impulse withstand voltage Uimp(kA) 6 Rated frequency(Hz) 50/60 Utilization category AC-3，AC-4 Degree of protection IP20 Ambient air temperature -5 to +40，max.95%humidity Storage temperature -40~+75 Maximum operating altitude(meters) ≤2000 Pollution degree Degree 3 Flame resistance V1 Certification CE 1L1 3 MAXGE SGC1-K1201 2T 6T3 22NC SGC1-K

MAXGE SGC1-K Series Mini Contactor Model SGC1-K06 SGC1-K09 SGC1-K12 SGC1-K16 Conventional thermal current lth(A) 20 Rated insulation voltage Ui(V) 690 Rated impulse withstand voltage Uimp(kV) 6 8 hour duty system，uninterrupted duty system， Rated duty system intermittent duty system， short term duty system Rated limited short-circuit current lq(kA) 50 220V/230V 1.5 2.2 3 4 Power of controllable 380V/400V 2.2 4 5.5 7.5 3-phase motor (AC-3)kw 660V/690V 3 4 4 4 Arcing distance (mm) 3 Electrical life AC-3 1.2million 400V AC-4 See attachment“Electrical life curve” Mechanical life 12 million AC-3 600 Operation frequency(times/h) AC-4 150 Enclosure protection class IP20(Except for the terminal blocks) Model of matching fuse RT16-00 20A Rated current of fuse of different model(A) 20 Coordination type Type 2 coordination Model of matching thermal overload relay JR28-11.5 AC-15 Ue/le：AC380V/400V/0.95A th：10A Parameters of auxiliary circuit DC-13 Ue/le： DC220V/0.15A Pick-up(VA) 20~40 Coil power Hold(VA) 9.0 AC-3 220V/230V 6 9 12 16 AC-4 Rated AC-3 12 16 6 9 operating 380V/400V current AC-4 9 12 le(A) AC-3 660V/690V 3.8 4.9 4.9 4.9 AC-4

MAXGE SGC1-K Series Mini Contactor Overall Dimensions X106 SGC1-K09/12 AC-4 SGC1-K06 SGC1-K16 ML 1 0.8 no 0.4 0.25 0.2 bBmax 0.15 口 0.1 0.06 0.04 二 TU 1O 凹 0.01 1 一Cmax a 5 10 20 30 40 50 60 80 54 72 一Amax D max(F4-M) Appendix lc(A) Outline dimensions Installation dimensions Model Amax Bmax C max D max a b 中 SGC1-K06~16 45.5 59 58 94 35±0.35 50±0.48 4.2 SGC1-K06Z~16Z 45.5 59 70 106 35±0.35 50±0.48 4.2 Unit： mm 1 口 C b B max 口 口 B/TS 口 一一 -0 a 一 -Cmax 一 Amax D max(F4-M) Outline dimensions Installation dimensions Model Amax Bmax Cmax D max a b 中 SGC1-K06N~16N 91 59 58 94 80±0.35 50±0.48 4.2 SGC1-K06NZ~16NZ 91 59 70 106 80±0.35 50±0.48 4.2 A1 M3 A2 Main Control mm- mm mm² mm² mm mm- circuit circuit 0.8N·m Philips 1~2.5 1~2.5 1~2.5 1~1.5 Unit： mm

MAXGE SGC1-K Series Mini Contactor F4-M Auxiliary contact group Number of contacts Type Picture Number of normally open (NO) contacts Number of normally closed (NC) contacts F4-M20 2 0 F4-M11 1 F4-M02 0 2 74 F4-M40 4 0 F4-M31 3 F4-M22 2 2 F4-M13 1 3 F4-M04 0 4 Coil surge suppression module lype Picture Coil voltage range MAXGE AC/DC：24V-48V FS-M FS-M DV250VAQDC AC/DC：110V-240V AC/DC：380V-440V Coil voltage specification table AC(V)50Hz 24 36 48 110 127 220 380 415 AC(V)60Hz 24 36 48 110 127 220 380 415 AC(V)50/60Hz 24 36 48 110 127 220 380 415 DC(V) 12 24 36 48 110 127 220 Instructions for using the correction factor for high altitude areas Altitude (m) 2000 3000 4000 Rated impulse withstand voltage coefficient 1 0.88 0.78 Rated operating current coefficient 1 0.92 0.90 Instructions for use under abnormal Ambient air temperatures Ambient air temperature (C) 55 60 65 70 Correction factor 1 0.93 0.875 0.75
