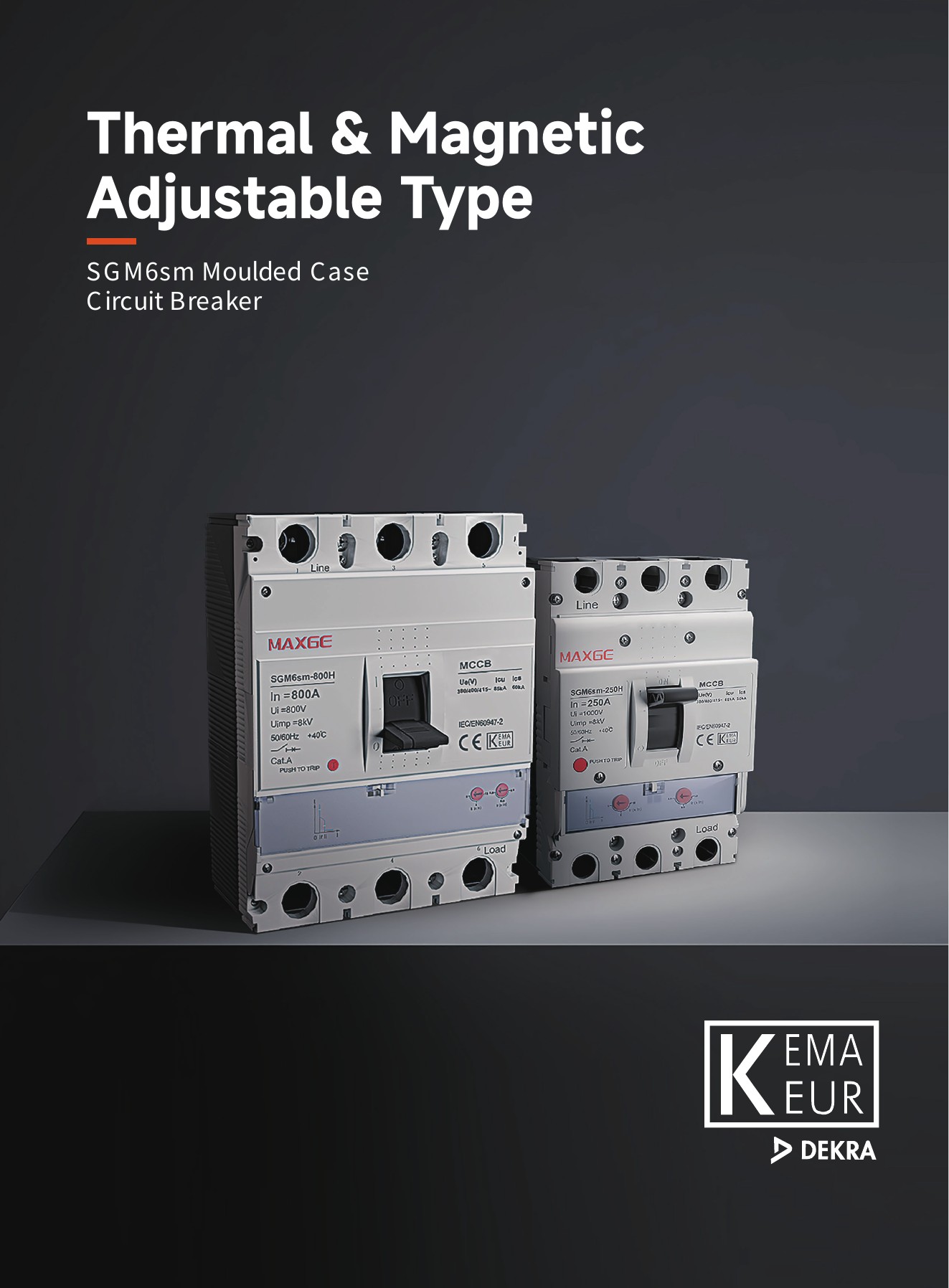

# SGM6sm-160 <!-- source-page:1 --> Thermal & Magnetic Adjustable Type SGM6sm Moulded Case Circuit Breaker <!-- source-page:2 --> [No machine-readable text on this page.] <!-- source-page:3 --> Product Dimension Drawing Thermal Magnetic Adjustable Type H W W SGM6sm L L 160,250,400,630 800/1000（3P/4P) 3P 4P Front connection Front connection(mm) Note:All dimensions are in mm Note:All dimensions are in mm 22 15 9 90(3P)/120(4P) 30 0.15(3P)/60 0.15(4P) 55 SGM6/6S/6SM 219 203 155 122 122 0.2 163 0.2 201 0.2 135 0.2 92 219 203 155 122 63.5 12 160（3P/4P） 62 122 30 30 30 75 92 93 155 122 99 | SGM6 Dimensions mm(L×W×H) | | | | | | | | --- | --- | --- | --- | --- | --- | --- | | Frame Size | | 160 | 160（H max） | Frame Size | | 160 1 | | 3P | Length | 155 | 155 | 4P | Length | 155 | | | Width | 92 | 92 | | Width | 122 | | | Height | 92 | 99 | | Height | 92 |
