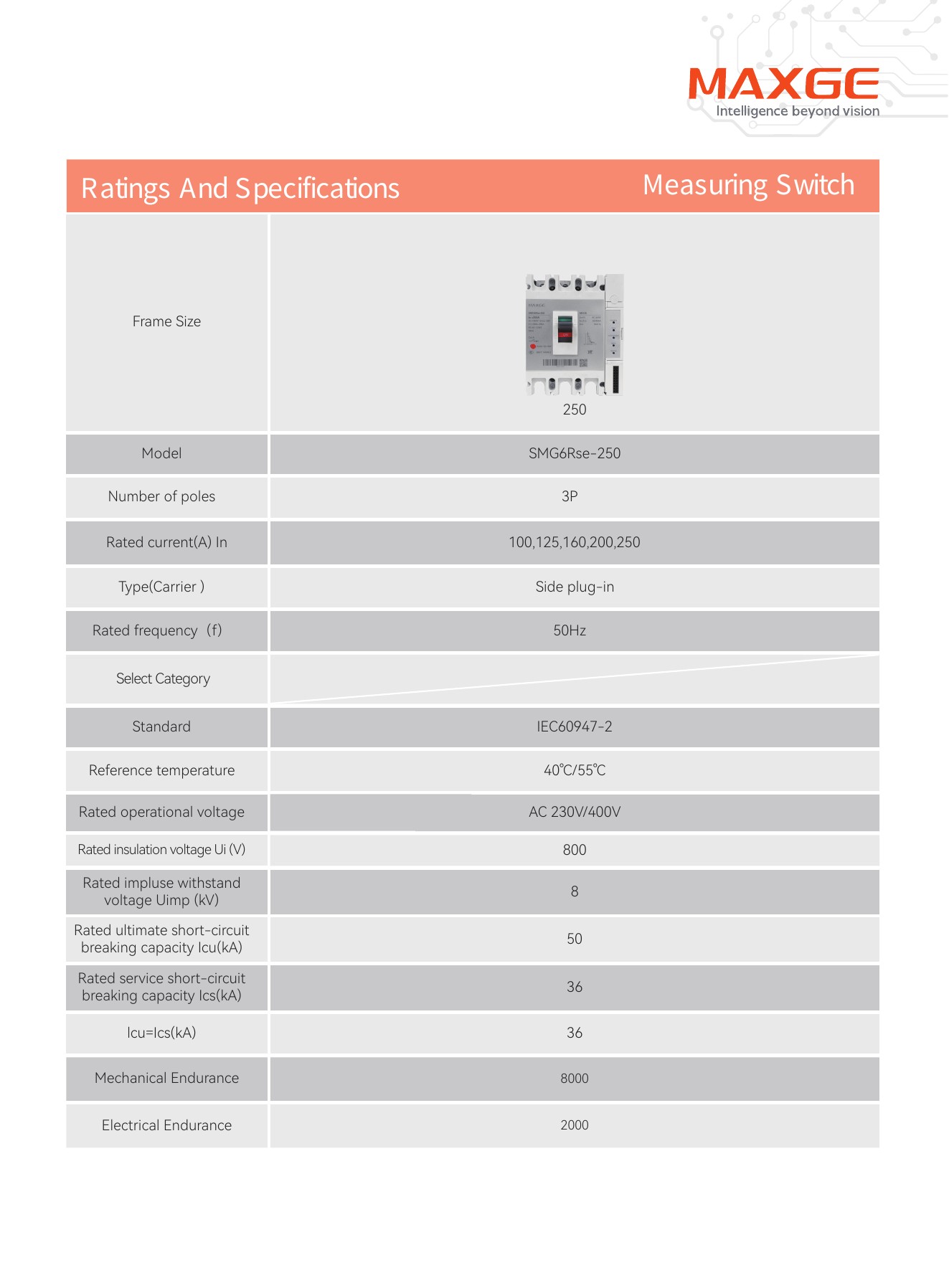

# SMG6Rse-250 <!-- source-page:1 --> Ratings And Specifications Frame Size Model Number of poles 3P Rated current(A) In Type(Carrier ) Rated frequency（f） 50Hz Select Category Standard IEC60947-2 Reference temperature 40℃/55℃ Rated operational voltage Rated insulation voltage Ui (V) 800 Rated impluse withstand voltage Uimp (kV) 8 Rated ultimate short-circuit breaking capacity Icu(kA) Rated service short-circuit breaking capacity Ics(kA) lcu=Ics(kA) Mechanical Endurance Electrical Endurance Measuring Switch 250 SMG6Rse-250 100,125,160,200,250 Side plug-in AC 230V/400V 50 36 36 8000 2000 <!-- source-page:2 --> Product Dimension Drawing Measuring Switch SMG6Rse-250 4- 5±0.5 126±1 145±1 22-24 35±0.5 35±0.5 35±0.5 107 132max 26.6±2 12±1 116max 91 165max
