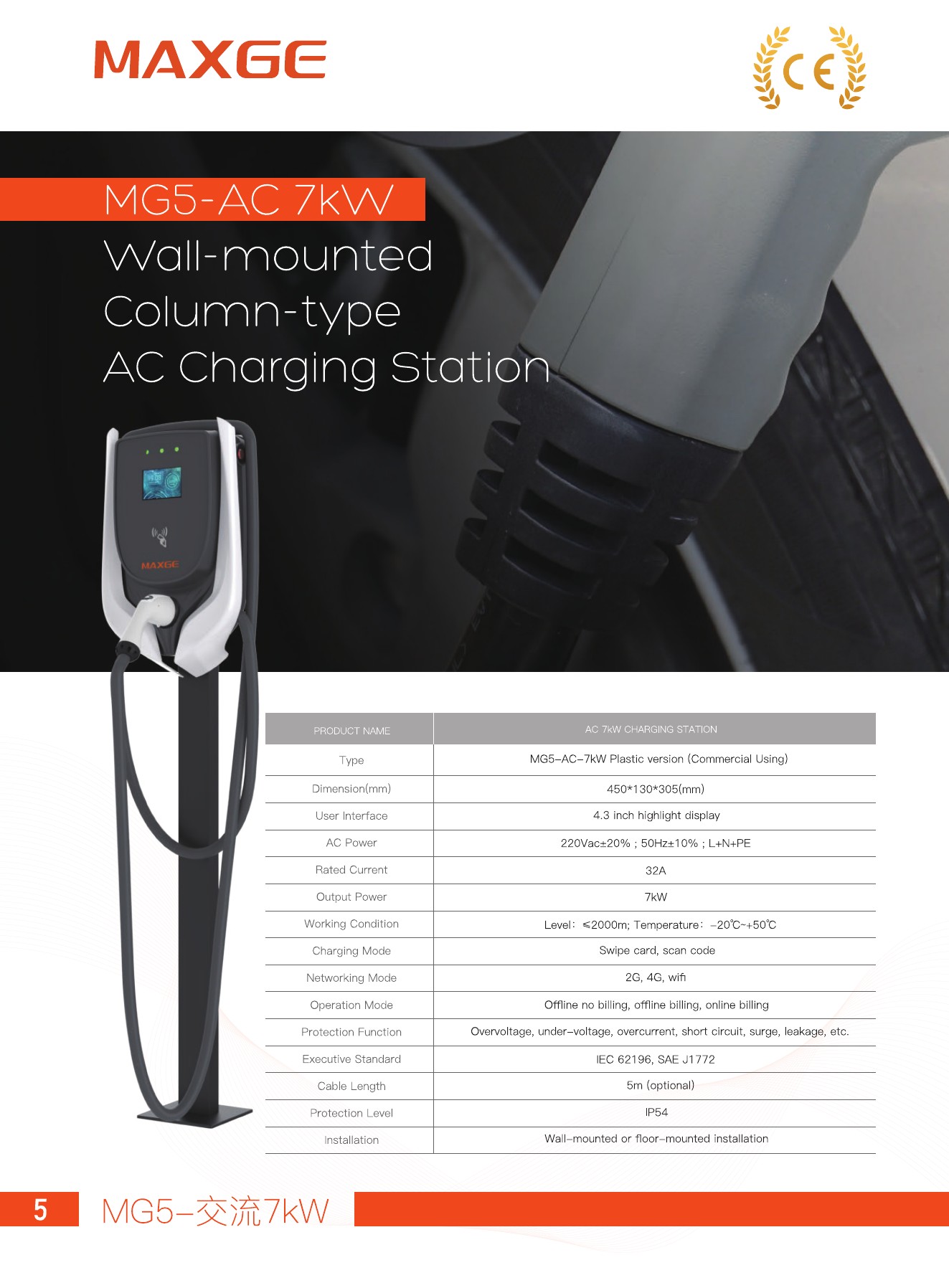

# MG5 Wall Mounted Column Type AC Charging Station <!-- source-page:1 --> MAXGE CE MG5-AC7kW Wall-mounted Column-type AC Charging Station MAXGE PRODUCTNAME AC 7KW CHARGING STATION Type MG5-AC-7kW Plastic version (Commercial Using) Dimension(mm) 450*130*305(mm) User Interface 4.3 inch highlight display AC Power 220Vac±20%；50Hz+10%；L+N+PE Rated Current 32A Output Power 7kW Working Condition Level： ≤2000m； Temperature：-20℃~+50℃ Charging Mode Swipe card， scan code Networking Mode 2G， 4G， wif Operation Mode Offline no billing， offline billing， online billing Protection Function Overvoltage，under-voltage， overcurrent， short circuit， surge， leakage， etc. Executive Standard IEC 62196， SAE J1772 Cable Length 5m (optional) Protection Level IP54 Installation Wall-mounted or floor-mounted installation 5 MG5-交流7kW
