# SGM6-160

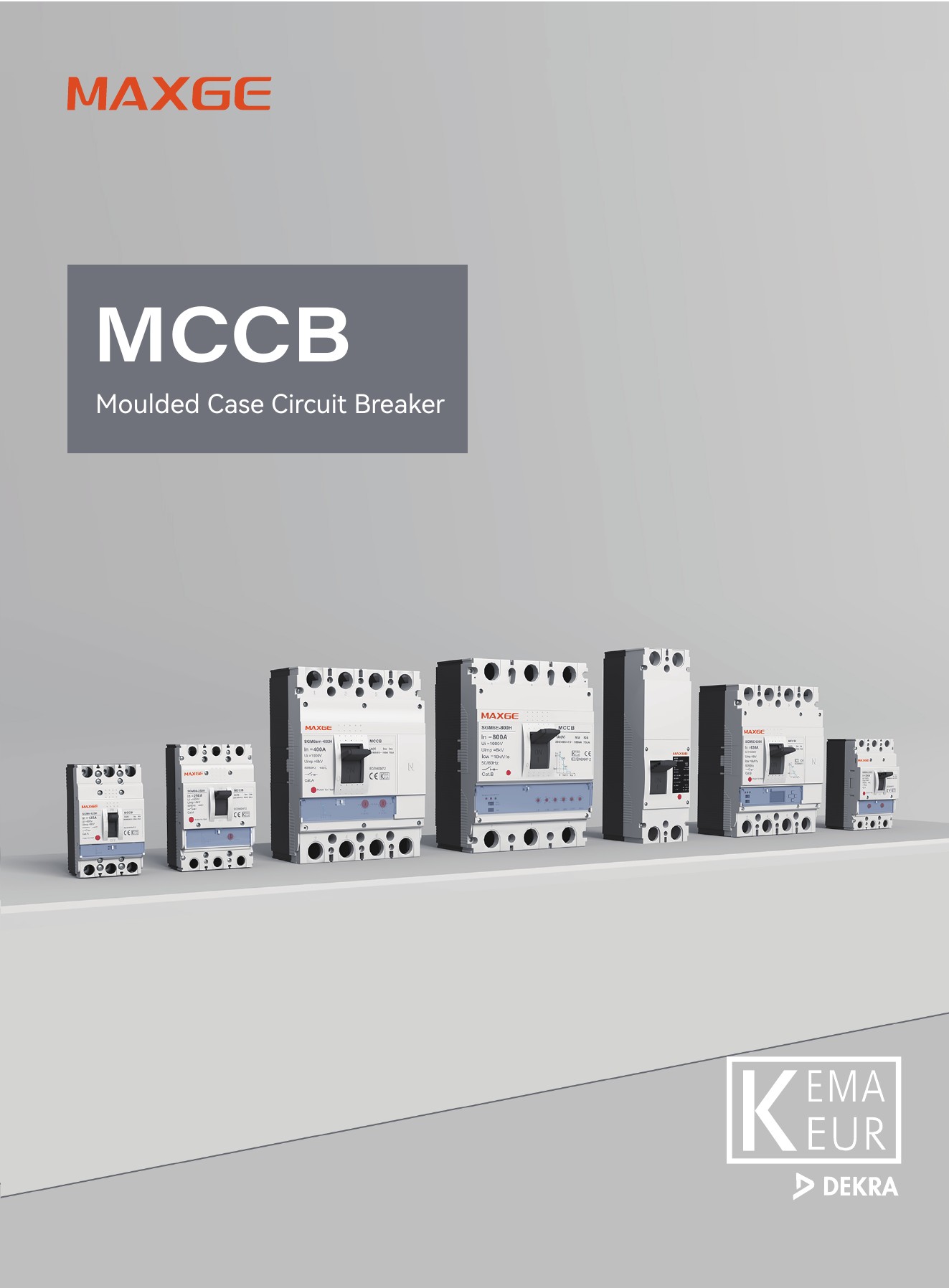

Moulded Case Circuit Breaker

Product category Design code Type code Design code Breaking capacity level Pole Rated current SGM e.g. - / 6 : s 125 M 3P 125A

SGM series Moulded Case Circuit Breaker

Thermal Adjustable Type（s） Fixed Type （/）

125A,160A,250A,400A,630A,800A/1000A,1600A

6 Thermal & Magnetic Adjustable Type（sm） Electronic Type with Knobs（E） Electronic Type with LCD（i） With ELCB Type（L）

C*,L,M,H,H max 3P,4P 16-1600A

Fixed Type SGM6 Moulded Case Circuit Breaker

[No machine-readable text on this page.]

Product Dimension Drawing Fixed Type

H W W

SGM6 L L 125,160,250,400， 630,800/1000（3P/4P）

3P 4P

Front connection Front connection(mm) Note:All dimensions are in mm Note:All dimensions are in mm

22 15 9 90(3P)/120(4P) 30 0.15(3P)/60 0.15(4P) 55

SGM6/6S/6SM 122 0.2 163 0.2 201 0.2 135 0.2 92 63.5 12 160（3P/4P）

62 75 92 93

155

122

| 203 | 155 122 |  |
| --- | --- | --- |
|  |  | 30 |

| 203 155 122 |  |
| --- | --- |
|  | 30 30 122 |

| SGM6 Dimensions mm(L×W×H) |  |  |  |  |  |  |
| --- | --- | --- | --- | --- | --- | --- |
| Frame Size |  | 160 | 160（H max） | Frame Size |  | 160 |
| 3P | Length | 155 | 155 | 4P | Length Width Height | 155 |
|  | Width | 92 | 92 |  |  | 122 |
|  | Height | 92 | 99 |  |  | 92 |
