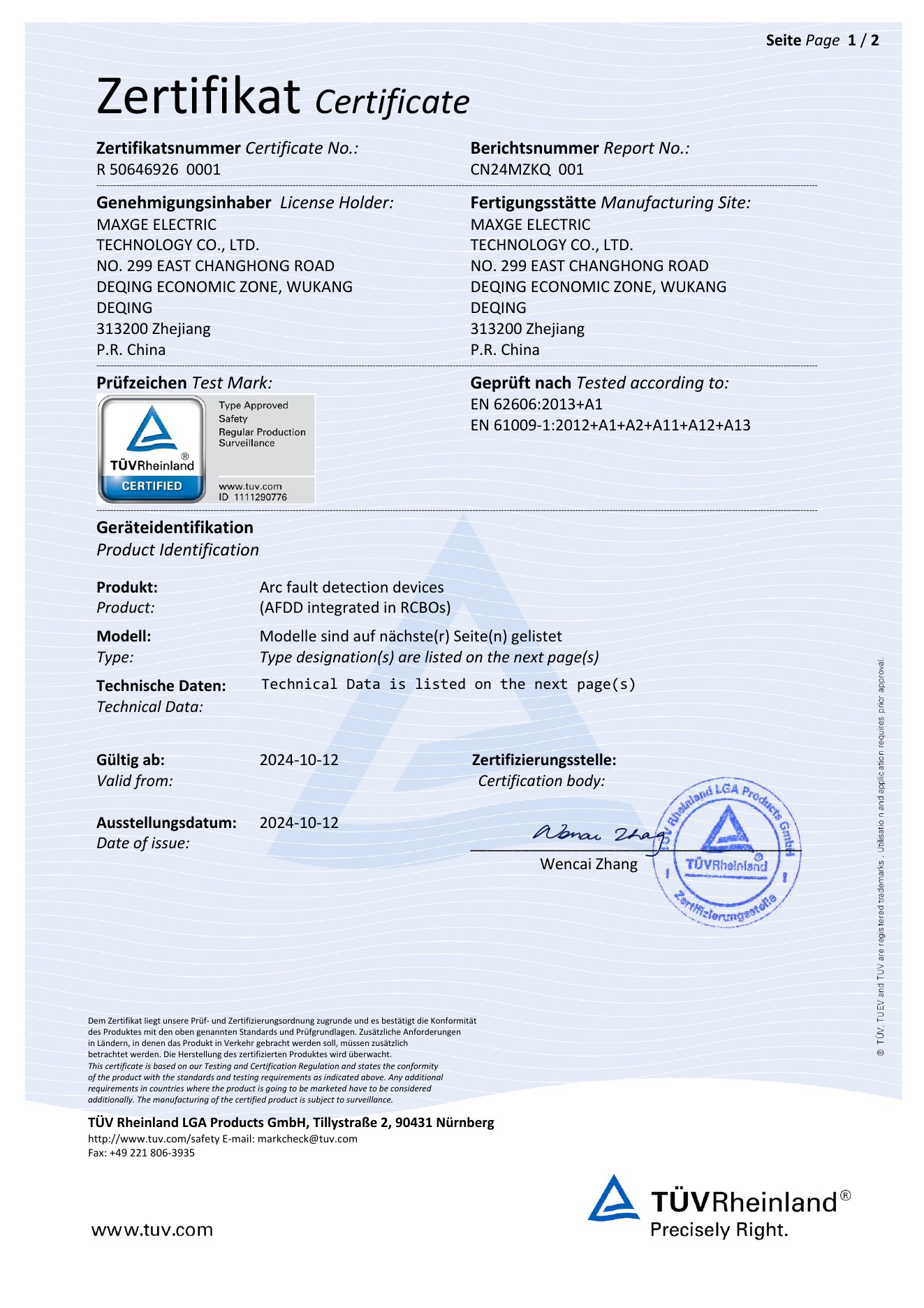

Seite Page 1 / 2 Zertifikat Certificate Zertifikatsnummer Certificate No.: R 50646926 0001 Berichtsnummer Report No.: CN24MZKQ 001 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Genehmigungsinhaber License Holder: MAXGE ELECTRIC TECHNOLOGY CO., LTD. NO. 299 EAST CHANGHONG ROAD DEQING ECONOMIC ZONE, WUKANG DEQING 313200 Zhejiang P.R. China Fertigungsstätte Manufacturing Site: MAXGE ELECTRIC TECHNOLOGY CO., LTD. NO. 299 EAST CHANGHONG ROAD DEQING ECONOMIC ZONE, WUKANG DEQING 313200 Zhejiang P.R. China ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Prüfzeichen Test Mark: Geprüft nach Tested according to: EN 62606:2013+A1 EN 61009-1:2012+A1+A2+A11+A12+A13 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Geräteidentifikation Product Identification Produkt: Product: Modell: Type: Technische Daten: Technical Data: Gültig ab: 2024-10-12 Zertifizierungsstelle: Valid from: Certification body: Ausstellungsdatum: 2024-10-12 Date of issue: _______________________________________ Wencai Zhang Dem Zertifikat liegt unsere Prüf- und Zertifizierungsordnung zugrunde und es bestätigt die Konformität des Produktes mit den oben genannten Standards und Prüfgrundlagen. Zusätzliche Anforderungen in Ländern, in denen das Produkt in Verkehr gebracht werden soll, müssen zusätzlich betrachtet werden. Die Herstellung des zertifizierten Produktes wird überwacht. This certificate is based on our Testing and Certification Regulation and states the conformity of the product with the standards and testing requirements as indicated above. Any additional requirements in countries where the product is going to be marketed have to be considered additionally. The manufacturing of the certified product is subject to surveillance. TÜV Rheinland LGA Products GmbH, Tillystraße 2, 90431 Nürnberg http://www.tuv.com/safety E-mail: markcheck@tuv.com Fax: +49 221 806-3935

Arc fault detection devices (AFDD integrated in RCBOs) Modelle sind auf nächste(r) Seite(n) gelistet Type designation(s) are listed on the next page(s) Technical Data is listed on the next page(s)

Seite Page 2 / 2 Zertifikat Certificate Zertifikatsnummer Certificate No.: R 50646926 0001 Berichtsnummer Report No.: CN24MZKQ 001 Produkt Product: Arc fault detection devices (AFDD integrated in RCBOs) Modell Type: Bezeichnung Designation: SGBR2-40AFDx ; EPBR2-40AFDx ; MGBR2-40AFDx ;x= M or H Classification of Construction : AFDD integrated in RCBOs Conditions to Mitigate The Risk of Fire: Series arc fault; Parallel arc fault; Earth arc fault Number of Poles : 1P+N/2P Rated Voltage (Un) : AC 230/240V; 50Hz Rated Current (In) : 6/10/13/16/20/25/32/40A Additional Rating of RCBOs: Instantaneous Tripping Current : B-type and C-type Behaviour in Presence of d.c. : Type A or Type AC Rated Residual Operating Current (I∆n) : 10/30/100/300mA Rated Short-circuit Capacity(Icn): 10,0kA (x=H) 6,0kA (x=M) Rated Service Short-circuit Capacity (Ics) : 7,5kA (x=H) 6,0kA (x=M) Rated Residual Making and Breaking Capacity (I∆m) : 3,0kA Rated Impulse Withstand Voltage : 4,0kV Rated Insulation Voltage (Ui) : 500V Range of Ambient Air Temperature : -25°C to +40°C Pollution Degree : 2 Anlage (Appendix) : 1
