# SGC1-D Series ll

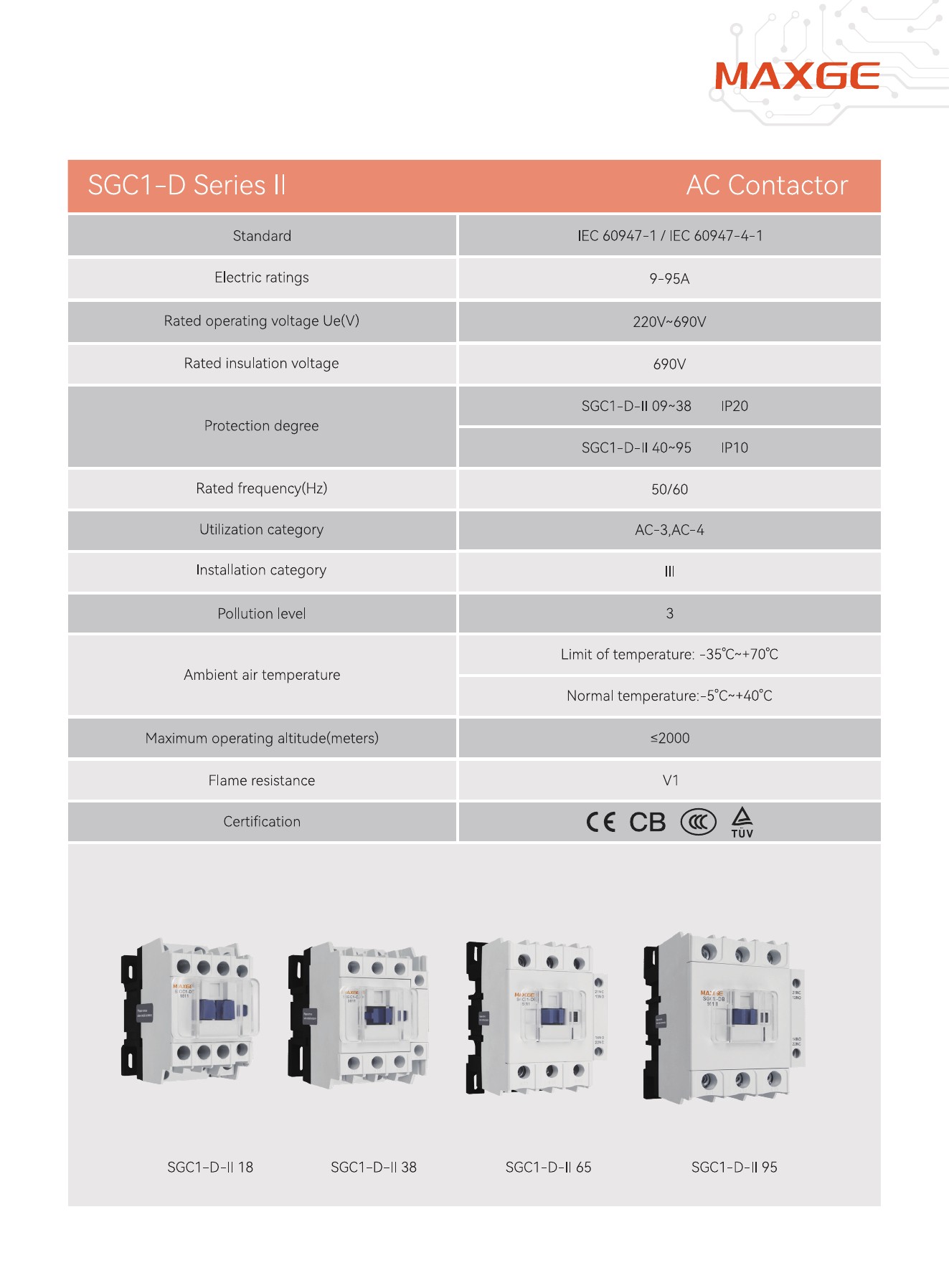

MAXGE SGC1-D SeriesIⅡ AC Contactor Standard IEC60947-1/IEC60947-4-1 Electric ratings 9-95A Rated operating voltage Ue(V) 220V~690V Rated insulation voltage 690V SGC1-D-II09~38 IP20 Protection degree SGC1-D-II40~95 IP10 Rated frequency(Hz) 50/60 Utilization category AC-3，AC-4 Installation category m Pollution level 3 Limit of temperature： -35°C~+70°C Ambient air temperature Normal temperature：-5°C~+40°C Maximum operating altitude(meters) ≤2000 Flame resistance V1 Certification CE CB C A TUV L MA SGC1-D-II18 SGC1-D-138 SGC1-D-165 SGC1-D-I95

MAXGE SGC1-D SeriesIⅡ AC Contactor Type SGC1-D-II09 SGC1-D-II12 SGC1-D-18SGC1-D-I25SGC1-D-II32 SGC1-D-I38 Poles 3P Rated insulation voltage(Ui) V 690 Rated operating voltage(Ue) V 380/400，660/690 Rated thermal current(lth)，AC-1 20 AC-3.380/400V A 9 Rated AC-3，660/690V A 6.6 8.9 operation current(le) AC-4.380/400V A 3.5 5 7.7 8.5 AC-4，660/690V A 1.5 2 3.8 4.4 7.5 8.9 AC-3，380/400V kW 4 5.5 11 15 18.5 Rated AC-3，660/690V kW 5.5 15 18.5 18.5 operational power(Pe) AC-4，380/400V kW 3.3 4 5.5 5.5 AC-4，660/690V kW 3 3.7 5.5 6 Mechanical life 1200 1000 10000 AC-3 110 90 Electricallife times AC-4 22 Frequency AC-3 times/ 1200 600 of operation AC-4 hour 300 Connecting capability of main circuit terminal Flexible wire 1 wire mm- 1...4 1.5...6 No terminal 2 wire mm² 1..4 1.5...6 Flexible wire 1 wire mm² 1...4 1...6 With terminals 2 wire mm² 1...2.5 1...4 Hard wire 1 wire mm² 1...4 1.5...6 1.5...10 No terminal 2 wire mm² 1...4 1.5.. Fastening torque N·m 1.2 1.8 Coil Rated control 50Hz V 24、36、48、 110、127、220/230、240、380/400、415、 440 voltage(Us) 50/60Hz V 24、36、48、110、127、220/230、240、380/400、415、440 Allowed control Operation V Installation inclination angle ±22.5：85%~110%Us； Installation inclination angle±5：70%~120% circuit voltage(Us) Release V Installation inclination angle ±22.5：20%~75%Us； Installation inclination angle+5：20%~65% 60 70 Power Actuation consumption Keep 6-9.5 6-9.5 of coil Consumption W 1-3 1-3 Auxiliary contacts Auxiliary contacts specification A 11 Rated thermal current (Ith) A 10 Rated operating AC V 380 voltage (Ue) DC V 220 Rated control AC-15 VA 360 capacity DC-13 W 33

MAXGE SGC1-D SeriesIⅡ AC Contactor Type SGC1-D-140 SGC1-D-I50 SGC1-D-II65 SGC1-D-80 SGC1-D-I95 Poles 3P Rated insulation voltage(Ui) V 690 Rated operating voltage(Ue) V 380/400，660/690 Rated thermal current(lth)，AC-1 125 125 AC-3.380/400V A Rated AC-3，660/690V A operation 3 current(le) AC-4.380/400V A 18.5 AC-4，660/690V A 9 17.3 21.3 AC-3，380/400V kW 18.5 22 2一 Rated AC-3，660/690V kW operational power(Pe) AC-4，380/400V kW 31 18.5 22 AC-4，660/690V kW 7.5 10 15 18.5 Mechanical life 900 650 10000 AC-3 Electricallife times AC-4 Frequency AC-3 times/ 600 of operation AC-4 hour 300 Connecting capability of main circuit terminal Flexible wire 1 wire mm- 2.5...25 4...50 No terminal 2 wire mm² 2.5...16 4.25 Flexible wire 1 wire mm² 2.5..25 4...50 With terminals 2 wire mm² 2.5..10 4...16 Hard wire 1 wire mm² 2.5...25 4...50 No terminal 2 wire mm² 2.5...10 4..25 Fastening torque N·m 5 9 Coil Rated control 50Hz V 24、36、48、 110、127、220/230、240、380/400、415、 440 voltage(Us) 50/60Hz V 24、36、48、110、127、220/230、240、380/400、415、440 Allowed control Operation V Installation inclination angle ±22.5：85%~110%Us； Installation inclination angle±5：70%~120% circuit voltage(Us) Release V Installation inclination angle ±22.5：20%~75%Us； Installation inclination angle+5：20%~65% Actuation 200 Power consumption Keep 15-20 of coil Consumption W 6-10 Auxiliary contacts Auxiliary contacts specification A 11 Rated thermal current (Ith) A 10 Rated operating AC V 380 voltage (Ue) DC V 220 Rated control AC-15 VA 360 capacity DC-13 W 33

MAXGE SGC1-D SeriesIⅡ AC Contactor Overall Dimensions SGC1-D-109~38 4.5 n 口 CD Q C 1 d a Bmax C max f SGC1-D-II40~95 5.5 Q L 厂 日 一 一F 8 ① o 4-09 Bmax C max d Type Amax Bmax Cmax a b C d e f SGC1-D-II09，12，18 74.5 45.5 85.5 35 50/60 SGC1-D-II25，32，38 83 56.5 97 40 50/70 SGC1-D-II40，50.65 127.5 74.5 117 105 40 100/110 59 SGC1-D-II80，95 127.5 85.5 125.5 105 40 100/110 67
