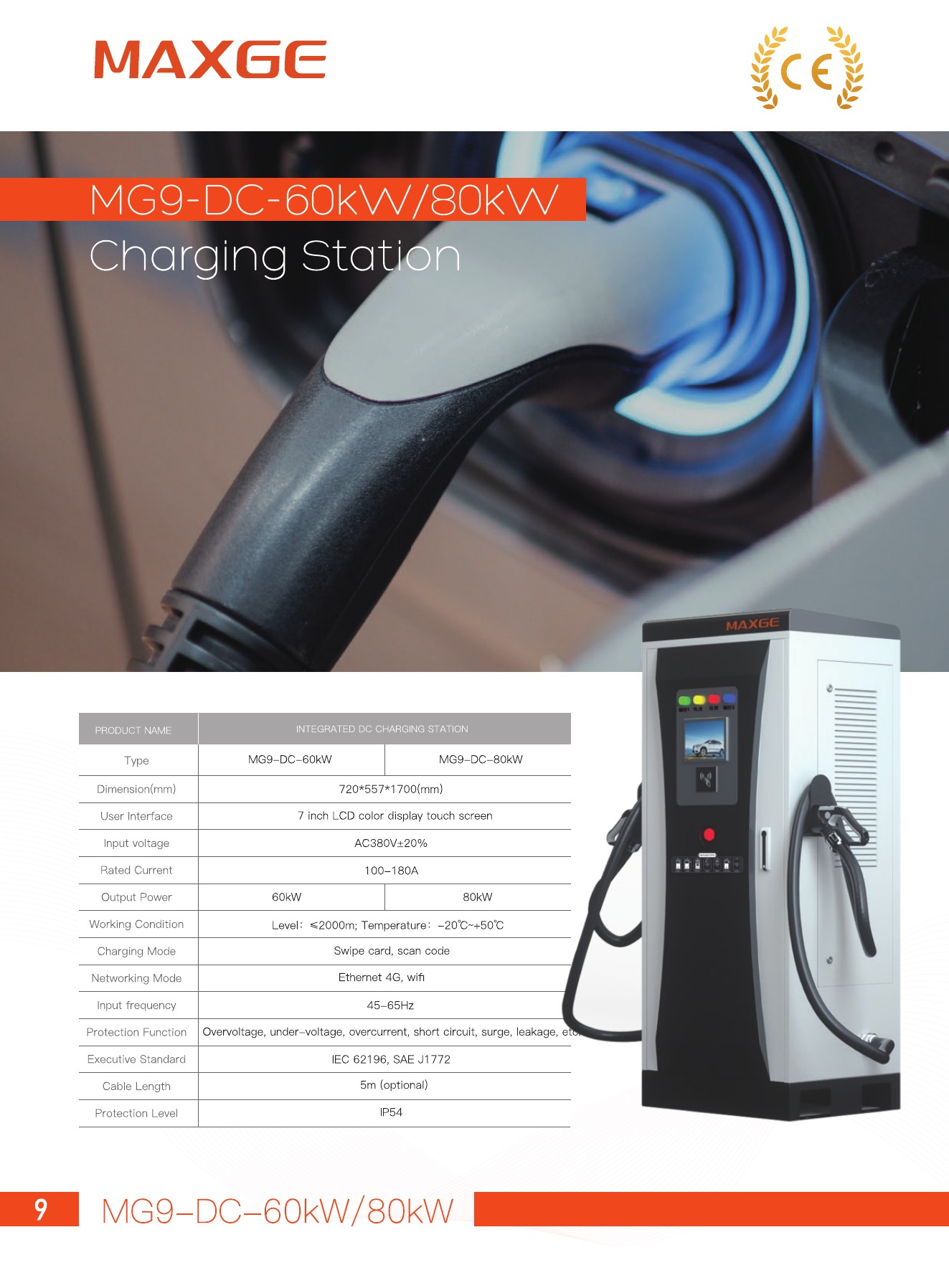

# MG9 DC Charging Station <!-- source-page:1 --> MAXGE CE MG9-DC-60kW/80kW Charging Station MAXGE PRODUCT NAME INTEGRATED DC CHARGING STATION Type MG9-DC-60kW MG9-DC-80kW Dimension(mm) 720*557*1700(mm) User Interface 7 inch LCD color display touch screen Input voltage AC380V±20% Rated Current 100-180A Output Power 60kW 80kW Working Condition Level： ≤2000m； Temperature：-20℃~+50℃ Charging Mode Swipe card， scan code Networking Mode Ethernet 4G， wifi Input frequency 45-65Hz Protection Function Overvoltage，under-voltage， overcurrent， short circuit， surge， leakage， eto Executive Standard IEC 62196， SAE J1772 Cable Length 5m (optional) Protection Level IP54 9 MG9-DC-60kW/80kW
