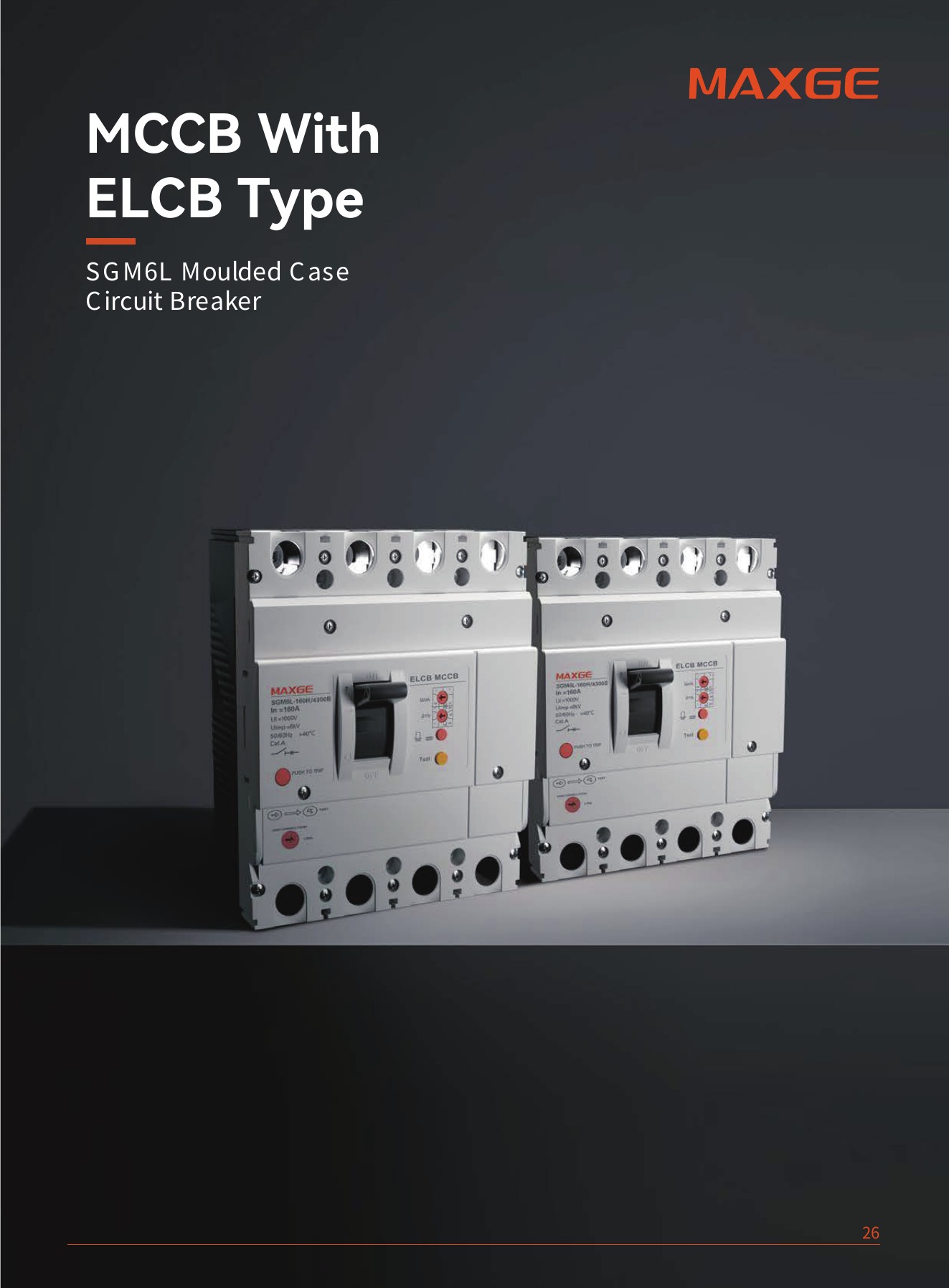

# SGM6L-125 <!-- source-page:1 --> MCCB With ELCB Type SGM6L Moulded Case Circuit Breaker 26 <!-- source-page:2 --> Ratings And Specifications Frame Size Model Number of poles Rated current(A) In Standard IEC60947-2 Rated impluse withstand 6 Breaking capacity level breaking capacity Icu(kA) breaking capacity Ics(kA) Mechanical Endurance Electrical Endurance Rated residual operating current I n(mA) Without time delay With time delay Rated residual non-operating current n Breaking time at a residual current Without time delay With time delay Installation Straight extension bars(FB) Spread extension bars(FB) Rear connection(RC) Phase barrier A* type means neutral line only with isolation function; 27 MCCB With ELCB Type 125 SGM6L-125 32,40,50,63 70,80,100,125 690 L 10 7.5 10000 1500 2l n 0.15 A* <!-- source-page:3 --> Product Dimension Drawing MCCB With ELCB Type H W SGM6L L 125,160,250,400,630 SGM6L Dimensions mm(L×W×H) 630 Frame Size 250 160 125 400 Length 133 155 165 267 267 Width 75 122 142 198 198 81 98.3 105 152 152 Height 28
