# SGLW30 Series

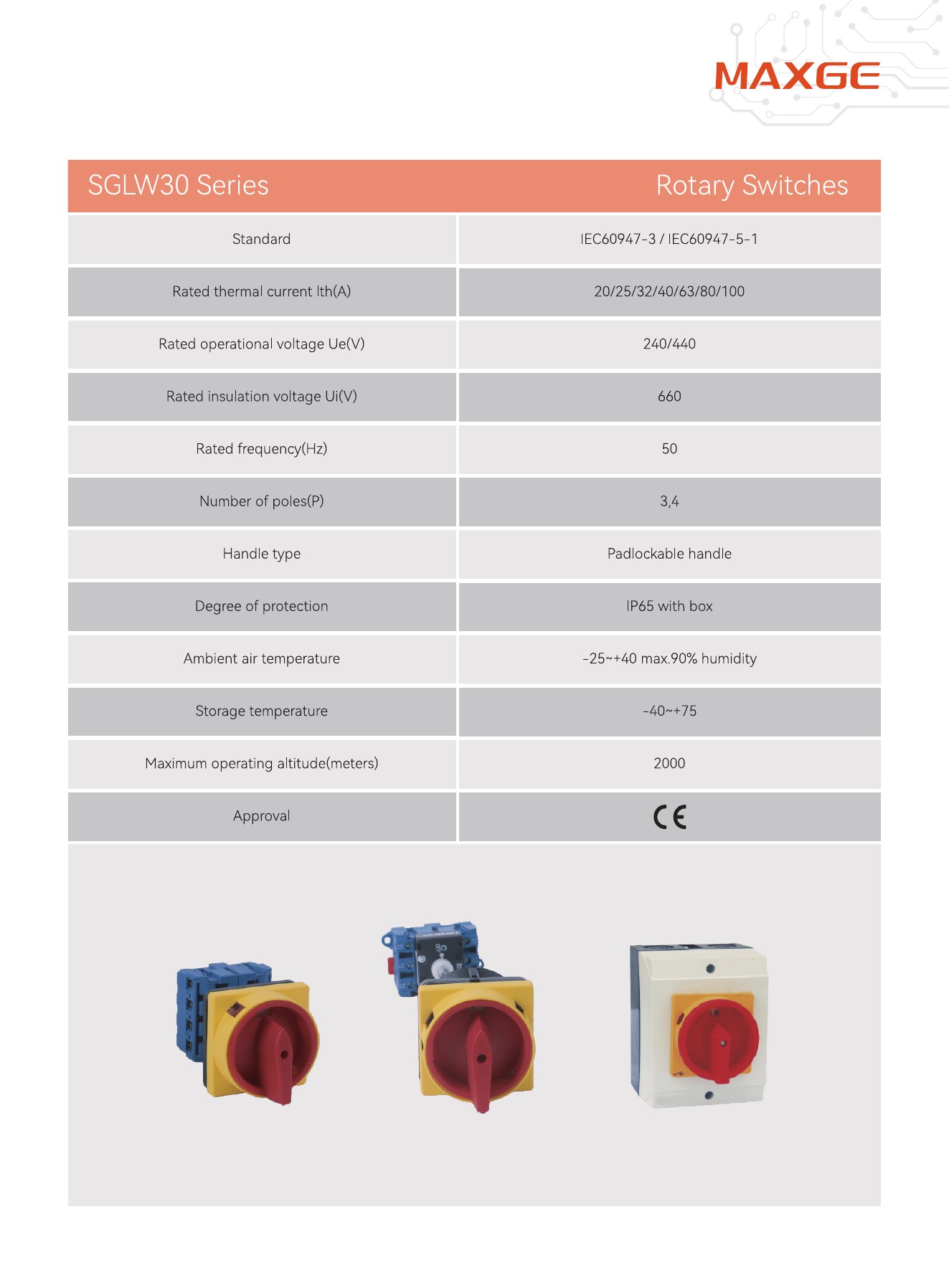

MAXGE SGLW30 Series Rotary Switches Standard IEC60947-3/IEC60947-5-1 Rated thermal current Ith(A) 20/25/32/40/63/80/100 Rated operational voltage Ue(V) 240/440 Rated insulation voltage Ui(V) 660 Rated frequency(Hz) 50 Number of poles(P) 3，4 Handle type Padlockable handle Degree of protection IP65 with box Ambient air temperature -25~+40 max.90% humidity Storage temperature -40~+75 Maximum operating altitude(meters) 2000 Approval CE

MAXGE SGLW30 Series Rotary Switches Auxiliary contacts and optional accessories Grounding or auxiliary contacts Ye Cam operation auxiliary contacts 1000 F1 F2 F3 F8 700 4poles Free joint or auxiliary contacts Q S Cam operation auxiliary contacts F4 F5 F6 F7 Auxiliary contact Specification Function Auxiliary contact Specification Function 20A/25A/32A 40A/63A 40A/63A Grounding Terminal 80A/100A NO+NC 80A/100A 20A/25A/32A 25A/32A NO+NC F8 125A/175A Grounding Terminal Model SGLW30-20 SGLW30-25 SGLW30-32 SGLW30-40 SGLW30-63 Rated thermal current A 20 25 32 40 63 Rated voltage V 240 440 240 440 240 440 240 440 240 440 Rated value le/Pe AC-21A A/kW 20/- 20/- 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- AC-22A A/kW 20/- 20/- 20/- 20/- 32/- 32/- 40/- 40/- 63/- 63/- AC-23A A/kW 11/3 11/5.5 15/4 15/7.5 22/5.5 22/11 30/7.5 30/15 43/11 43/22 AC-3 A/kW 7.5/2.2 7.5/3.7 11.7/3 11.7/5.5 15/4 1517.5 22/7.5 22/11 36/11 36/18.5 Model SGLW30-80 SGLW30-100 SGLW30-125 SGLW30-175 Rated thermal current A 80 100 125 175 Rated voltage V 240 440 240 440 240 440 240 440 Rated value le/Pe AC-21A A/kW 80/- 80/- 100/- 100/- 125/- 125/- 175/- 175/- AC-22A A/kW 80/- 80/- 100/- 100/- 125/- 125/- 175/- 175/- AC-23A A/kW 57/18.5 57/30 70/22 70/37 90/30 90/45 110/30 110/55 AC-3 A/kW 43/15 43/22 57/18.5 57/30 70/22 70/37 90/30 90/45

MAXGE SGLW30 Series Rotary Switches Overall Dimensions Panel mounting B(4P) 1-4(Installation plate thickness) 4-D2 D1 LL E B(3P) A L Overall dimensions(mm) Installation dimensions (mm) Model A B(3P) B(4P) F D1 D2 SGLW30-20 48 8 4.2 SGLW30-20 ¥64 必10 4.2 SGLW30-25 64 55.5 10 4.2 SGLW30-32 ¥64 55.5 必10 4.2 SGLW30-40 64 66 10 4.2 SGLW30-63 ¥64 必10 ¢4.2 SGLW30-80 64 92.5 10 4.2 SGLW30-100 ¥64 92.5 必10 ¢4.2 SGLW30-125 88 112.5 150.5 108 15 6 SGLW30-175 ¥88 112.5 150.5 108 p15 6 Base mounting E 2-D2 5 T < P PO r B L H Standard Din-rail Overall dimensions(mm) Installation dimensions (mm) Model B(3P) B(4P) E F D2 SGLW30-25 55.5 C弘弘 60 p4.2 SGLW30-32 55.5 4.2 Single-hole mounting 1-4(Installation plate thickness) 一十 G E .B-A L Overall dimensions(mm) Installation dimensions(mm) Model A B(3P) B(4P) C别弘弘弘弘弘 E F G SGLW30-20 48 48 22.3 24.1 3.2 SGLW30-20 ¥64 必22.3 24.1 3.2 SGLW30-25 49 55.5 22.3 24.1 3.2 SGLW30-25 ¥64 55.5 必22.3 24.1 3.2 SGLW30-32 49 55.5 22.3 24.1 3.2 SGLW30-32 ¥64 55.5 ¢22.3 24.1 3.2
