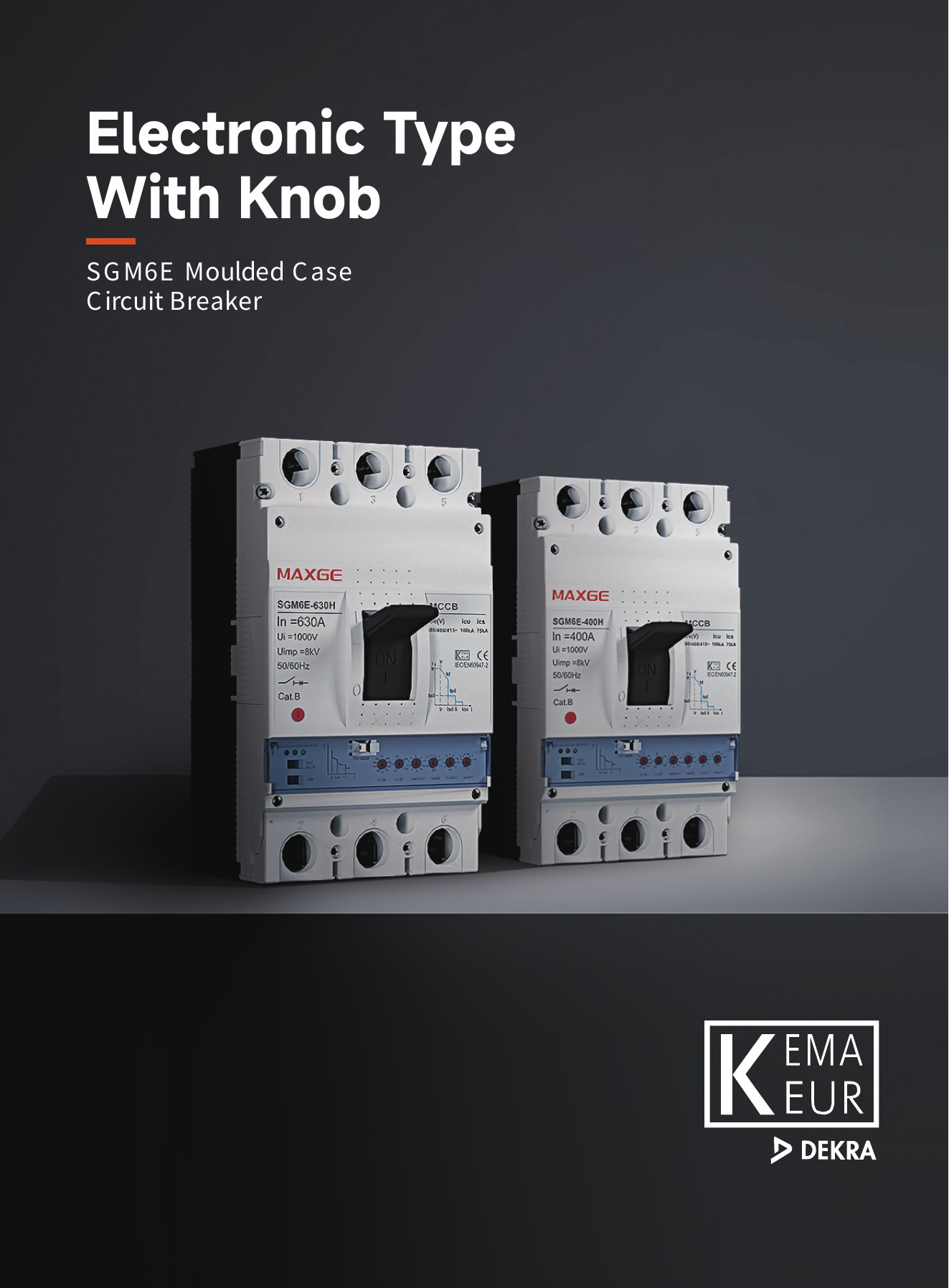

# SGM6e-400 <!-- source-page:1 --> Electronic Type With Knob SGM6E Moulded Case Circuit Breaker <!-- source-page:2 --> Ratings And Specifications Frame Size Model SGM6E-400 Number of poles 3,4 Rated current(A) In Standard IEC60947-2 Rated operational voltage 380/400/415V AC Rated insulation voltage Ui (V) 1000 Rated impluse withstand voltage Uimp (kV) 8 Selectivity category B Breaking capacity level Rated ultimate short-circuit breaking capacity Icu(kA) Rated service short-circuit breaking capacity Ics(kA) lcu=Ics(kA) Mechanical Endurance Electrical Endurance Installation M 85 60 60 for 250-315A 7000 1000 400 3P controller 400 4P controller Electronic Type With Knob 400 250,300,315,320,400 Auxiliary contact(OF) Alarm switch(SD) Shunt tirp(MX) Under-voltage release(MN) AC Motor Mechanism Extended Rotary Handle H 100 75 75 for 350-400A 4000 1000 <!-- source-page:3 --> Product Dimension Drawing Electronic Type With Knob SGM6E 250,400,630 800/1000（3P/4P) Front connection Front connection(mm) Note:All dimensions are in mm Note:All dimensions are in mm 132(3P)/176(4P) 150 197.6 147.1 44 110.5 194.6 29 18.6 29 146.5 108.5 58.5 58.5 98 48 48 SGM6/6S/6SM 141 195 225 275 327 400（3P/4P） 185 223.6 340.6 308.6 257 257 194 194 35 85 13 16 42.2 26 26 26 12.5 41.9 44 44 48 29.5 12.5 194.6 37.5 6 SGM6 Dimensions mm(L×W×H) Frame Size 400 Length Length 257 257 3P 140 4P 197 Width Width 148 148 Height Height <!-- source-page:4 --> [No machine-readable text on this page.]
