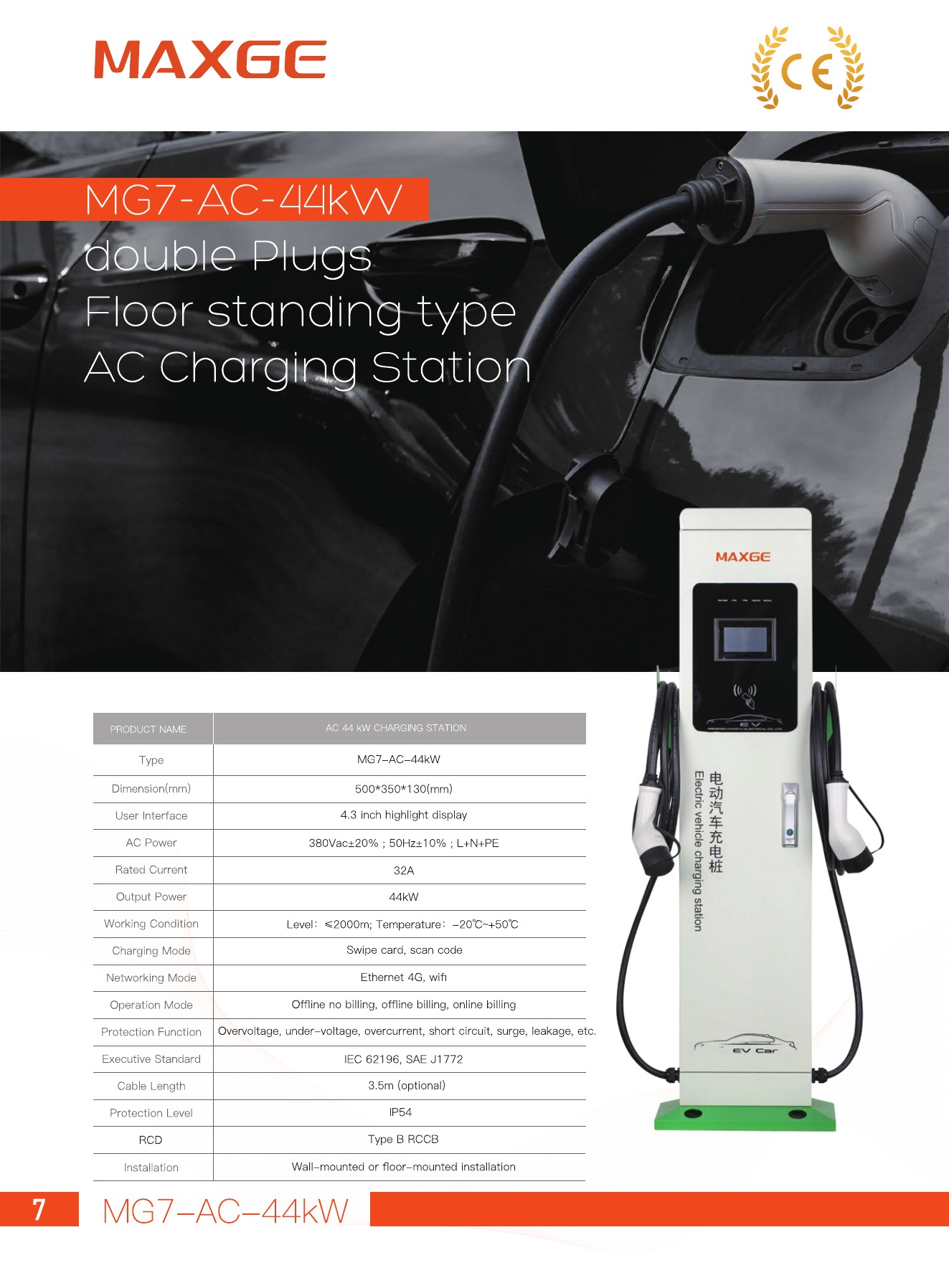

# MG7 Double plugs floor standing type AC Charging Station <!-- source-page:1 --> MAXGE CE MG7-AC-44kW double Plugs Floor standing type AC Charging iStation MAXGE ) PRODUCT NAME AC 44 KW CHARGING STATION Type MG7-AC-44kW Dimension(mm) 500*350*130(mm) User Interface 4.3 inch highlight display AC Power 380Vac±20%：50Hz±10%：L+N+PE Rated Current 32A 电动汽车充电桩- Output Power 44kW Working Condition Level： ≤2000m； Temperature：-20℃~+50℃ Charging Mode Swipe card， scan code Networking Mode Ethernet 4G， wifi Operation Mode Offline no billing， offline billing， online billing Protection Function Overvoltage， under-voltage， overcurrent， short circuit， surge， leakage， etc. EVC car Executive Standard IEC 62196， SAE J1772 Cable Length 3.5m (optional) Protection Level IP54 RCD Type B RCCB Installation Wall-mounted or floor-mounted installation 7 MG7-AC-44kW
