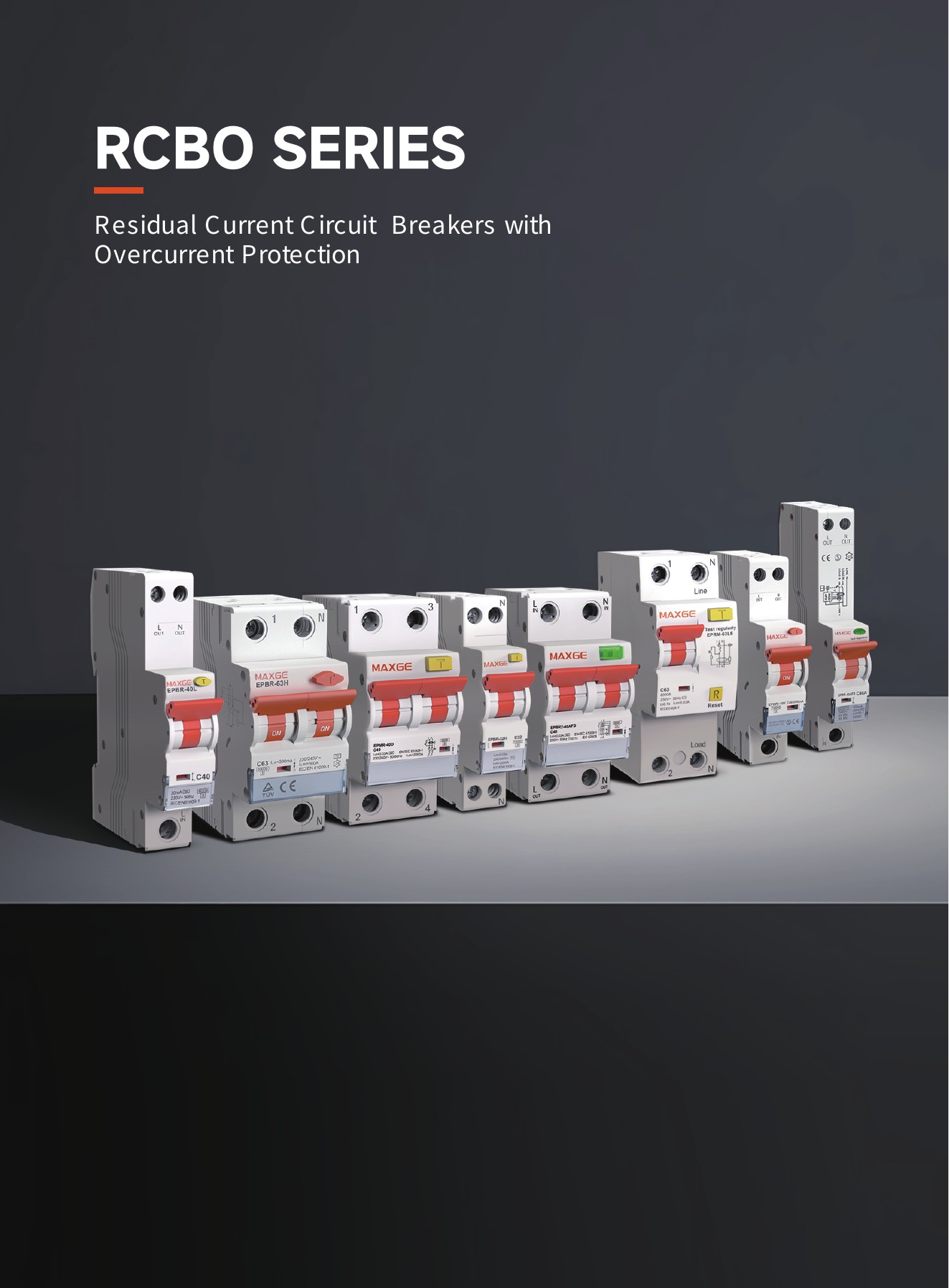

# EPBRi-6K-10K Series <!-- source-page:1 --> RCBO SERIES Residual Current Circuit Breakers with Overcurrent Protection <!-- source-page:2 --> Products Overview of Residual Current Protective Devices Product name RCBO | Product range | EPBRi-6K/10K | | --- | --- | | Product picture | | | Standard | IEC/EN 61009-1 | | --- | --- | | Number of poles | 1P+N | | Electrical characteristics | | | Rated current(A) In | 6~40 | | Rated voltage(V) | AC 230/240 | | Rated residual current(mA) | 10,30,100,300 | | Rated conditional shor-t circuit current(kA) | 6,10 | | Tripping curev | B,C | | Residual current operating characteristic | AC,A | | Catalogue page NO. | 18-21 | <!-- source-page:3 --> EPBRi Series Residual Current Circuit Breakers with Overcurrent Protection | Standard | | EN/IEC61009-1 | | --- | --- | --- | | Rated conditional shor-t circuit current(kA) | | 6,10 | | Rated current(A),ln | | 6,10,13,16,20,25,32,40 | | Number of poles | | 1 P+N(Solid Neutral) | | Rated sensitivity currents(mA),IΔn | | 10,30,100,300 | | Tripping curev | | B,C | | Rated residual non-operating current | | 0.5XIΔn | | Rated impulse withstand voltage Uimp(kV) | | 4 | | Rated voltage(V) | | AC 230/240 | | Ambient temperature (°C) | | -25~+40,Max.95%humidity | | Residual current off time | | ≤0.1s | | Type of trip | Ground fault | Electronic | | | Over current | Thermal-magnetic | | Electrical endurance | | 4000 | | Mechanical endurance | | 10000 | | Terminal capacity | | 10mm2 flexible/16mm2 rigid | | Protection degree | | IP20 | | Installation | | 35mm DIN rail | | Certification | | | | EPBRi-6K EPBRi-10K | | | <!-- source-page:4 --> [No machine-readable text on this page.] <!-- source-page:5 --> EPBRi-10K Residual Current Circuit Breakers with Overcurrent Protection Type AC Type A Rated current(A) IΔn Packing unit C curve B curve B curve C curve 6 EPBRi-10K/B6/10 EPBRi-10K/B6/10-A EPBRi-10K/C6/10 EPBRi-10K/C6/10-A 10 EPBRi-10K/B10/10 EPBRi-10K/B10/10-A EPBRi-10K/C10/10 EPBRi-10K/C10/10-A 13 EPBRi-10K/B13/10 EPBRi-10K/B13/10-A EPBRi-10K/C13/10 EPBRi-10K/C13/10-A 16 EPBRi-10K/B16/10 EPBRi-10K/B16/10-A EPBRi-10K/C16/10 EPBRi-10K/C16/10-A 10mA 20 EPBRi-10K/B20/10 EPBRi-10K/B20/10-A EPBRi-10K/C20/10 EPBRi-10K/C20/10-A 25 EPBRi-10K/B25/10 EPBRi-10K/B25/10-A EPBRi-10K/C25/10 EPBRi-10K/C25/10-A 32 EPBRi-10K/B32/10 EPBRi-10K/B32/10-A EPBRi-10K/C32/10 EPBRi-10K/C32/10-A 40 EPBRi-10K/B40/10 EPBRi-10K/B40/10-A EPBRi-10K/C40/10 EPBRi-10K/C40/10-A 6 EPBRi-10K/B6/30 EPBRi-10K/B6/30-A EPBRi-10K/C6/30 EPBRi-10K/C6/30-A 10 EPBRi-10K/B10/30 EPBRi-10K/B10/30-A EPBRi-10K/C10/30 EPBRi-10K/C10/30-A 13 EPBRi-10K/B13/30 EPBRi-10K/B13/30-A EPBRi-10K/C13/30 EPBRi-10K/C13/30-A 16 EPBRi-10K/B16/30 EPBRi-10K/B16/30-A EPBRi-10K/C16/30 EPBRi-10K/C16/30-A 30mA 20 EPBRi-10K/B20/30 EPBRi-10K/B20/30-A EPBRi-10K/C20/30 EPBRi-10K/C20/30-A Type AC 25 EPBRi-10K/B25/30 EPBRi-10K/B25/30-A EPBRi-10K/C25/30 EPBRi-10K/C25/30-A 32 EPBRi-10K/B32/30 EPBRi-10K/B32/30-A EPBRi-10K/C32/30 EPBRi-10K/C32/30-A 40 EPBRi-10K/B40/30 EPBRi-10K/B40/30-A EPBRi-10K/C40/30 EPBRi-10K/C40/30-A 5 6 EPBRi-10K/B6/100 EPBRi-10K/B6/100-A EPBRi-10K/C6/100 EPBRi-10K/C6/100-A 10 EPBRi-10K/B10/100 EPBRi-10K/B10/100-A EPBRi-10K/C10/100 EPBRi-10K/C10/100-A 13 EPBRi-10K/B13/100 EPBRi-10K/B13/100-A EPBRi-10K/C13/100 EPBRi-10K/C13/100-A 16 EPBRi-10K/B16/100 EPBRi-10K/B16/100-A EPBRi-10K/C16/100 EPBRi-10K/C16/100-A 100mA 20 EPBRi-10K/B20/100 EPBRi-10K/B20/100-A EPBRi-10K/C20/100 EPBRi-10K/C20/100-A 25 EPBRi-10K/B25/100 EPBRi-10K/B25/100-A EPBRi-10K/C25/100 EPBRi-10K/C25/100-A 32 EPBRi-10K/B32/100 EPBRi-10K/B32/100-A EPBRi-10K/C32/100 EPBRi-10K/C32/100-A 40 EPBRi-10K/B40/100 EPBRi-10K/B40/100-A EPBRi-10K/C40/100 EPBRi-10K/C40/100-A 6 EPBRi-10K/B6/300 EPBRi-10K/B6/300-A EPBRi-10K/C6/300 EPBRi-10K/C6/300-A Type A 10 EPBRi-10K/B10/300 EPBRi-10K/B10/300-A EPBRi-10K/C10/300 EPBRi-10K/C10/300-A 13 EPBRi-10K/B13/300 EPBRi-10K/B13/300-A EPBRi-10K/C13/300 EPBRi-10K/C13/300-A 16 EPBRi-10K/B16/300 EPBRi-10K/B16/300-A EPBRi-10K/C16/300 EPBRi-10K/C16/300-A 300mA 20 EPBRi-10K/B20/300 EPBRi-10K/B20/300-A EPBRi-10K/C20/300 EPBRi-10K/C20/300-A 25 EPBRi-10K/B25/300 EPBRi-10K/B25/300-A EPBRi-10K/C25/300 EPBRi-10K/C25/300-A 32 EPBRi-10K/B32/300 EPBRi-10K/B32/300-A EPBRi-10K/C32/300 EPBRi-10K/C32/300-A 40 EPBRi-10K/B40/300 EPBRi-10K/B40/300-A EPBRi-10K/C40/300 EPBRi-10K/C40/300-A <!-- source-page:6 --> EPBRi Series Residual Current Circuit Breakers with Overcurrent Protection Curves Breaking time of residual current Wiring (The suitable conductors should be used for connection,see table below for relative parameters) Features Switching and isolation function. Protection against overload and short-circuit currents. Protection against the effects of sinusoidal alternating earth fault currents. Protection against indirect contacts and additional protection against direct contacts. Protection against fire hazard caused by insulation faults. Used in residential building and distribution boards. Overall and mounting dimensions EPBRi | Max.breaking time | | | | | | | --- | --- | --- | --- | --- | --- | | In(A) | IΔn(A) | IΔn | 2 IΔn | 5 IΔn | 5-500A | | 6-40 | 0.01,0.03,0.1,0.3 | 0.1s | 0.08s | 0.04s | 0.04s | | Rated current In (A) | Cross section area s(mm2) | Tightening torque(N.m) | | --- | --- | --- | | 6 | 1 | M5 2.0 M4 1.2 | | 10 | 1.5 | | | 16-20 | 2.5 | | | 25 | 4 | | | 32 | 6 | | | 40 | 10 | |
