# SGE1-D Series

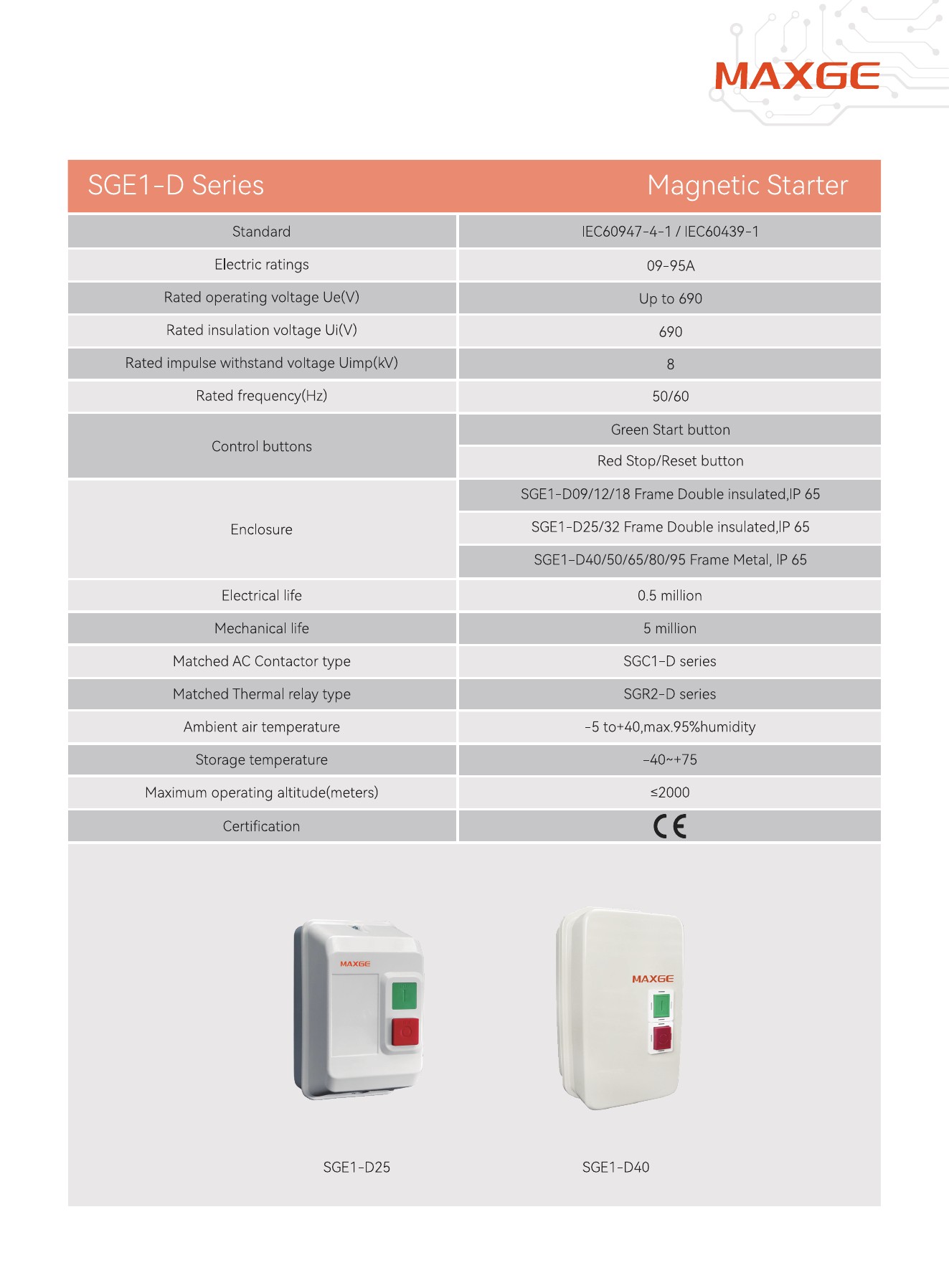

MAXGE SGE1-D Series Magnetic Starter Standard IEC60947-4-1/IEC60439-1 Electric ratings 09-95A Rated operating voltage Ue(V) Up to 690 Rated insulation voltage Ui(V) 690 Rated impulse withstand voltage Uimp(kV) 8 Rated frequency(Hz) 50/60 Green Start button Control buttons Red Stop/Reset button SGE1-D09/12/18 Frame Double insulated，IP 65 Enclosure SGE1-D25/32 Frame Double insulated，IP 65 SGE1-D40/50/65/80/95 Frame Metal， IP 65 Electrical life 0.5million Mechanical life 5million Matched AC Contactor type SGC1-D series Matched Thermal relay type SGR2-D series Ambient air temperature -5 to+40，max.95%humidity Storage temperature -40~+75 Maximum operating altitude(meters) ≤2000 Certification CE MAXGE MAXGE SGE1-D25 SGE1-D40

MAXGE SGE1-D Series Magnetic Starter Matched items Rated power AC-3(KW) lype Thermal relay AC contactor 220/230V 380/400V 415V 440V 660/690V SGE1-D25 SGR2-D13 SGC1-D25 5.5 11 11 11 15 SGE1-D32 SGR2-D23 SGC1-D32 7.5 15 15 15 18.5 2x05.5 PE16 PE13 MAXGC 3 135 2XPE16 142 101 Matched items Rated power AC-3(KW) Type Thermal relay AC contactor 220/230V 380/400V 415V 440V 660/690V SGE1-D40 SGR2-D33 SGC1-D40 11 18.5 22 22 30 SGE1-D50 SGR2-D33 SGC1-D50 15 22 25 30 33 SGE1-D65 SGR2-D33 SGC1-D65 18.5 30 37 37 37 SGE1-D80 SGR2-D33 SGC1-D80 22 37 45 45 45 SGE1-D95 SGR2-D33 SGC1-D95 25 45 45 45 45 2xPE29 MAXGE 十 品 京 十 312 PE13 195
