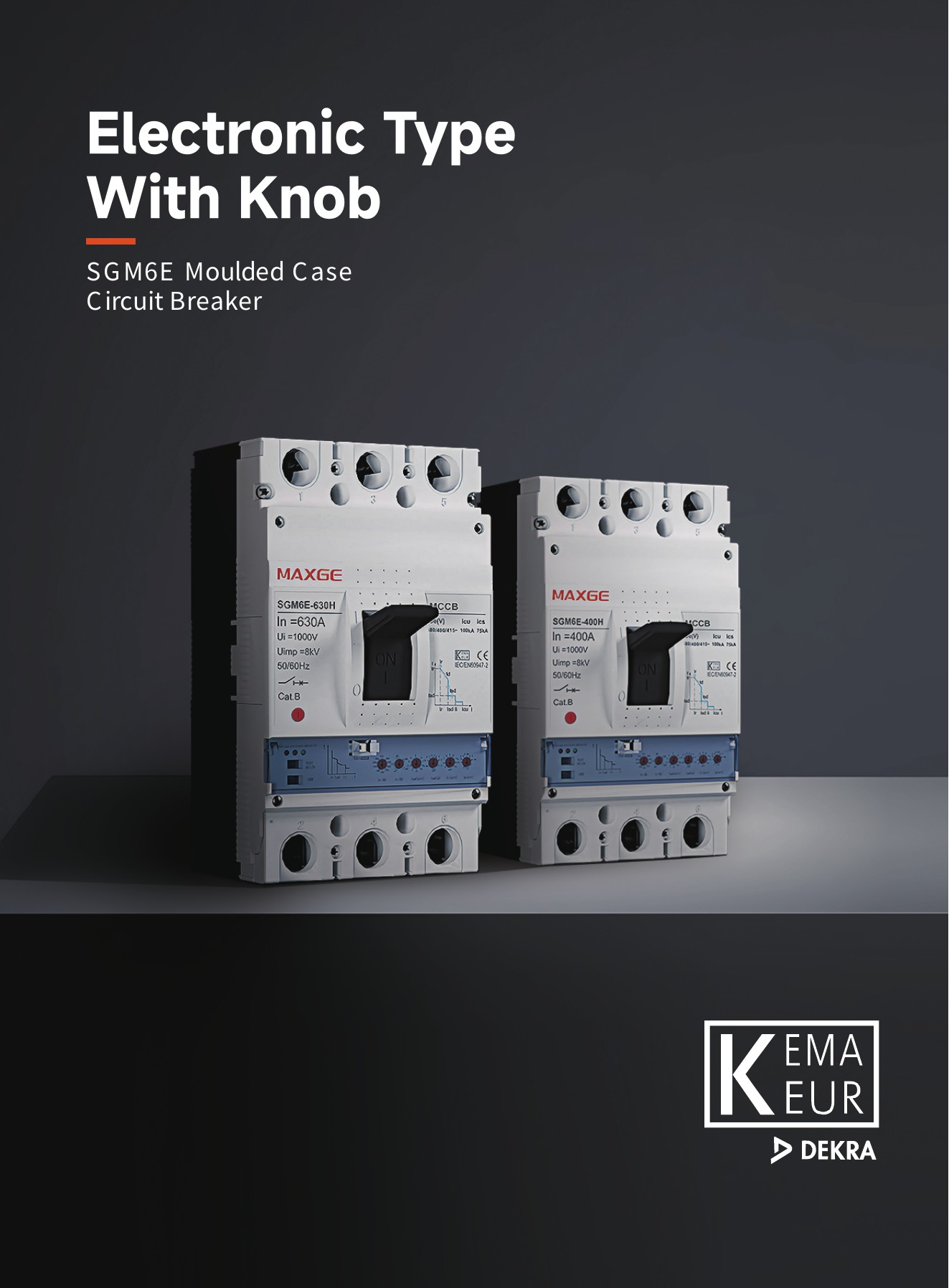

# SGM6e-800-1000 <!-- source-page:1 --> Electronic Type With Knob SGM6E Moulded Case Circuit Breaker <!-- source-page:2 --> Ratings And Specifications Frame Size Model SGM6E-800 SGM6E-1000 Number of poles 3,4 Rated current(A) In Standard IEC60947-2 Reference temperature 40℃/55℃ Rated operational voltage 380/400/415V AC Rated insulation voltage Ui (V) 1000 Rated impluse withstand voltage Uimp (kV) 8 Mention Selectivity category B Breaking capacity level Rated ultimate short-circuit breaking capacity Icu(kA) Rated service short-circuit breaking capacity Ics(kA) lcu=Ics(kA) Mechanical Endurance Electrical Endurance Installation 800 3P controller 800 4P controller 1000 3P/4P controller For SGM6E-1000:630,800,1000 M 85 60 60 Electronic Type With Knob 800/1000 For SGM6E-800:630,800 2500 500 Auxiliary contact(OF) Alarm switch(SD) Shunt tirp(MX) Under-voltage release(MN) AC Motor Mechanism Extended Rotary Handle H 100 75 75 <!-- source-page:3 --> Product Dimension Drawing SGM6E 250,400,630 800/1000（3P/4P) SGM6/6S/6SM/6E 800/1000（3P/4P） Electronic Type With Knob Thermal & Magnetic Adjustable Type 800A3P4P Thermal & Magnetic Adjustable Type 1000A3P4P Electronic Type 800/1000A3P4P | SGM6 Dimensions mm(L×W×H) | | | | | | | --- | --- | --- | --- | --- | --- | | Frame Size | | 800/1000 | | | | | 3P | Length | 280 | 4P | Length Width Height | 280 | | | Width | 210 | | | 280 | | | Height | 155 | | | 155 | <!-- source-page:4 --> [No machine-readable text on this page.]
