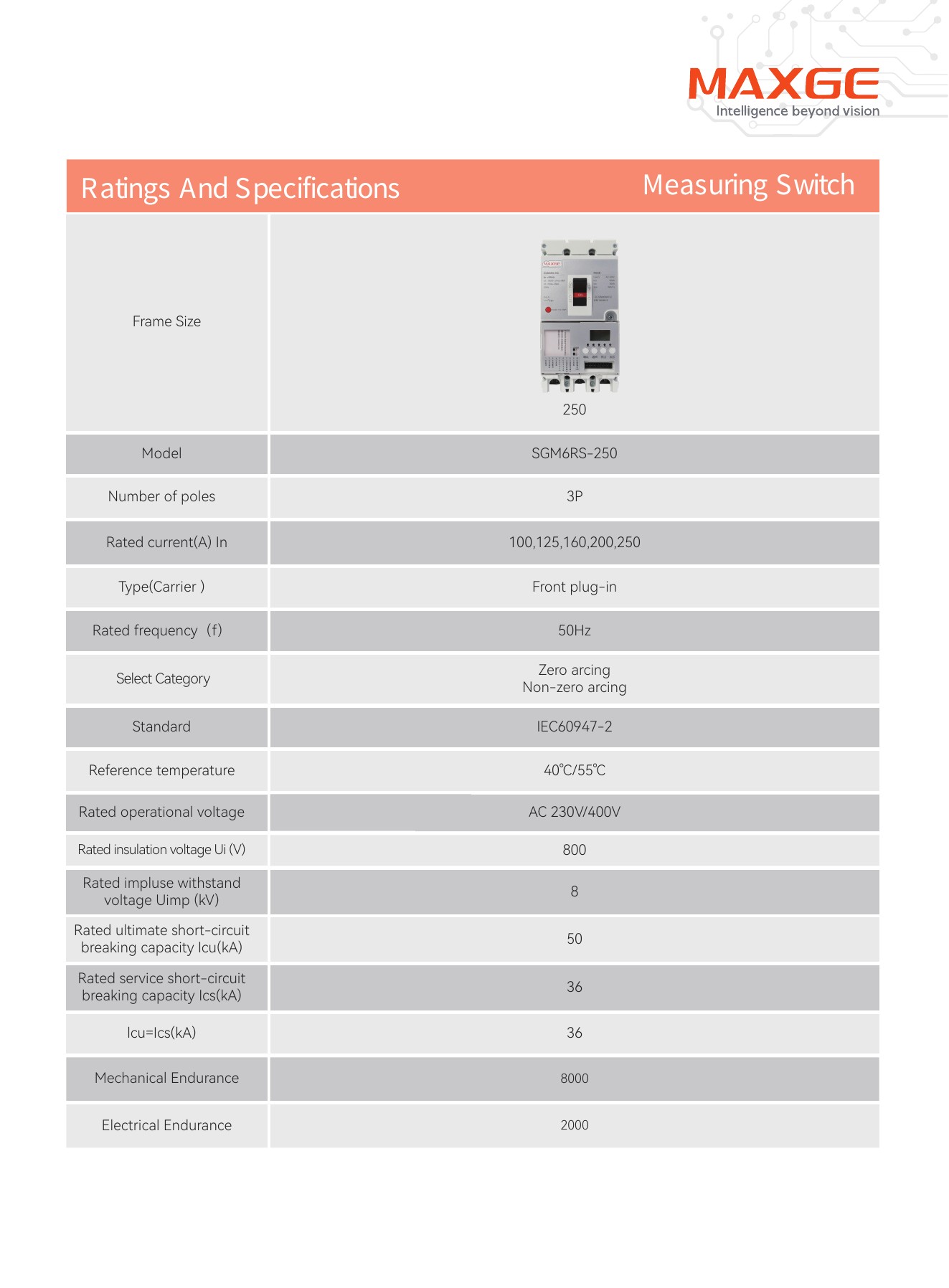

# SGM6RS-250 <!-- source-page:1 --> Ratings And Specifications Frame Size Model Number of poles Rated current(A) In Type(Carrier ) Rated frequency（f） Select Category Standard Reference temperature Rated operational voltage Rated insulation voltage Ui (V) Rated impluse withstand voltage Uimp (kV) Rated ultimate short-circuit breaking capacity Icu(kA) Rated service short-circuit breaking capacity Ics(kA) lcu=Ics(kA) Mechanical Endurance Electrical Endurance Measuring Switch 250 SGM6RS-250 3P 100,125,160,200,250 Front plug-in 50Hz Zero arcing Non-zero arcing IEC60947-2 40℃/55℃ AC 230V/400V 800 8 50 36 36 8000 2000 <!-- source-page:2 --> Product Dimension Drawing Measuring Switch SGM6RS-250 35±0.5 4- 4.2 115max 95max Zero arcing 210max 170 24 35±0.5 35±0.5 107 SGM6RS-250 35±0.5 4- 4.2 115max 95max Non-zero arcing 210max 189.50 170 24 35±0.5 35±0.5 107
