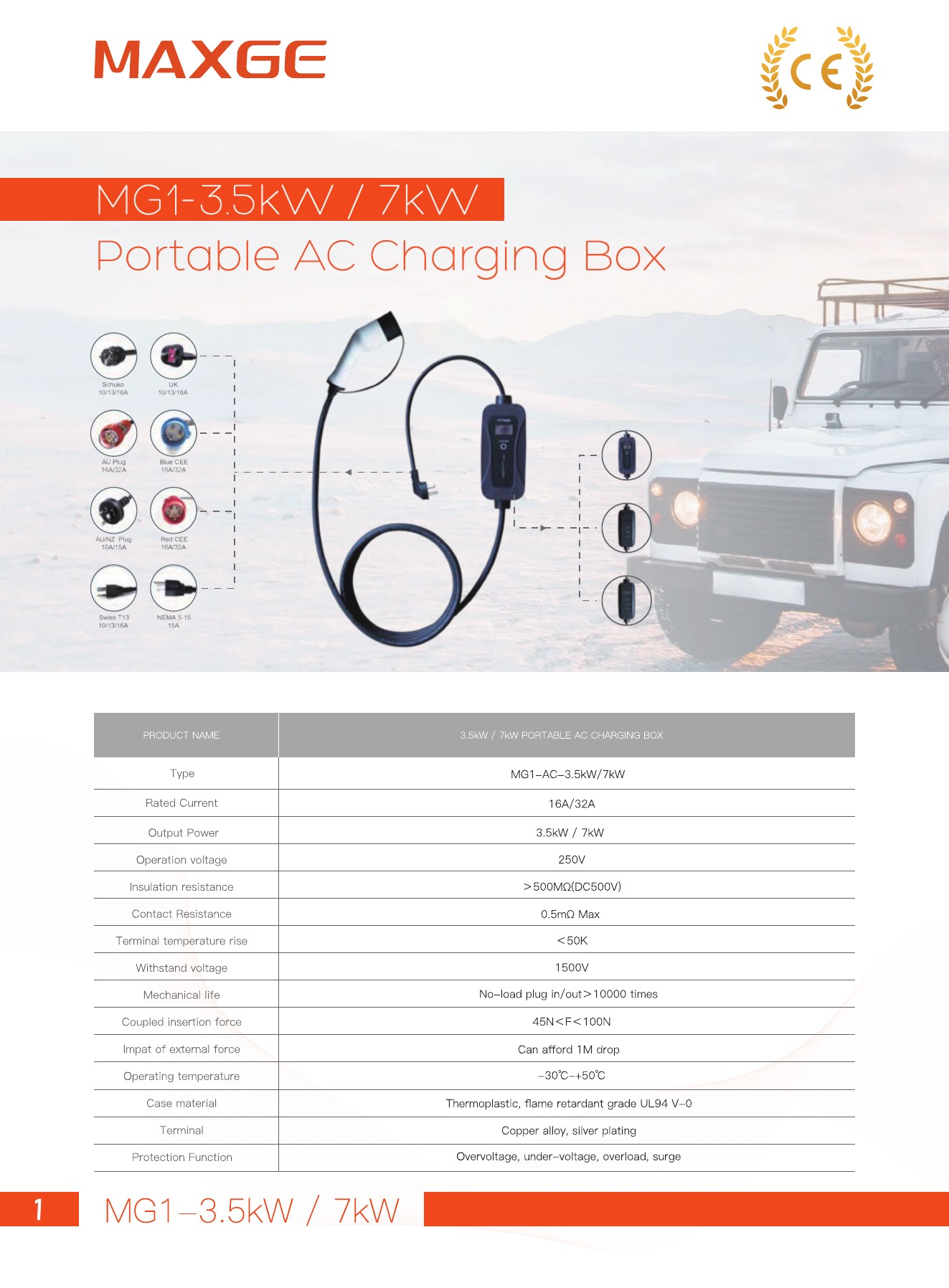

# MG1 Portable AC Charging Box <!-- source-page:1 --> MAXGE CE MG1-3.5kW/7kW Portable AC Charging Box Schuko UK 10/13/160 10/13/16A AU Plug Bloe CEE 16A/32A 16A/32A AU/NZ Plug Red CEE 10A/15A 16A/32A Swis8 T13 NEMA5-15 10/13/16A 15 5A PRODUCT NAME 3.5kW/7KW PORTABLE AC CHARGING BOX Type MG1-AC-3.5kW/7kW Rated Current 16A/32A Output Power 3.5kW/7kW Operation voltage 250V Insulation resistance >500MQ(DC500V) Contact Resistance 0.5mQMax Terminal temperature rise <50K Withstand voltage 1500V Mechanical life No-load plug in/out>10000 times Coupled insertion force 45N<F<100N Impat of external force Can afford 1M drop Operating temperature -30℃-+50℃ Case material Thermoplastic， flame retardant grade UL94V-0 Terminal Copper alloy， silver plating Protection Function Overvoltage，under-voltage， overload， surge 1 MG1-3.5kW/7kW
