# SGDB2

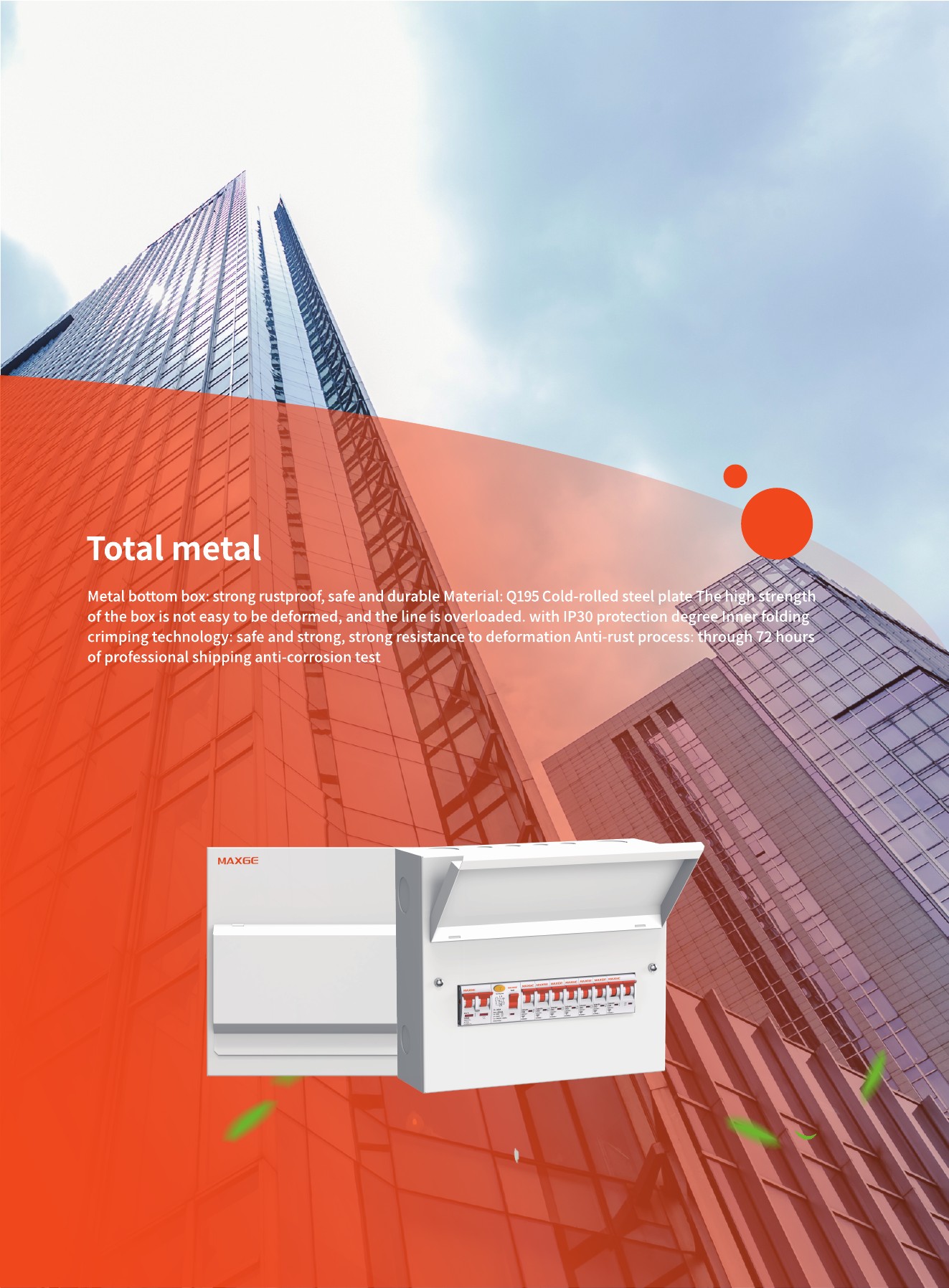

三 Totalmetal Metal bottom box： strong rustproof， safe and durable Material： Q195 Cold-rolled steel plate The high strong th of the box is ne ox is not easy to b sy to be deformed， and the line is overloaded. with IP30 protection degree inner folding crimping technology： safe and strong， strong resistance to deformation Anti-rust process： through 72 hours of professional shipping anti-corrosion test MAXGE

MAXGE SGDB2 Series Distribution Box Technicaldata Standard IEC60439-3 Approval CE Modules(No.) 4，6，8，10，12，14，16，18，22 Rated current ln(A) 63，100，125 Color Grey Color of door Grey Mounting type Surface Degree of protection IP30 Material Iron Fire resistance 650°C/30s Ambient temperature(C) -5-+40，max.95%humidity Storage temperature(C) -40~+75°℃ MAXGE -6-

MAXGE SGDB2 Number Plastic base Rated Current In(A) Color of door ofmodule 4 SGDB2-04A 63/100/125A Grey 6 SGDB2-06A 63/100/125A Grey 8 SGDB2-08A 63/100/125A Grey 10 SGDB2-10A 63/100/125A Grey 12 SGDB2-212A 63/100/125A Grey 14 SGDB2-214A-C 63/100/125A Grey 16 SGDB2-216A-D 63/100/125A Grey 18 SGDB2-218A-D 63/100/125A Grey 22 SGDB2-222A-C 63/100/125A Grey (5 10 6 12 8 ( 1.Plastic Strip Support 2.Plastic Strip 3.Flat Semi-Pecessed Hole Screw 4.Brass Terminal Block 5.Round M-Shape Screw 6.Din Rail Support on Left and Right 7.Din Rail 8.M4x4 9.Screw 10.Hinge 11.Metal Front Cover Screw and Spring 12.PCWindow -7-

MAXGE Metal Base Dimension H W Specification 116 260 150 4ways 116 260 186 6ways 116 260 222 8ways 116 260 258 10ways 116 260 294 12ways 116 260 330 14ways 116 260 366 16ways 116 260 402 18ways 116 260 474 22ways NH W 一 EEEEEE L MAXGE -8-

MAXGE PRODUCT DISPLAY (TYPE A) W oeco 品。 L Specification W H Board SGDB205A(5ways) 148 260 116 ISGDB205A SGDB208A(8ways) 222 260 116 SGDB208A SGDB210A(10ways) 258 260 116 SGDB210A SGDB212A(12ways) 294 260 116 SGDR212A SGDB214A(14ways) 330 260 116 SGDB214A 543 SGDB216A(16ways) 366 260 116 SGDB216A SGDB218A(18ways) 402 260 116 SGDB218 SGDB222A(22ways) 474 260 116 U SGDB222A -9-

MAXGE PRODUCT DISPLAY(TYPE A1) e e W 市 小 ceco o 台 Specification L W H Board SGDB210A(10ways) 148 260 116 SGDB210A-1 SGDB212A(12ways) 222 260 116 SGDB212A-1 SGDB214A(14ways) 258 260 116 SGDB214A-： EI SGDB216A(16ways) 294 260 116 SGDB216A-1 SGDB218A(18ways) 330 260 116 SGDB218A-1 010013101010 SGDB222A(22ways) 366 260 116 SGDB222A-1 -10-

MAXGE PRODUCTDISPLAY (TYPE B) NH W L Specification W H Board 国国国国国 SGDB214A(14ways) 330 260 116 FUUUU UUU SGDB214B EAR1 品 国 SGDB216A(16ways) 366 260 116 UTUUUIU FUUUIUIU SGDB216B E3812 121 品 SGDB218A(18ways) 402 260 116 FUUURUUU UUUUUU SGDB218B mD SGDB222A(22ways) 474 260 116 品 SGDB222B -11-

MAXGE PRODUCTDISPLAY (TYPE C) W 1 0 L Specification W H Board SGDB214A(14ways) 330 260 116 UUUUUU UTUIU SGDB214C 34 661121 SGDB218A(18ways) 402 260 116 一 UU UUU 巴 UUUUU s SGDB2180 SGDB222A(22ways) 474 260 116 UUUUUT UUUUUU SGDB222C -12-

MAXGE PRODUCT DISPLAY(TYPE D1) W 6 L Specification W H Board SGDB214A(14ways) 330 260 116 ULL UUL S6DB214D-1 1 SGDB216A(16ways) 366 260 116 SGD32150- SGDB218A(18ways) 402 260 116 LUUUUU ULLUU SGD8218D-1 hype1：6+5+3 type25+5 四 JRO SGDB222A(22ways) 474 260 116 aaUU SGDB2220-1 -13-

MAXGE PRODUCT DISPLAY(TYPE D) H e e W e e ce...o. 000 L Specification W H Board 1 SGDB218A(18ways) 402 260 116 SGDB218D -14-
