# SGSL-1 Series

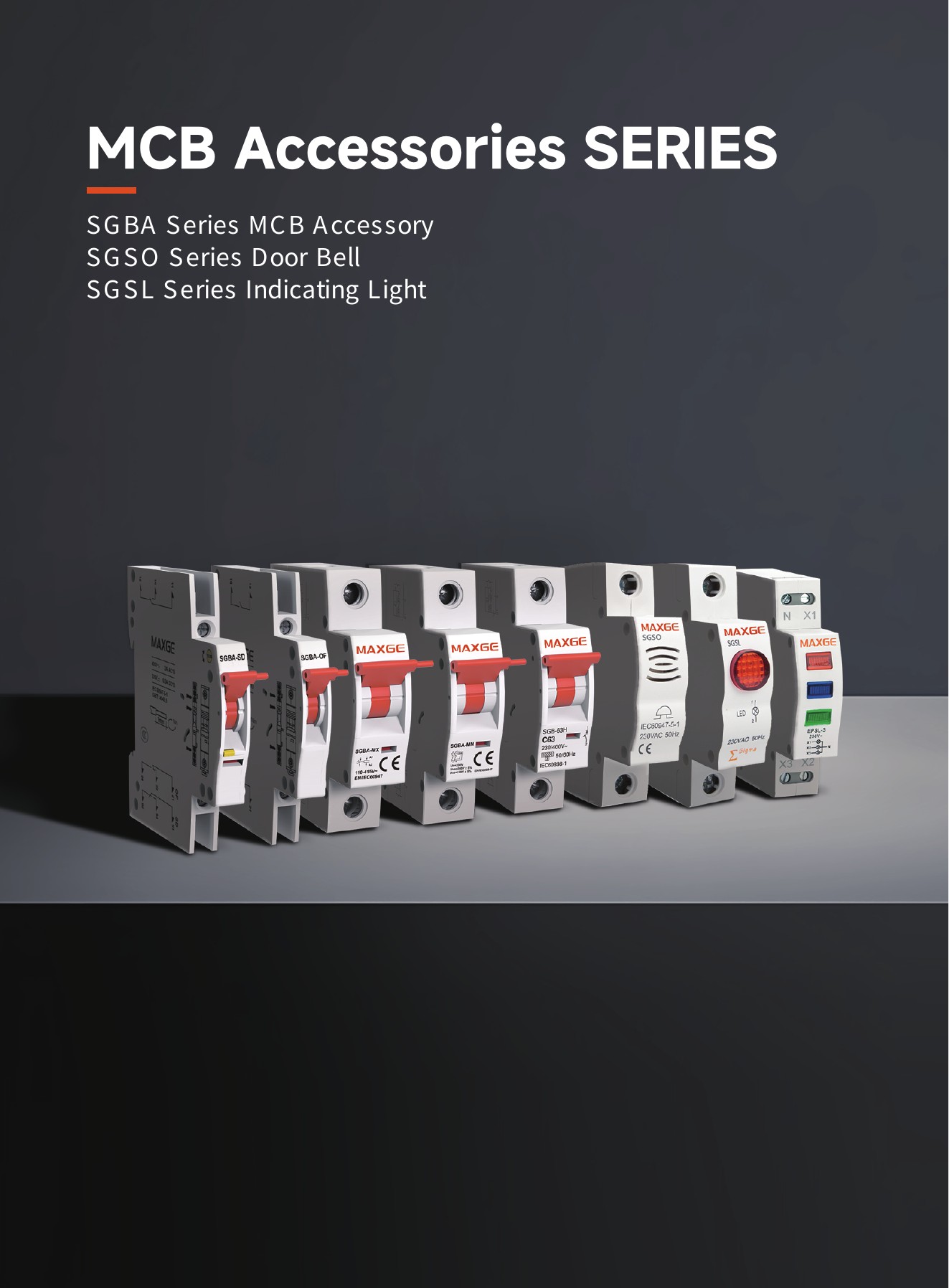

MCB Accessories SERIES SGBA Series MCB Accessory SGSO Series Door Bell SGSL Series Indicating Light

SGSL-1 Series Indicating Light

| Standard | EN/IEC60947-5-1 |
| --- | --- |
| Rated current AC12(A) | 20 |
| Electric ratings | Up to AC 230 50/60Hz |
| Rated insulation Voltage Ui(V) | 500 |
| Illumination | LED,Incandescence,neon |
| Life | Incandescence lamp ≥1000h Neon lamp ≥2000h LED ≥30000h |
| Ambient temperature(°C) | -5~+40,max.95% humidity |
| Storage temperature(°C) | -40~+75 |
| Connection capacity(mm2) | 1-16 |
| Color | Green,red,yellow,blue,white |
| Type of terminal | Pin type and Lug type |
| Protection degree | IP20 |
| Mounting | 35mm DIN rail |
| SGSL-1 Red SGSL-1 Yellow SGSL-1 Green |  |

SGSL-1 Series Indicating Light

|  | Rated voltage (V) | Code NO. | Illumination | color | Packing unit |
| --- | --- | --- | --- | --- | --- |
| SGSL-1 Red SGSL-1 Yellow SGSL-1 Green | AC/DC 6.3V | SGSL-1-G-L6 | Neon incandescence LED | Green | 12 |
|  | AC/DC 12V | SGSL-1-G-L12 |  |  |  |
|  | AC/DC 24V | SGSL-1-G-L24 |  |  |  |
|  | AC/DC 110V | SGSL-1-G-L110 |  |  |  |
|  | AC/DC 230V | SGSL-1-G-L230 |  |  |  |
|  | AC/DC 6.3V | SGSL-1-R-L6 | Neon incandescence LED | Red | 12 |
|  | AC/DC 12V | SGSL-1-R-L12 |  |  |  |
|  | AC/DC 24V | SGSL-1-R-L24 |  |  |  |
|  | AC/DC 110V | SGSL-1-R-L110 |  |  |  |
|  | AC/DC 230V | SGSL-1-R-L230 |  |  |  |
|  | AC/DC 6.3V | SGSL-1-Y-L6 | Neon incandescence LED | Yellow | 12 |
|  | AC/DC 12V | SGSL-1-Y-L12 |  |  |  |
|  | AC/DC 24V | SGSL-1-Y-L24 |  |  |  |
|  | AC/DC 110V | SGSL-1-Y-L110 |  |  |  |
|  | AC/DC 230V | SGSL-1-Y-L230 |  |  |  |
|  | AC/DC 6.3V | SGSL-1-B-L6 | Neon incandescence LED | Blue | 12 |
|  | AC/DC 12V | SGSL-1-B-L12 |  |  |  |
|  | AC/DC 24V | SGSL-1-B-L24 |  |  |  |
|  | AC/DC 110V | SGSL-1-B-L110 |  |  |  |
|  | AC/DC 230V | SGSL-1-B-L230 |  |  |  |
|  | AC/DC 6.3V | SGSL-1-W-L6 | Neon incandescence LED | White | 12 |
|  | AC/DC 12V | SGSL-1-W-L12 |  |  |  |
|  | AC/DC 24V | SGSL-1-W-L24 |  |  |  |
|  | AC/DC 110V | SGSL-1-W-L110 |  |  |  |
|  | AC/DC 230V | SGSL-1-W-L230 |  |  |  |
