# SGLM Series

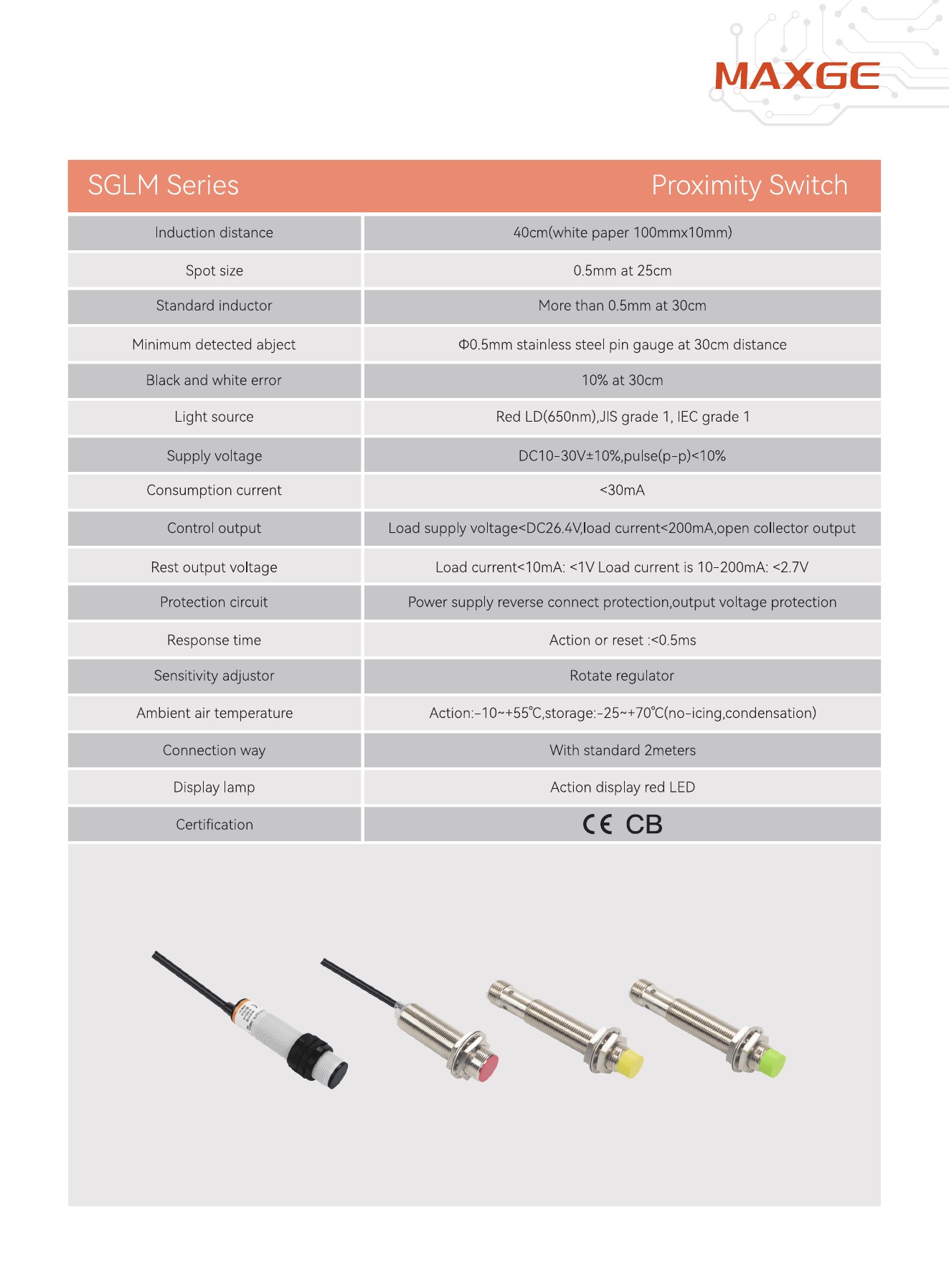

MAXGE SGLM Series Proximity Switch Induction distance 40cm.white paper 100mmx10mm) Spot size 0.5mm at 25cm Standard inductor More than 0.5mm at 30cm Minimum detected object 中0.5mm stainless steel pin gauge at 30cm distance Black and white error 10%at 30cm Light source Red LD(650nm)，JIS grade 1， IEC grade 1 Supply voltage DC10-30V±10%，pulse(p-p)<10% Consumption current <30mA Control output Load supply voltage<DC26.4V，load current<200mA，open collector output Rest output voltage Load current<10mA：<1VLoad current is 10-200mA：<2.7V Protection circuit Power supply reverse connect protection，output voltage protection Response time Action or reset：<0.5ms Sensitivity adjustor Rotate regulator Ambient air temperature Action：-10~+55°C，storage：-25~+70°C(no-icing，condensation) Connection wav With standard 2meters Display lamp Action display red LED Certification CE CB

MAXGE SGLM Series Proximity Switch Structural category： Cylinder type tno SGLM5 SGLM6 SGLM06 SGLM8 4 Overall dimensions M5x1 Detection distance 1mm 1mm 1mm 1mm NO SGLM5-3001PA SGLM6-3001NA SGLM06-3001NA SGLM8-3001NA DPN NC SGLM6-3001NB SGLM8-3001NB NO+NC DC NO SGLM5-3001PA SGLM6-3001PA SGLM06-3001PA SGLM8-3001PA 6~36 PNP NC SGLM6-3001PB SGLM8-3001PB 一c刀5 VDC NO+NC Iwo wire NO SGLM6-3001LA SGLM8-3001LA system NC SGLM6-3001LB SGLM8-3001LB SCR NO AC Control- NC 90~250 lable silicon NO+NC VAC Relay output Detection distance 1.5mm 2mm NO SGLM6-3002NA SGLM8-3002NA DPN NC SGLM6-3002NB SGLM8-3002NB NO+NC DC NO SGLM6-3002PA SGLM8-3002PA Z05二m一c刀5 6~36 PNP NC SGLM6-3002PB SGLM8-3002PB VDC NO+NC Two wire NO SGLM6-3002LA SGLM8-3002LA system NC SGLM6-3002LB SGLM8-3002LB SCR NO SGLM8-2002A AC Control- NC SGLM8-2002B 90~250 lable silicon NO+NC VAC Relay output Output DC 100mA 150mA 100mA 150mA current SCR/Relay 150mA Output voltage drop DC/AC DC<3VAC<10V Consumption current DC<15mAAC<10mA Standard detected object 6x6x1(A3 iron) 8x8x1(A3 iron) 8x8x1(A3 iron) 8x8x1(A3 iron) Repeated precision 0.01 0.01 0.01 0.01 DC/AC Response frequency 500Hz 500Hz 500Hz 500Hz/25Hz Working environment temperature 一 -25℃~+70℃ -25℃~+70℃ -25C~+70℃ -25℃~+70℃ Insulation resistance ≥50MQ ≥30MQ ≥50MQ ≥50MQ Shell material Metal Stainless steel Metal Metal Protection grade IP67 IP67 IP67 IP67

MAXGE SGLM Series Proximity Switch 1/ SGLM12 SGLM14 SGLM18 SGLM20 SGLM22 动作用示 动作指平灯 中 ￥ 动作机示灯 国鱼一 二x M12*1 2只为垫面 内垫图 122×1.5 请作指示 示灯 0 动作招示 动作招示灯 30 -M14X1 A18K1 2x1 x1.5 2mm 3mm 5mm 7mm SGLM12-3002NA SGLM14-3003NA SGLM18-3005NA SGLM22-3007NA SGLM12-3002NB SGLM14-3003NB SGLM18-3005NB SGLM22-3007NB SGLM12-3002NC SGLM14-3003NC SGLM18-3005NC SGLM22-3007NC SGLM12-3002PA SGLM14-3003PA SGLM18-3005PA SGLM22-3007PA SGLM12-3002PB SGLM14-3003PB SGLM18-3005PB SGLM22-3007PB SGLM12-3002PC SGLM14-3003PC SGLM18-3005PC SGLM22-3007PC SGLM12-3002LA SGLM14-3003LA SGLM18-3005LA SGLM22-3007LA SGLM12-3002LB SGLM14-3003LB SGLM18-3005LB SGLM22-3007LB SGLM12-2002A SGLM14-2003A SGLM18-2005A SGLM22-2007A SGLM12-2002B SGLM14-2003B SGLM18-2005B SGLM22-2007B SGLM18-2005C SGLM22-2007C 4mm 5mm 8mm 10mm 10mm SGLM12-3004NA SGLM14-3005NA SGLM18-3008NA SGLM20-3010NA SGLM22-3010NA SGLM12-3004NB SGLM14-3005NB SGLM18-3008NB SGLM20-3010NB SGLM22-3010NB SGLM12-3004NC SGLM14-3005NC SGLM18-3008NC SGLM20-3010NC SGLM22-3010NC SGLM12-3004PA SGLM14-3005PA SGLM18-3008PA SGLM20-3010PA SGLM22-3010PA SGLM12-3004PB SGLM14-3005PB SGLM18-3008PB SGLM20-3010PB SGLM22-3010PB SGLM12-3004PC SGLM14-3005PC SGLM18-3008PC SGLM20-3010PC SGLM22-3010PC SGLM12-3004LA SGLM14-3005LA SGLM18-3008LA SGLM20-3010LA SGLM22-3010LA SGLM12-3004LB SGLM14-3005LB SGLM18-3008LB SGLM20-3010LB SGLM22-3010LB SGLM12-2004A SGLM14-2005A SGLM18-2008A SGLM20-2010A SGLM22-2010A SGLM12-2004B SGLM14-2005B SGLM18-2008B SGLM20-2010B SGLM22-2010B SGLM18-2008C SGLM20-2010C SGLM22-2010C 200mA 200mA 200mA 200mA 200mA 300mA 300mA 300mA 300mA/1A 300mA DC<3VAC<10V DC<15mAAC<10mA 15x15x1(A3 iron) 15x15x1(A3 iron) 18x18x1(A3 iron) 20x20x1(A3 iron) 22x22x1(A3 iron) 0.01 0.02 0.02 0.02 0.02 400Hz/25Hz 300Hz/25Hz 200Hz/25Hz 200Hz/25Hz 200Hz/25Hz -25℃~+75℃ -25℃~+75℃ -25℃~+75℃ -25℃~+75℃ -25C~+75℃ ≥50MQ ≥50MQ ≥50MQ ≥50MQ ≥50MQ Metal Metal Metal ABS Plastic Metal IP67 IP67 IP67 IP67 IP67
